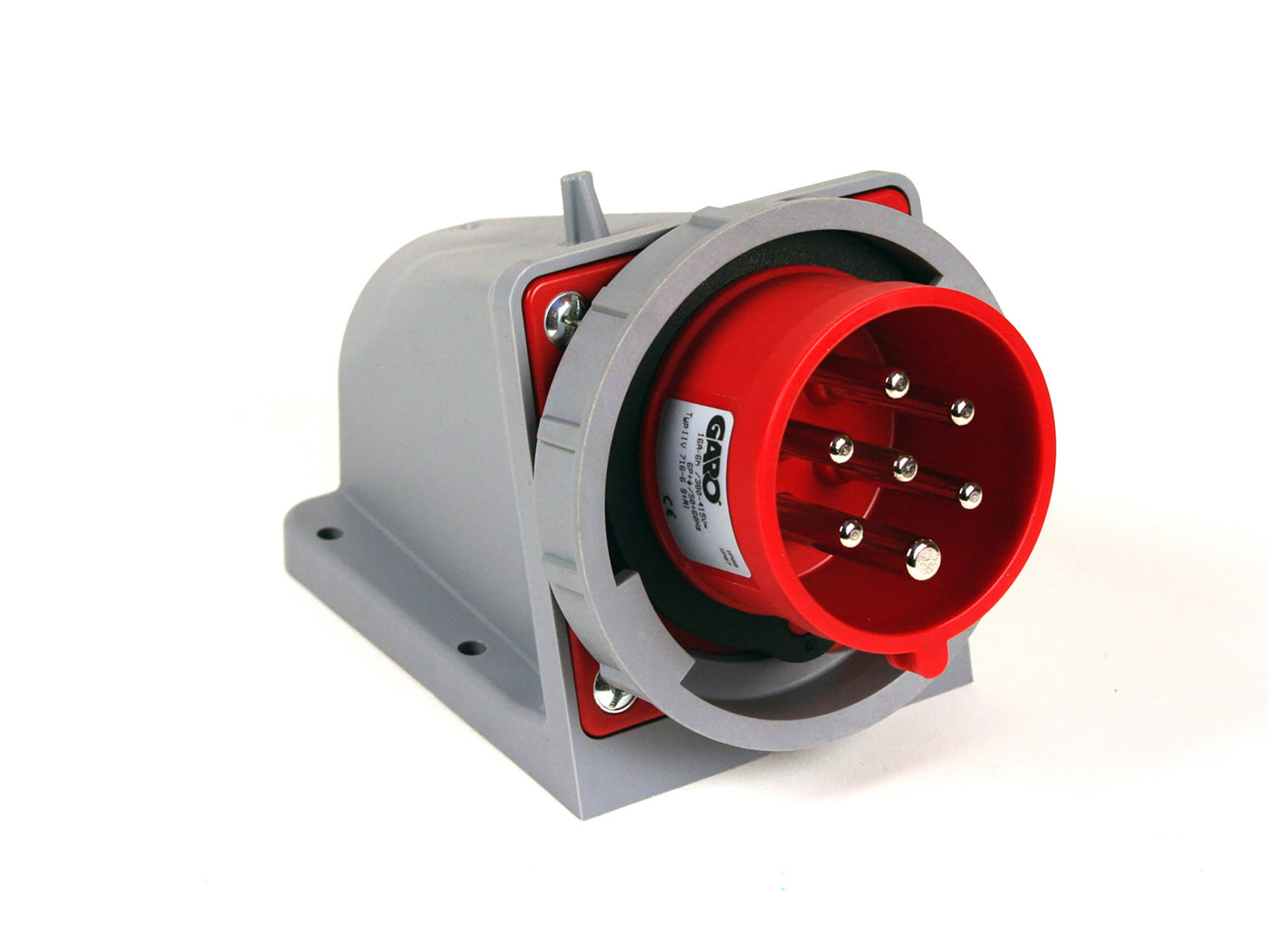

Flanged plugs wallmounting 7P 32A IP67
Flanged plugs wallmounting 7P 32A IP67 Wall inlet basic 7-poles 32A 6h waterproof.
E-number
2425921
2425921
Article number
107761
107761
Type designation | IIV 732-6S+RI |
---|---|
Rated current [A] | 32 |
No.of Poles [pcs] | 7P |
Rated voltage [V AC] | 400 |
Frequency [Hz] | 50/60 |
Degree of protection [IP] | 67 |
Colour | Red |
Standard | Class 1 EN 60044-8 |
Width [mm] | 100 |
Height [mm] | 140 |
Depth [mm] | 102 |
Netweight [kg] | 0.36 |
Materials | Plastic |
Function | Basic |
Position of earth [h] | 6 |
Mounting method | Surface mounting |
RAL-nummer | RAL3000 |
Name | WALL INLET WT 7P 32A 6h |
---|---|
E-number | 2425921 |
Article number | 107761 |
