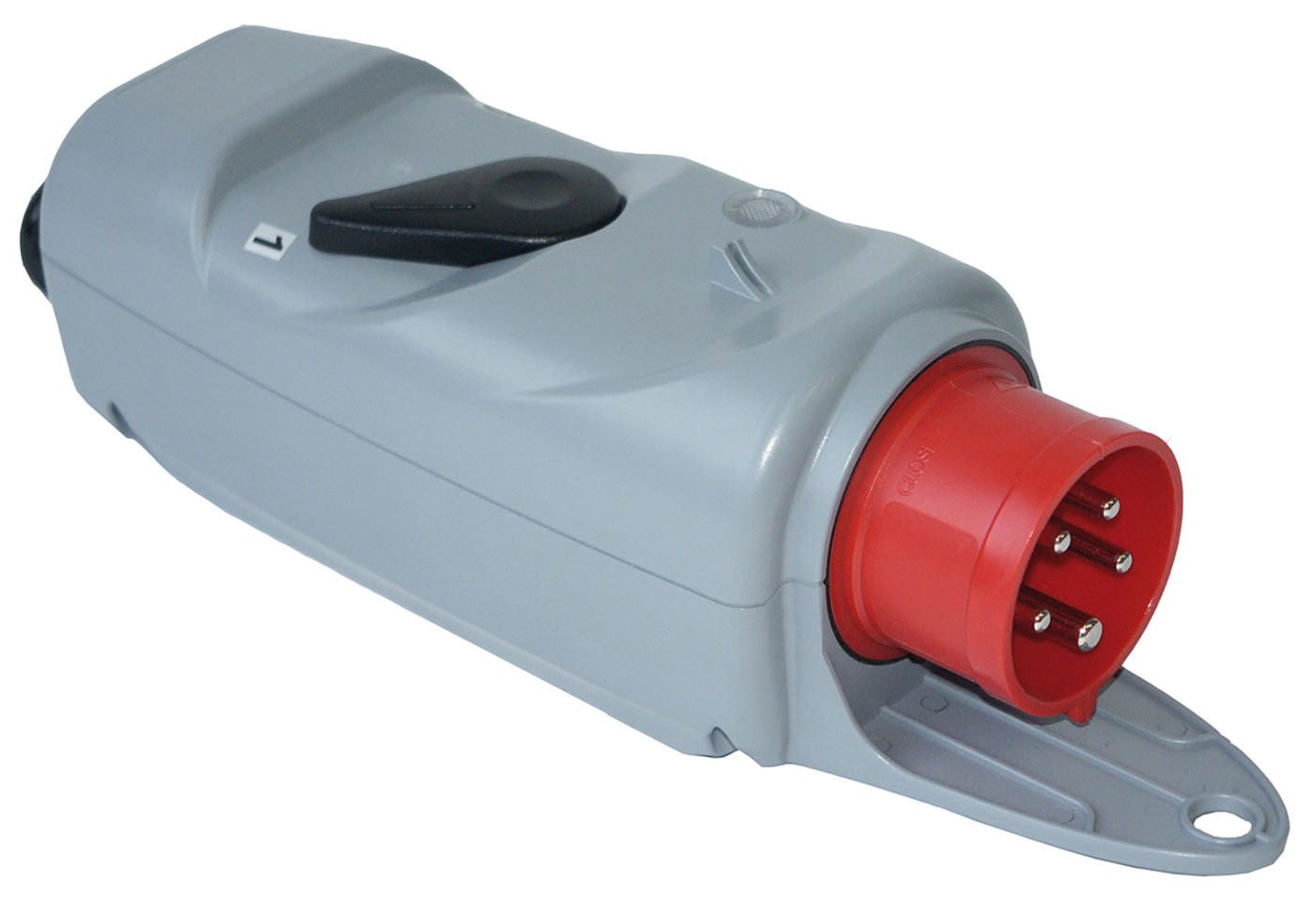

Motor protections for extension cord assembly
Adjustable motor protection to be installed on extension cord. The range of settings is between 10-16A. Including 32mm fitting for cable diameters of 12-21 mm ². Motor protection 5-poles 32A.
E-number
2425870
2425870
Article number
2425870
2425870
| Type designation | MT 32A-10-16 |
|---|---|
| Rated current [A] | 10-16 |
| No.of Poles [pcs] | 5 |
| Rated voltage [V AC] | 230/400 |
| Degree of protection [IP] | 44 |
| Wire flexible [mm²] | 2,5-10 |
| Colour | Grey |
| Standard | Class 1 EN 60044-8 |
| Width [mm] | 97 |
| Height [mm] | 288 |
| Depth [mm] | 95 |
| Netweight [kg] | 0.92 |
| Materials | Plastic |
| Function | Motorprotection |
| RAL-nummer | RAL7046 |
| Name | MOTOR PROTECTION 5P 32A |
|---|---|
| E-number | 2425870 |
| Article number | 2425870 |
