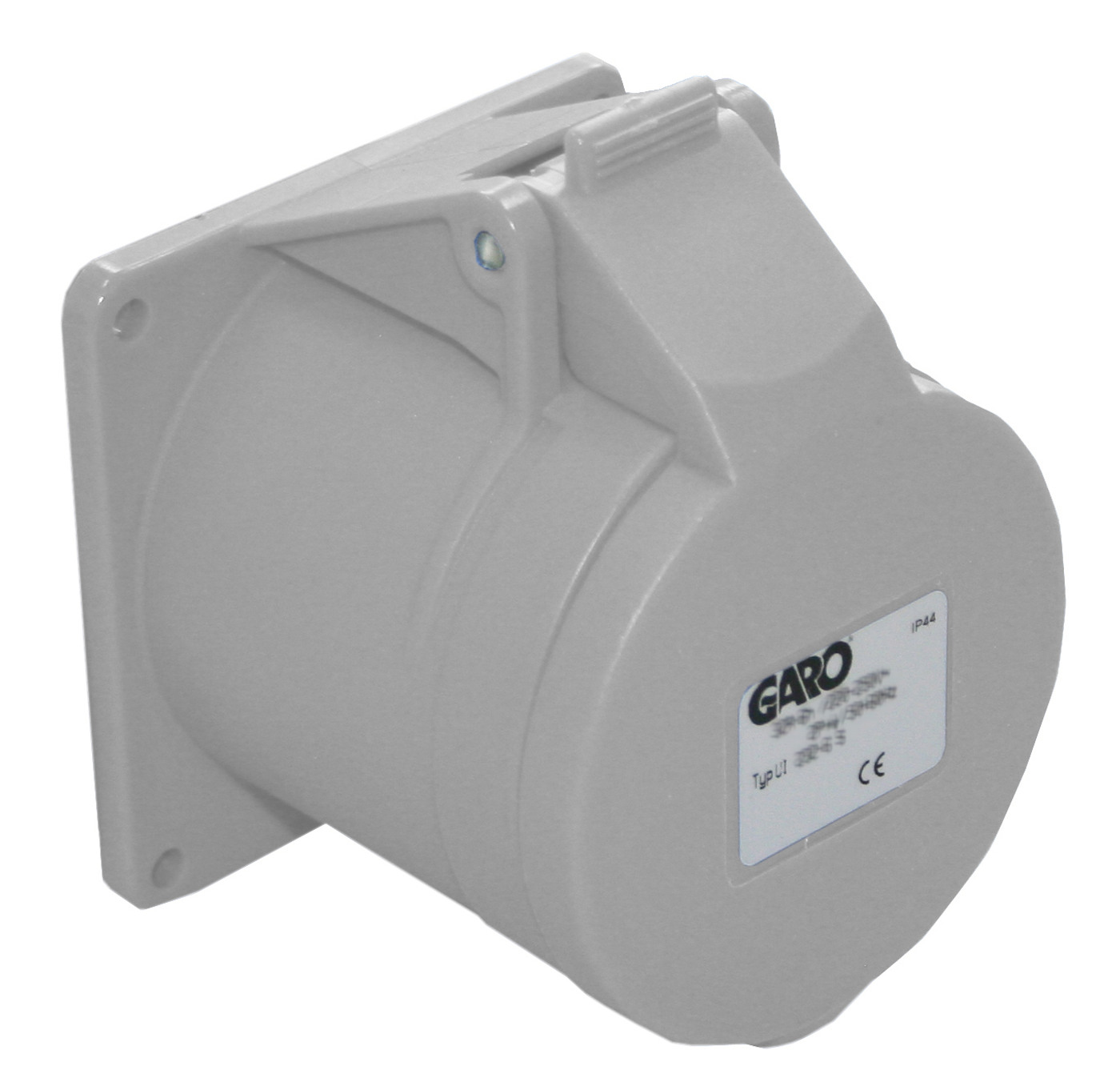

SOCKET STRAIGHT TT 3P 16A 3h

Flanged sockets Quick with straight mounting plate 16A IP44

Quick, our screwless range with quick connections that require no tools, just a simple push of the thumb. Socket 16A for recess mounting with straight mounting plate. Supplied including seal. Socket straight with quick connection 3-poles 16A 3h
E-number
2425526
Article number
2425526
Support
Rated current [A] 16
Degree of protection [IP] 44
Wire flexible [mm²] 1-2,5
Standard Class 1 EN 60044-8
Package size [pcs] 10
Depth [mm] 82
Materials Plastic
Location Recessed
Function Quick
Wire solid [mm²] 1-4
Name SOCKET STRAIGHT TT 3P 16A 3h
E-number 2425526
Article number 2425526
Type designation UI 216-3 Q
No.of Poles [pcs] 3/2P+E
Rated voltage [V AC] >50-250
Frequency [Hz] DC
Colour Grey
Width [mm] 75
Height [mm] 75
Netweight [kg] 0.11
Position of earth [h] 3

More variants of Flanged sockets Quick with straight mounting plate 16A IP44

E-number Article number Type designation No.of Poles [pcs] Rated voltage [V AC] Frequency [Hz] Colour Width [mm] Height [mm] Netweight [kg] Position of earth [h]
SOCKET STRAIGHT TT 3P 16A 2h 2425525 2425525 UI 216-2 Q 3/2P+E >50 >300-500 Green 75 75 0.11 2
SOCKET STRAIGHT TT 3P 16A 3h 2425526 2425526 UI 216-3 Q 3/2P+E >50-250 DC Grey 75 75 0.11 3
SOCKET STRAIGHT TT 3P 16A 4h 2425527 2425527 UI 216-4 Q 3/2P+E 100-130 50/60 Yellow 75 75 0.11 4
SOCKET STRAIGHT TT 3P 16A 6h 2425528 2425528 UI 216-6 Q 3/2P+E 200-250 50/60 Blue 70 70 0.11 6
SOCKET STRAIGHT TT 3P 16A 9h 2425529 2425529 UI 216-9 Q 3/2P+E 380-415 50/60 Red 75 75 0.11 9
SOCKET STRAIGHT TT 3P 16A 12h 2425530 2425530 UI 216-12 Q 3/2P+E Matning fr.isolertransf. 50/60 Grey 75 75 0.11 12
SOCKET STRAIGHT TT 4P 16A 2h 2425531 2425531 UI 316-2 Q 4/3P+E >50 >300-500 Green 75 75 0.13 2
SOCKET STRAIGHT TT 4P 16A 3h 2425532 2425532 UI 316-3 Q 4/3P+E 380-440 50/60 Red 75 75 0.13 3
SOCKET STRAIGHT TT 4P 16A 4h 2425533 2425533 UI 316-4 Q 4/3P+E 100-130 50/60 Yellow 75 75 0.13 4
SOCKET STRAIGHT TT 4P 16A 6h 2425534 2425534 UI 316-6 Q 4/3P+E 400 50/60 Red 75 75 0.13 6
SOCKET STRAIGHT TT 4P 16A 7h 2425535 2425535 UI 316-7 Q 4/3P+E 480-500 50/60 Black 75 75 0.13 7
SOCKET STRAIGHT TT 4P 16A 9h 2425536 2425536 UI 316-9 Q 4/3P+E 230 50/60 Blue 75 75 0.13 9
SOCKET STRAIGHT TT 4P 16A 10h 2425537 2425537 UI 316-10 Q 4/3P+E >50 100-300 Green 75 75 0.13 10
SOCKET STRAIGHT TT 4P 16A 11h 2425538 2425538 UI 316-11 Q 4/3P+E 440-460 60 Red 75 75 0.13 11
SOCKET STRAIGHT TT 5P 16A 2h 2425539 2425539 UI 416-2 Q 5/3PN+E >50 >300-500 Green 75 75 0.14 2
SOCKET STRAIGHT TT 5P 16A 3h 2425540 2425540 UI 416-3 Q 5/3PN+E 380-440 50-60 Red 75 75 0.14 3
SOCKET STRAIGHT TT 5P 16A 4h 2425541 2425541 UI 416-4 Q 5/3PN+E 100-130 50/60 Yellow 75 75 0.14 4
SOCKET STRAIGHT TT 5P 16A 5h 2425542 2425542 UI 416-5 Q 5/3PN+E 600-690 50/60 Black 75 75 0.14 5
SOCKET STRAIGHT TT 5P 16A 6h 2425543 2425543 UI 416-6 Q 5/3PN+E 230/400 50/60 Red 75 75 0.14 6
SOCKET STRAIGHT TT 5P 16A 7h 2425544 2425544 UI 416-7 Q 5/3PN+E 480-500 50/60 Black 75 75 0.14 7
SOCKET STRAIGHT TT 5P 16A 9h 2425545 2425545 UI 416-9 Q 5/3PN+E 208-250 50/60 Blue 75 75 0.14 9
SOCKET STRAIGHT TT 5P 16A 11h 2425546 2425546 UI 416-11 Q 5/3PN+E 440-460 60 Red 75 75 0.14 11
