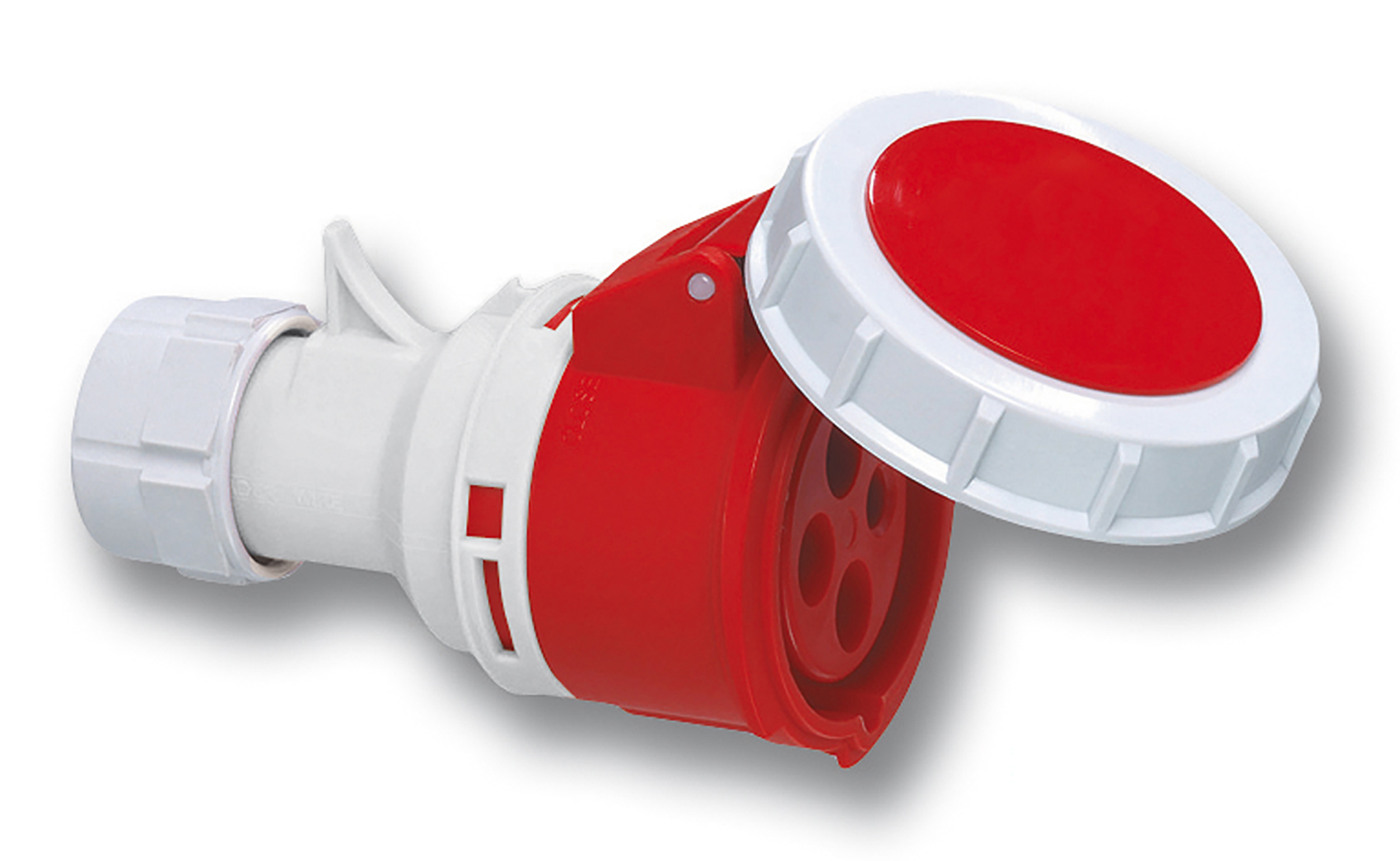

Connectors Container 32A IP67
Connectors with nickel-plated contacts for container handling, for example, trailers, docks, boats, etc. At 3 o’clock. Waterproof. Connectors watertight container 4-poles 32A 3h.
E-number
2425861
2425861
Article number
2425861
2425861
| Type designation | SC332-3 S |
|---|---|
| Rated current [A] | 32 |
| No.of Poles [pcs] | 3P |
| Rated voltage [V AC] | 380-440 |
| Frequency [Hz] | 50/60 |
| Degree of protection [IP] | 67 |
| Wire flexible [mm²] | 2,5-6 |
| Colour | Red |
| Standard | Class 1 EN 60044-8 |
| Width [mm] | 93 |
| Height [mm] | 146 |
| Depth [mm] | 93 |
| Netweight [kg] | 0.27 |
| Materials | Plastic |
| Function | Containerdon/Connectors cont. |
| Supply voltage [VAC] | 380-440 |
| Position of earth [h] | 3 |
| RAL-nummer | RAL3000 |
| Name | CONNECTORS WT CONT 4P 32A 3h |
|---|---|
| E-number | 2425861 |
| Article number | 2425861 |
