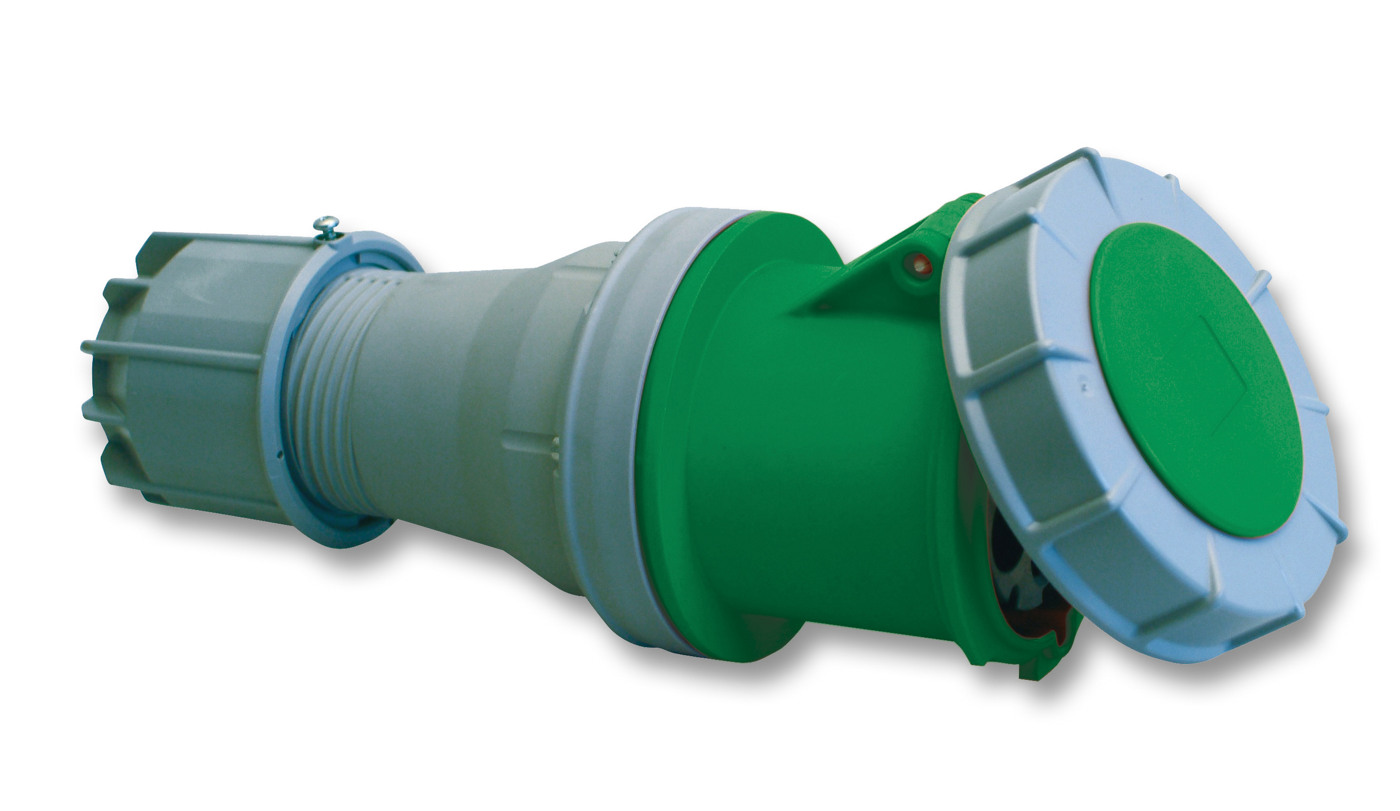

Connectors Basic 125A IP67

Basic, our standard range with a screw function. In-line connector 125A in waterproof design. Connectors basic watertight 4-poles 125A 2h
E-number
2424745
Article number
2424745
Rated current [A] 125
Degree of protection [IP] 67
Wire flexible [mm²] 16-50
Standard Class 1 EN 60044-8
Package size [pcs] 2
Width [mm] 124
Height [mm] 287
Depth [mm] 81
Materials Plastic
Function Basic
Name CONNECTORS WT 4P 125A 2h
E-number 2424745
Article number 2424745
Type designation SV 3125-2 S
No.of Poles [pcs] 4/3P+E
Rated voltage [V AC] >50
Frequency [Hz] >300-500
Colour Green
Netweight [kg] 1.25
Position of earth [h] 2
RAL-nummer RAL6010

More variants of Connectors Basic 125A IP67

E-number Article number Type designation No.of Poles [pcs] Rated voltage [V AC] Frequency [Hz] Colour Netweight [kg] Position of earth [h] RAL-nummer
CONNECTORS WT 3P 125A 4h 2424742 2424742 SV 2125-4 S 3/2P+E 100-130 50/60 Yellow 1.13 4 RAL1023
CONNECTORS WT 3P 125A 6h 2424743 2424743 SV 2125-6 S 3/2P+E 200-250 50/60 Blue 1.13 6 RAL5017
CONNECTORS WT 3P 125A 9h 2424744 2424744 SV 2125-9 S 3/2P+E 380-415 50/60 Red 1.13 9 RAL3000
CONNECTORS WT 4P 125A 2h 2424745 2424745 SV 3125-2 S 4/3P+E >50 >300-500 Green 1.25 2 RAL6010
CONNECTORS WT 4P 125A 4h 2424746 2424746 SV 3125-4 S 4/3P+E 100-130 50/60 Yellow 1.25 4 RAL1023
CONNECTORS WT 4P 125A 6h 2424747 2424747 SV 3125-6 S 4/3P+E 400 50/60 Red 1.25 6 RAL3000
CONNECTORS WT 4P 125A 7h 2424748 2424748 SV 3125-7 S 4/3P+E 480-500 50/60 Black 1.25 7 RAL9005
CONNECTORS WT 4P 125A 9h 2424749 2424749 SV 3125-9 S 4/3P+E 230 50/60 Blue 1.25 9 RAL5017
CONNECTORS WT 4P 125A 10h 2424750 2424750 SV 3125-10 S 4/3P+E >50 100-300 Green 1.25 10 RAL6010
CONNECTORS WT 4P 125A 11h 2424751 2424751 SV 3125-11 S 4/3P+E 440-460 60 Red 1.25 11 RAL3000
CONNECTORS WT 5P 125A 4h 2424752 2424752 SV 4125-4 S 5/3PN+E 100-130 50/60 Yellow 1.35 4 RAL1023
CONNECTORS WT 5P 125A 6h 2424753 2424753 SV 4125-6 S 5/3PN+E 230/400 50/60 Red 1.35 6 RAL3000
CONNECTORS WT 5P 125A 9h 2424754 2424754 SV 4125-9 S 5/3PN+E 208-250 50/60 Blue 1.35 9 RAL5017
CONNECTORS WT 5P 125A 11h 2424755 2424755 SV 4125-11 S 5/3PN+E 440-460 60 Red 1.35 11 RAL3000
