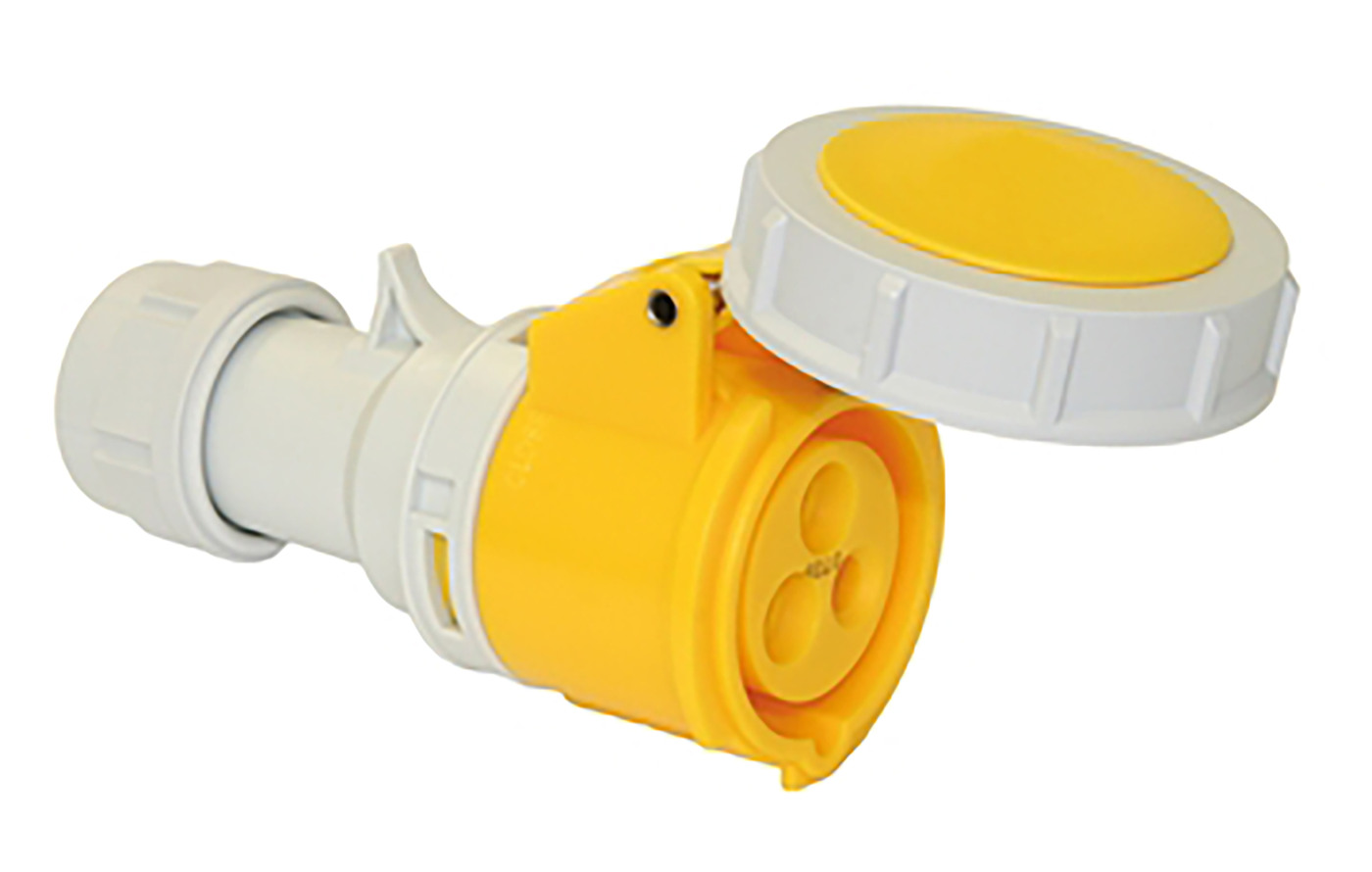

Connectors Basic 16A IP67

Basic, our standard range with a screw function. In-line connector 16A in waterproof design. Connectors basic watertight 3-poles 16A 4h.
E-number
2424698
Article number
2424698
Rated current [A] 16
Degree of protection [IP] 67
Wire flexible [mm²] 1-2,5
Package size [pcs] 10
Materials Plastic
Function Basic
Name CONNECTORS WT 3P 16A 4h
E-number 2424698
Article number 2424698
Type designation SV 216-4 S
No.of Poles [pcs] 3/2P+E
Rated voltage [V AC] 100-130
Frequency [Hz] 50/60
Colour Yellow
Width [mm] 78
Height [mm] 133
Depth [mm] 38
Netweight [kg] 0.15
Position of earth [h] 4
RAL-nummer RAL3000

More variants of Connectors Basic 16A IP67

E-number Article number Type designation No.of Poles [pcs] Rated voltage [V AC] Frequency [Hz] Colour Width [mm] Height [mm] Depth [mm] Netweight [kg] Position of earth [h] RAL-nummer
CONNECTORS WT 3P 16A 4h 2424698 2424698 SV 216-4 S 3/2P+E 100-130 50/60 Yellow 78 133 38 0.15 4 RAL3000
CONNECTORS WT 3P 16A 6h 2424699 2424699 SV 216-6 S 3/2P+E 200-250 50/60 Blue 78 133 38 0.15 6 RAL5017
CONNECTORS WT 3P 16A 9h 2424700 2424700 SV 216-9 S 3/2P+E 380-415 50/60 Red 78 133 38 0.15 9 RAL3000
CONNECTORS WT 4P 16A 2h 2424701 2424701 SV 316-2 S 4/3P+E >50 >300-500 Green 84 139 38 0.19 2 RAL6010
CONNECTORS WT 4P 16A 4h 2424702 2424702 SV 316-4 S 4/3P+E 100-130 50/60 Yellow 84 139 38 0.19 4 RAL1023
CONNECTORS WT 4P 16A 6h 2424703 2424703 SV 316-6 S 4/3P+E 400 50/60 Red 84 139 38 0.19 6 RAL3000
CONNECTORS WT 4P 16A 7h 2424704 2424704 SV 316-7 S 4/3P+E 480-500 50/60 Black 84 139 38 0.19 7 RAL9005
CONNECTORS WT 4P 16A 9h 2424705 2424705 SV 316-9 S 4/3P+E 230 50/60 Blue 84 139 38 0.19 9 RAL5017
CONNECTORS WT 4P 16A 10h 2424706 2424706 SV 316-10 S 4/3P+E >50 100-300 Green 84 139 38 0.19 10 RAL6010
CONNECTORS WT 4P 16A 11h 2424707 2424707 SV 316-11 S 4/3P+E 440-460 60 Red 84 139 38 0.19 11 RAL3000
CONNECTORS WT 5P 16A 4h 2424708 2424708 SV 416-4 S 5/3PN+E 100-130 50/60 Yellow 92 145 42 0.22 4 RAL1023
CONNECTORS WT 5P 16A 6h 2424709 2424709 SV 416-6S 5/3PN+E 230/400 50/60 Red 92 145 42 0.22 6 RAL3000
CONNECTORS WT 5P 16A 9h 2424710 2424710 SV 416-9 S 5/3PN+E 208-250 50/60 Blue 92 145 42 0.22 9 RAL5017
CONNECTORS WT 5P 16A 11h 2424711 2424711 SV 416-11 S 5/3PN+E 440-460 60 Red 92 145 42 0.22 11 RAL3000
