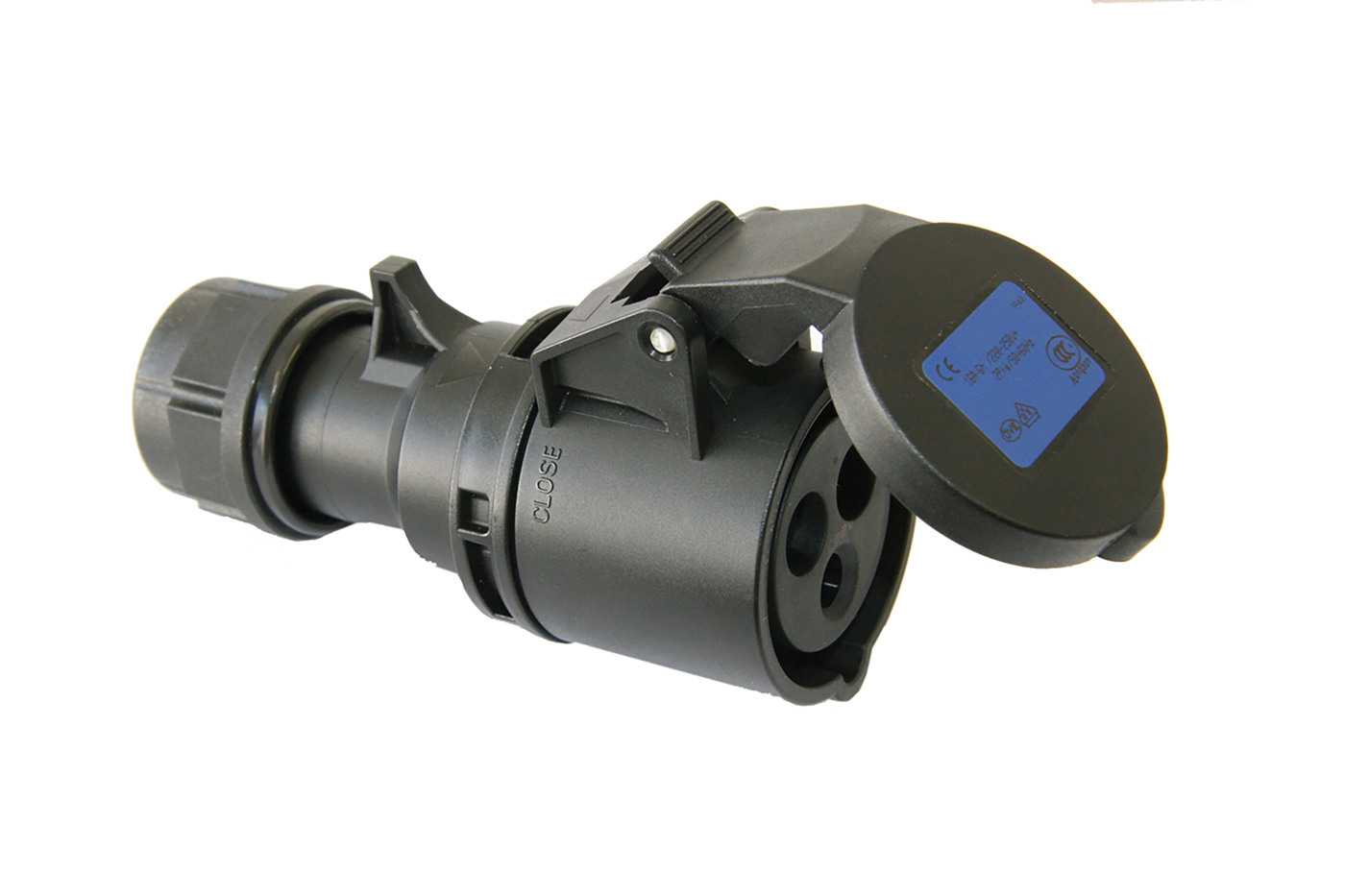

Connectors Event 32A IP44

Scen, designed specifically for stages, arenas and different events. An almost invisible connector on a black floor. In-line socket 32A. Connectors for scen-bandstand & arena 3-poles 32A 6h.
E-number
2425665
Article number
2425665
Rated current [A] 32
Frequency [Hz] 50/60
Degree of protection [IP] 44
Wire flexible [mm²] 2,5-6
Standard Class 1 EN 60044-8
Depth [mm] 50
Materials Plastic
Function Scen
Position of earth [h] 6
Name CONNECTORS BLACK 3P 32A 6h
E-number 2425665
Article number 2425665
Type designation S 232-6 S+B
No.of Poles [pcs] 3/2P+E
Rated voltage [V AC] 200-250
Colour Blue
Width [mm] 92
Height [mm] 159
Netweight [kg] 0.23
RAL-nummer RAL5017

More variants of Connectors Event 32A IP44

E-number Article number Type designation No.of Poles [pcs] Rated voltage [V AC] Colour Width [mm] Height [mm] Netweight [kg] RAL-nummer
CONNECTORS BLACK 3P 32A 6h 2425665 2425665 S 232-6 S+B 3/2P+E 200-250 Blue 92 159 0.23 RAL5017
CONNECTORS BLACK 4P 32A 6h 2425666 2425666 S 332-6 S+B 4/3P+E 400 Red 92 159 0.24 RAL3000
CONNECTORS  BLACK  5P 32A 6h 2425667 2425667 S 432-6 S+B 5/3PN+E 230/400 Red 98 165 0.28 RAL3000
