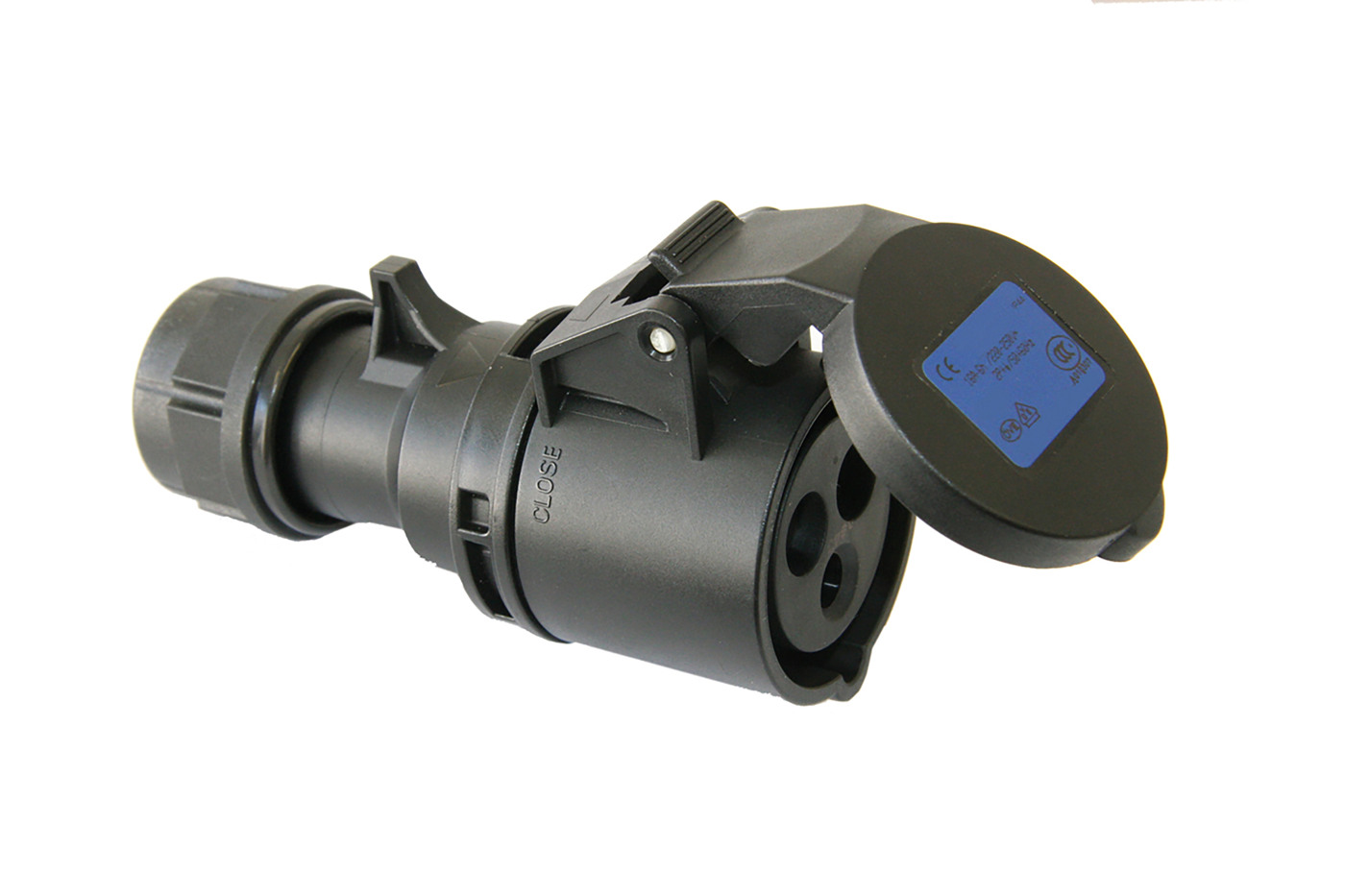

Connectors Event 16A IP44

Scen, designed specifically for stages, arenas and different events. An almost invisible connector on a black floor. In-line socket 16A. Connectors for scen-bandstand & arena 3-poles 16A 6h.
E-number
2425662
Article number
2425662
Rated current [A] 16
Frequency [Hz] 50/60
Degree of protection [IP] 44
Wire flexible [mm²] 1-2,5
Standard Class 1 EN 60044-8
Materials Plastic
Function Scen
Position of earth [h] 6
Name CONNECTORS BLACK 3P 16A 6h
E-number 2425662
Article number 2425662
Type designation S 216-6 S+B
No.of Poles [pcs] 3/2P+E
Rated voltage [V AC] 200-250
Colour Blue
Width [mm] 76
Height [mm] 129
Depth [mm] 38
Netweight [kg] 0.14
Supply voltage [VAC] 200-250
RAL-nummer RAL5017

More variants of Connectors Event 16A IP44

E-number Article number Type designation No.of Poles [pcs] Rated voltage [V AC] Colour Width [mm] Height [mm] Depth [mm] Netweight [kg] Supply voltage [VAC] RAL-nummer
CONNECTORS BLACK 3P 16A 6h 2425662 2425662 S 216-6 S+B 3/2P+E 200-250 Blue 76 129 38 0.14 200-250 RAL5017
CONNECTORS BLACK 4P 16A 6h 2425663 2425663 S 316-6 S+B 4/3P+E 400 Red 80 135 38 0.16 RAL3000
CONNECTORS BLACK  5P 16A 6h 2425664 2425664 S 416-6 S+B 5/3PN+E 230/400 Red 89 142 42 0.18 RAL3000
