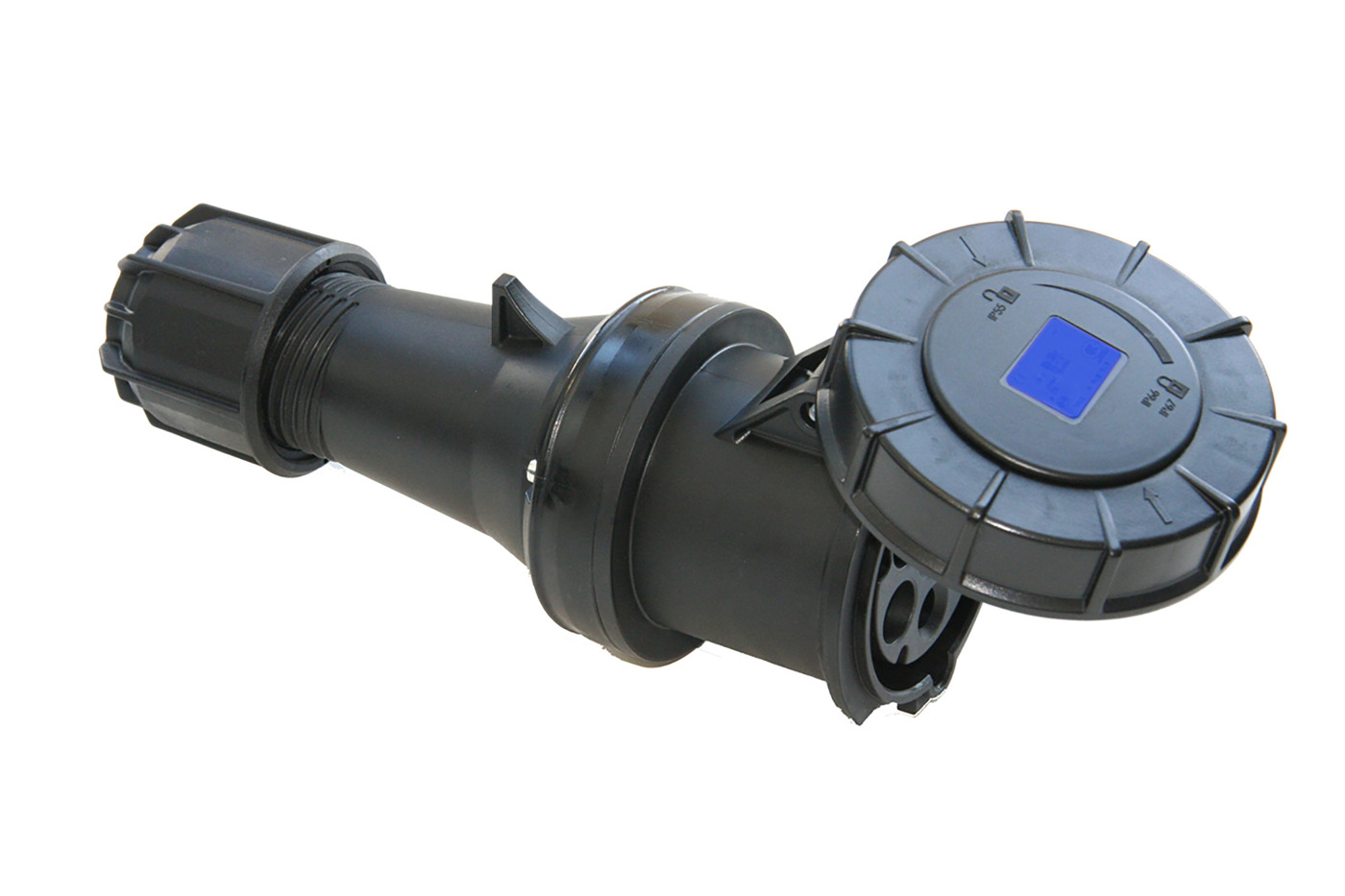

Connectors Event 125A IP67

Scen, designed specifically for stages, arenas and different events. An almost invisible connector on a black floor. In-line connector 125A in Waterproof design. Connectors for scen-bandstand & arena 3-poles 125A 6h.
E-number
2425671
Article number
2425671
Wire flexible [mm²] 6-16
Rated current [A] 125
Degree of protection [IP] 67
Frequency [Hz] 50/60
Standard EN 60309-2
Width [mm] 124
Height [mm] 287
Depth [mm] 81
Materials Plastic
Function Scen
Position of earth [h] 6
Name CONNECTORS BLACK 3P 125A 6h
E-number 2425671
Article number 2425671
Type designation SV 2125-6 S+ B
Colour Blue
Rated voltage [V AC] 200-250
Netweight [kg] 1.12
No.of Poles [pcs] 3/2P+E
RAL-nummer RAL5017

More variants of Connectors Event 125A IP67

E-number Article number Type designation Colour Rated voltage [V AC] Netweight [kg] No.of Poles [pcs] Supply voltage [VAC] RAL-nummer
CONNECTORS BLACK 3P 125A 6h 2425671 2425671 SV 2125-6 S+ B Blue 200-250 1.12 3/2P+E RAL5017
CONNECTORS BLACK 4P 125A 6h 2425672 2425672 SV 3125-6 S+B Red 400 1.23 4/3P+E RAL3000
CONNECTORS BLACK  5P 125A 6h 2425673 2425673 SV 4125-6 S+B Red 230/400 1.34 5/3PN+E 230/400 RAL3000
