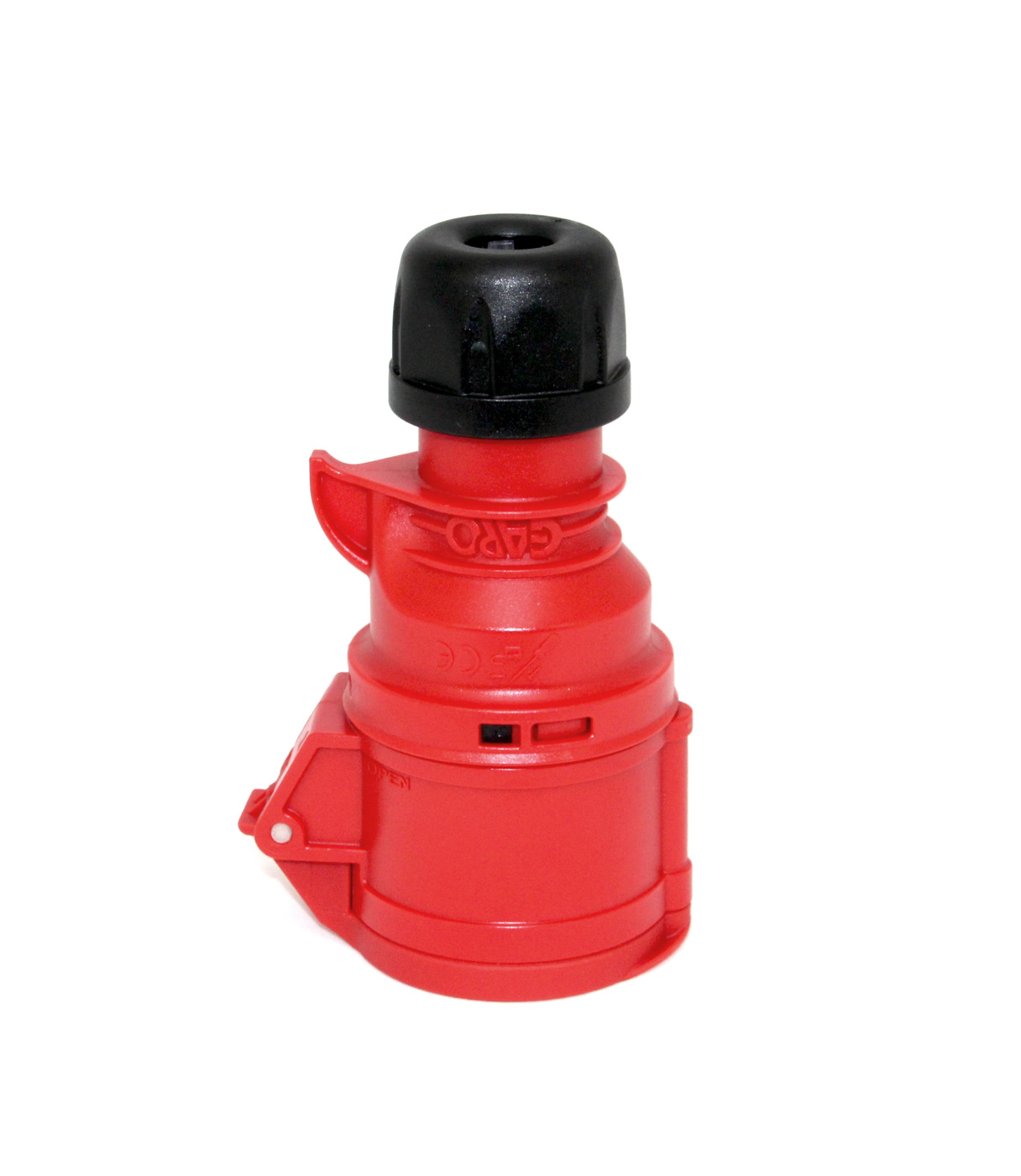

CONNECTORS 5P 32A 11h

Connectors Basic 32A IP44

Basic, our standard range with a screw function. In-line socket 32A. Connectors bacis 5-poles 32A 11h
E-number
2424679
Article number
2424679
Support
Rated current [A] 32
Degree of protection [IP] 44
Wire flexible [mm²] 2,5-6
Package size [pcs] 10
Depth [mm] 50
Materials Plastic
Function Basic
Name CONNECTORS 5P 32A 11h
E-number 2424679
Article number 2424679
Type designation S 432-11 S
No.of Poles [pcs] 5/3PN+E
Rated voltage [V AC] 440-460
Frequency [Hz] 60
Colour Red
Width [mm] 98
Height [mm] 165
Netweight [kg] 0.27
Position of earth [h] 11
RAL-nummer RAL3000

More variants of Connectors Basic 32A IP44

E-number Article number Type designation No.of Poles [pcs] Rated voltage [V AC] Frequency [Hz] Colour Width [mm] Height [mm] Netweight [kg] Position of earth [h] RAL-nummer
CONNECTORS 3P 32A 2h 2424657 2424657 S 232-2 S 3/2P+E >50 >300-500 Green 92 159 0.23 2 RAL6010
CONNECTORS 3P 32A 4h 2424658 2424658 S 232-4 S 3/2P+E 100-130 50/60 Yellow 92 159 0.23 4 RAL1023
CONNECTORS 3P 32A 6h 2424659 2424659 S 232-6 S 3/2P+E 200-250 50/60 Blue 92 159 0.23 6 RAL5017
CONNECTORS 3P 32A 7h 2424660 2424660 S 232-7 S 3/2P+E 480-500 50/60 Black 92 159 0.23 7 RAL9005
CONNECTORS 3P 32A 9h 2424661 2424661 S 232-9 S 3/2P+E 380-415 50/60 Red 92 159 0.23 9 RAL3000
CONNECTORS 3P 32A 12h 2424662 2424662 S 232-12 S 3/2P+E Matning fr.isolertransf. 50/60 Grey 92 159 0.23 12 RAL7046
CONNECTORS 4P 32 A 2h 2424663 2424663 S 332-2 S 4/3P+E >50 >300-500 Green 92 159 0.25 2 RAL6010
CONNECTORS 4P 32 A 3h 2424664 2424664 S 332-3 S 4/3P+E 380-440 50/60 Red 92 159 0.25 3 RAL3000
CONNECTORS 4P 32A 4h 2424665 2424665 S 332-4 S 4/3P+E 100-130 50/60 Yellow 92 159 0.25 4 RAL1023
CONNECTORS 4P 32A 5h 2424666 2424666 S 332-5 S 4/3P+E 600-690 50/60 Black 92 159 0.25 5 RAL9005
CONNECTORS 4P 32A 6h 2424667 2424667 S 332-6 S 4/3P+E 400 50/60 Red 92 159 0.25 6 RAL3000
CONNECTORS 4P 32A 7h 2424668 2424668 S 332-7 S 4/3P+E 480-500 50/60 Black 92 159 0.25 7 RAL9005
CONNECTORS 4P 32A 9h 2424669 2424669 S 332-9 S 4/3P+E 230 50/60 Blue 92 159 0.25 9 RAL5017
CONNECTORS 4P 32A 10h 2424670 2424670 S 332-10 S 4/3P+E >50 100-300 Green 92 159 0.25 10 RAL6010
CONNECTORS 4P 32A 11h 2424671 2424671 S 332-11 S 4/3P+E 440-460 60 Red 92 159 0.25 11 RAL3000
CONNECTORS 5P 32A 2h 2424672 2424672 S 432-2 S 5/3PN+E >50 >300-500 Green 98 165 0.27 2 RAL6010
CONNECTORS 5P 32A 3h 2424673 2424673 S 432-3 S 5/3PN+E 380-440 50/60 Red 98 165 0.27 3 RAL3000
CONNECTORS 5P 32A 4h 2424674 2424674 S 432-4 S 5/3PN+E 100-130 50/60 Yellow 98 165 0.27 4 RAL1023
CONNECTORS 5P 32A 5h 2424675 2424675 S 432-5 S 5/3PN+E 600-690 50/60 Black 98 165 0.27 5 RAL9005
CONNECTORS 5P 32A 6h 2424676 2424676 S 432-6 S 5/3PN+E 230-400 50/60 Red 98 165 0.27 6 RAL3000
CONNECTORS 5P 32A 7h 2424677 2424677 S 432-7 S 5/3PN+E 480-500 50/60 Black 98 165 0.27 7 RAL9005
CONNECTORS 5P 32A 9h 2424678 2424678 S 432-9 S 5/3PN+E 208-250 50/60 Blue 98 165 0.27 9 RAL5017
CONNECTORS 5P 32A 11h 2424679 2424679 S 432-11 S 5/3PN+E 440-460 60 Red 98 165 0.27 11 RAL3000
