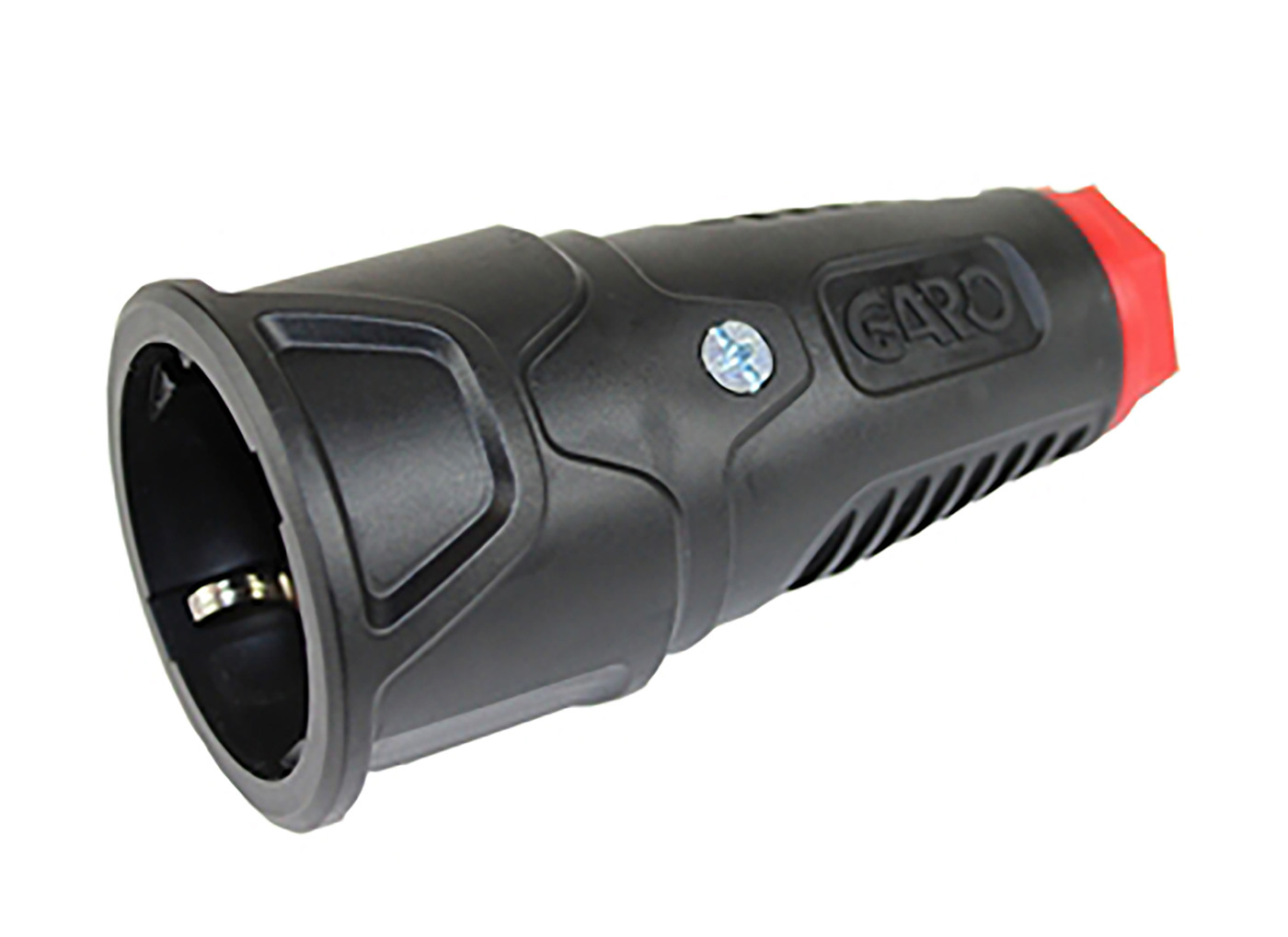

CONNECTOR 16A 3P R WO LID IP20

Connector Solid 16A IP20

Solid, a tough and durable range that can withstand just about everything, even being run over by construction vehicles. In-line connector 16A has cable clamps that are open for quicker handling and easier assembly. Screw connection +/- Ph2. Available with or without lid. Connector 16A 3-poles rubber (TPE) without lid IP20
E-number
2405260
Article number
109738
Support
Rated current [A] 16
No.of Poles [pcs] 3/2P+E
Rated voltage [V AC] 250
Frequency [Hz] 50
Degree of protection [IP] 20
Wire flexible [mm²] 2,5-6
Colour Black/Red
Standard Class 1 EN 60044-8
Package size [pcs] 20
Width [mm] 50
Height [mm] 50
Depth [mm] 100
Netweight [kg] 0.09
Materials Rubber
Function Solid
RAL-nummer RAL9005
Name CONNECTOR 16A 3P R WO LID IP20
E-number 2405260
Article number 109738
Type designation CRWOL-216

More variants of Connector Solid 16A IP20

E-number Article number Type designation
CONNECTOR 16A 3P P WO LID IP20 2405259 109737 CPWOL-216
CONNECTOR 16A 3P R WO LID IP20 2405260 109738 CRWOL-216
