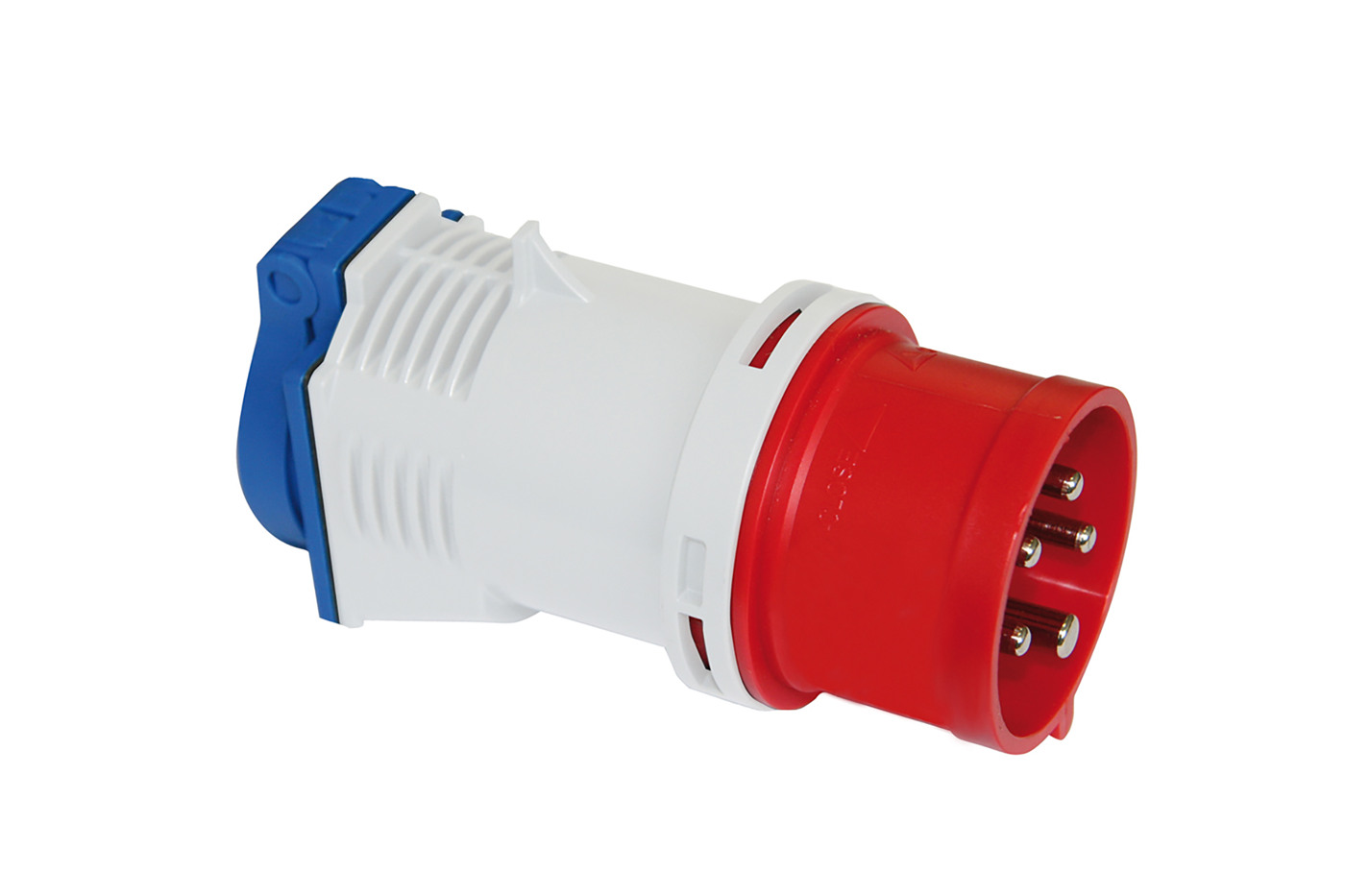

Adapter basic 16A IP44

GARO’s adapter with IEC/CEE and one Schuko socket at the end. The products are manufactured for temporary use in industrial environments, both indoor & outdoor. The Schuko socket comes in several designs to suit different markets. UIF (Swedish version), UIFF (French version), UIFG (English version) and UIFD (Danish version). Adapter basic with danish schuko 5-poles 16A 5h.
E-number
2425138
Article number
2425138
Rated current [A] 16
Frequency [Hz] 50/60
Degree of protection [IP] 44
Standard Class 1 EN 60044-8
Height [mm] 133
Materials Plastic
Function Basic
Position of earth [h] 6
Mounting method Surface mounting
Name ADAPTER W.SCH. DK 5P 16A 6h
E-number 2425138
Article number 2425138
Type designation II 416-6 S/UIFD
No.of Poles [pcs] 5/3PN+E
Rated voltage [V AC] 230/400
Colour Red
Width [mm] 74
Depth [mm] 61
Netweight [kg] 0.22
RAL-nummer RAL3000

More variants of Adapter basic 16A IP44

E-number Article number Type designation No.of Poles [pcs] Rated voltage [V AC] Colour Width [mm] Depth [mm] Netweight [kg] RAL-nummer
ADAPTER W.SCH.SWE 3P 16A 6h 2425131 2425131 II 216-6 S/UIF 3/2P+E 200-250 Blue 65 47 0.17 RAL5017
ADAPTER W.SCH. FR 3P 16A 6h 2425132 2425132 II 216-6 S/UIFF 3/2P+E 200-250 Blue 65 47 0.17 RAL5017
ADAPTER W.SCH. BS 3P 16A 6h 2425133 2425133 II 216-6 S/UIFG 3/2P+E 200-250 Blue 65 47 0.17 RAL5017
ADAPTER W.SCH. DK 3P 16A 6h 2425134 2425134 II 216-6 S/UIFD 3/2P+E 200-250 Blue 65 47 0.17 RAL5017
ADAPTER W.SCH. SW 5P 16A 6h 2425135 2425135 II 416-6 S/UIF 5/3PN+E 230/400 Red 74 61 0.22 RAL3000
ADAPTER W.SCH. FR 5P 16A 6h 2425136 2425136 II 416-6 S/UIFF 5/3PN+E 230/400 Red 74 61 0.22 RAL3000
ADAPTER W.SCH. UK 5P 16A 6h 2425137 2425137 II 416-6 S/UIFG 5/3PN+E 230/400 Red 74 61 0.22 RAL3000
ADAPTER W.SCH. DK 5P 16A 6h 2425138 2425138 II 416-6 S/UIFD 5/3PN+E 230/400 Red 74 61 0.22 RAL3000

Accessories for Adapter basic 16A IP44

Name E-number Article number Type designation Description
COVER 216 COVER 216 2425900 2425900 TL 216S Cover for P 216 and II 216
COVER 416
COVER 416 2425902 2425902 TL 416S Cover for P 416 and II 416
