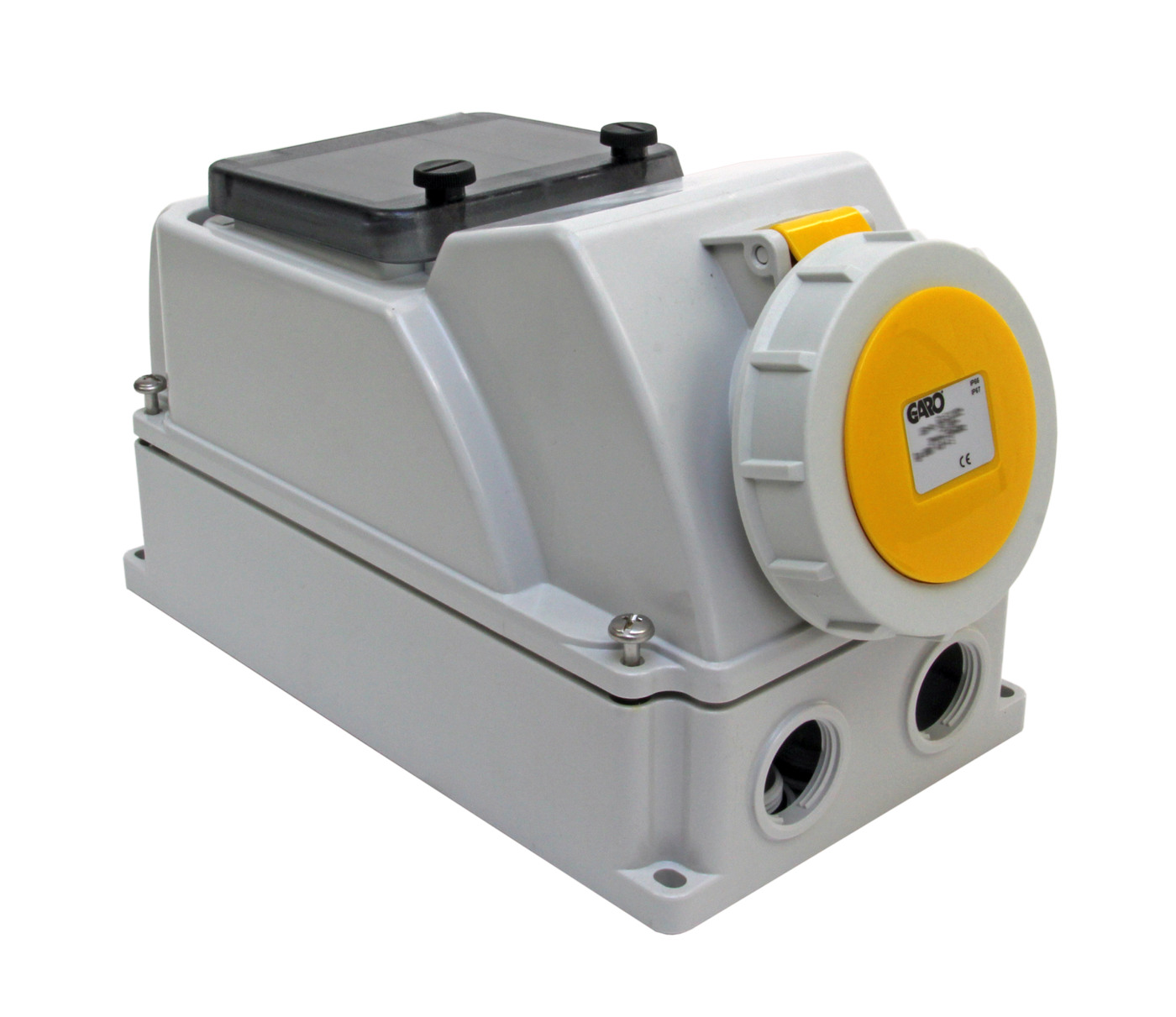

Outlet boxes 32A IP67

Outlet boxes with one IEC/CEE socket on the front. Can be equipped with DIN devices, outlet enclosure supplied empty. Ample connection space and with knockouts in the bottom. Supplied with glands adapted to each box. Cable entry options from both the top and bottom. Waterproof. Outlet box watertight tom 4-poles 32A 4h
E-number
2468733
Article number
2468733
Rated current [A] 32
Frequency [Hz] 50/60
Degree of protection [IP] 67
Wire flexible [mm²] 2,5-6
Standard 61439-4
Width [mm] 130
Materials Plastic
Wire solid [mm²] 2,5-10
Earth terminal [mm²] 10
Knockouts Down[Ø/pcs] 2x25
Knockouts up[Ø/pcs] 1x25
Name OUTLET BOX WT TOM 4P 32A 4h
E-number 2468733
Article number 2468733
Type designation URBV 332-4 S
No.of Poles [pcs] 4/3P+E
Rated voltage [V AC] 100-130
Colour Yellow
Height [mm] 253
Depth [mm] 150
Netweight [kg] 1.14
Position of earth [h] 4

More variants of Outlet boxes 32A IP67

E-number Article number Type designation No.of Poles [pcs] Rated voltage [V AC] Colour Height [mm] Depth [mm] Netweight [kg] Position of earth [h]
OUTLET BOX WT TOM 3P 32A 4h 2468730 2468730 URBV 232-4 S 3/2P+E 100-130 Yellow 253 150 1.13 4
OUTLET BOX WT TOM 3P 32A 6h 2468731 2468731 URBV 232-6 S 3/2P+E 200-250 Blue 253 150 1.13 6
OUTLET BOX WT TOM 3P 32A 9h 2468732 2468732 URBV 232-9 S 3/2P+E 380-415 Red 253 150 1.13 9
OUTLET BOX WT TOM 4P 32A 4h 2468733 2468733 URBV 332-4 S 4/3P+E 100-130 Yellow 253 150 1.14 4
OUTLET BOX WT TOM 4P 32A 6h 2468734 2468734 URBV 332-6 S 4/3P+E 400 Red 253 150 1.14 6
OUTLET BOX WT TOM 4P 32A 7h 2468735 2468735 URBV 332-7 S 4/3P+E 480-500 Black 253 150 1.14 7
OUTLET BOX WT TOM 4P 32A 9h 2468736 2468736 URBV 332-9 S 4/3P+E 230 Blue 253 150 1.14 9
OUTLET BOX WT TOM 5P 32A 4h 2468737 2468737 URBV 432-4 S 5/3PN+E 100-130 Yellow 254 157 1.16 4
OUTLET BOX WT EMPTY 5P 32A 6h 2468738 2468738 URBV 432-6 S 5/3PN+E 230/400 Red 254 157 1.16 6
OUTLET BOX WT TOM 5P 32A 9h 2468739 2468739 URBV 432-9 S 5/3PN+E 208-250 Blue 254 157 1.16 9
