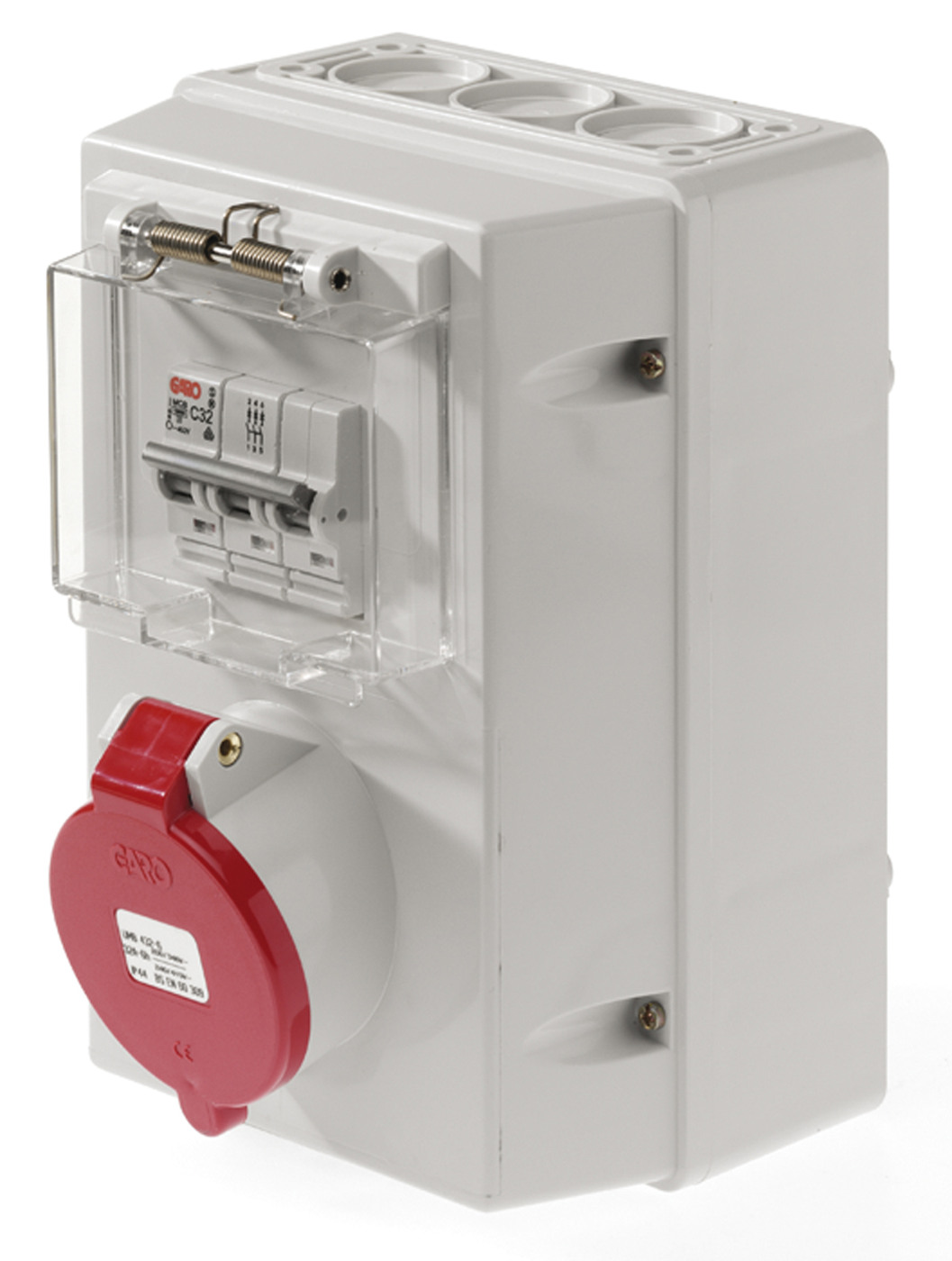

Outlet boxes 63A IP44

Outlet boxes with one IEC/CEE socket on the front. Ample connection space. FL13 in the top and bottom combined with knockouts. Supplied with glands adapted to each box. Cable entry options from both the top and bottom. Outlet box with MCB UMB 3-pole 63A 9h
Article number
2468778
Rated current [A] 63
Frequency [Hz] 50/60
Degree of protection [IP] 44
Standard EN 61439-4
Width [mm] 160
Height [mm] 260
Depth [mm] 170
Materials Plastic
Knockouts Down[Ø/pcs] 2x40
Knockouts up[Ø/pcs] 2x40
RCBO 1
Name OUTLET BOX UMB 3P 63A 9h
Article number 2468778
Type designation UMB 263-9 S
No.of Poles [pcs] 3/2P+E
Rated voltage [V AC] 380-415
Wire flexible [mm²] Max Cu 10
Colour Red
Netweight [kg] 1.95
Position of earth [h] 9
MCB 1 pcs C263
Earth terminal [mm²] 10

More variants of Outlet boxes 63A IP44

E-number Article number Type designation No.of Poles [pcs] Rated voltage [V AC] Wire flexible [mm²] Colour Netweight [kg] Position of earth [h] RCCB MCB MCB Earth terminal [mm²]
OUTLET BOX URB 5P 63A 6h 2468718 2468718 URB 463-6 S 5/3PN+E 230/400 25 Red 2.08 6 1 pcs 63A/4P 10
OUTLET BOX UMB 5P 63A 6h 2468781 2468781 UMB 463-6 S 5/3PN+E 230/400 Max Cu 16 Red 2 6 1 pcs C363 16
OUTLET BOX UC UMB 5P 63A 6h 2468791 2468791 UC UMB 463-6 S 5/3PN+E 230/400 16 Red 2.22 6 2 pcs C110 1 pcs C363 10
