Outlet boxes 63A IP44

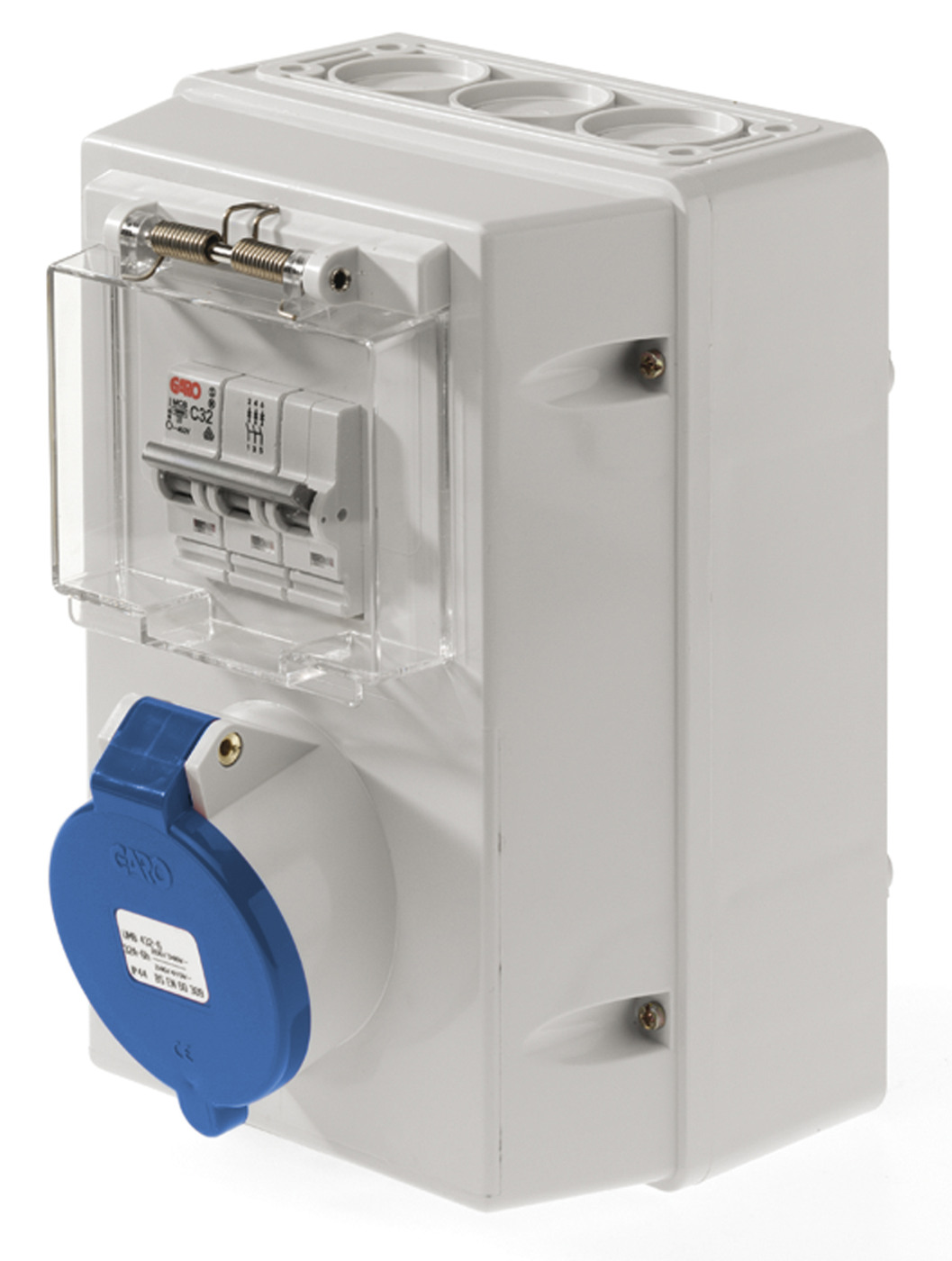

Outlet boxes with one IEC/CEE socket on the front. Ample connection space. FL13 in the top and bottom combined with knockouts. Supplied with glands adapted to each box. Cable entry options from both the top and bottom. Outlet box with MCB UMB 3-pole 63A 6h
E-number
2468777
Article number
2468777
Rated current [A] 63
Degree of protection [IP] 44
Frequency [Hz] 50/60
Standard EN 61439-4
Width [mm] 160
Height [mm] 260
Depth [mm] 170
Materials Plastic
Knockouts Down[Ø/pcs] 2x40
Knockouts up[Ø/pcs] 2x40
RCBO 1
Name OUTLET BOX UMB 3P 63A 6h
E-number 2468777
Article number 2468777
Type designation UMB 263-6 S
Wire flexible [mm²] Max Cu 10
Colour Blue
Rated voltage [V AC] 200-250
Netweight [kg] 1.95
No.of Poles [pcs] 3/2P+E
Position of earth [h] 6
MCB 1 pcs C263
Earth terminal [mm²] 10

More variants of Outlet boxes 63A IP44

E-number Article number Type designation Wire flexible [mm²] Colour Rated voltage [V AC] Netweight [kg] No.of Poles [pcs] Position of earth [h] RCCB MCB MCB Earth terminal [mm²]
OUTLET BOX URB 3P 63A 6h 2468714 2468714 URB 263-6 S 25 Blue 200-250 1.90 3/2P+E 6 1 pcs 63A/2P 10
OUTLET BOX URB 4P 63A 6h 2468716 2468716 URB 363-6 S 25 Red 400 2 4/3P+E 6 1 pcs 63A/4P 10
OUTLET BOX URB 4P 63A 9h 2468717 2468717 URB 363-9 S 25 Blue 230 2 4/3P+E 9 1 pcs 63A/4P 10
OUTLET BOX URB 5P 63A 6h 2468718 2468718 URB 463-6 S 25 Red 230/400 2.08 5/3PN+E 6 1 pcs 63A/4P 10
OUTLET BOX URB 5P 63A 9h 2468719 2468719 URB 463-9 S 25 Blue 208-250 2.08 5/3PN+E 9 1 pcs 63A/4P 10
OUTLET BOX UMB 3P 63A 6h 2468777 2468777 UMB 263-6 S Max Cu 10 Blue 200-250 1.95 3/2P+E 6 1 pcs C263 10
OUTLET BOX UMB 3P 63A 9h 2468778 2468778 UMB 263-9 S Max Cu 10 Red 380-415 1.95 3/2P+E 9 1 pcs C263 10
OUTLET BOX UMB 4P 63A 6h 2468779 2468779 UMB 363-6 S Max Cu 10 Red 400 2 3/2P+E 6 1 pcs C363 10
OUTLET BOX UMB 4P 63A 9h 2468780 2468780 UMB 363-9 S Max Cu 10 Blue 230 2 4/3P+E 9 1 pcs C363 10
OUTLET BOX UMB 5P 63A 6h 2468781 2468781 UMB 463-6 S Max Cu 16 Red 230/400 2 5/3PN+E 6 1 pcs C363 16
OUTLET BOX UBM 5P 63A 9h 2468782 2468782 UMB 463-9 S Max Cu 10 Blue 208-250 2 5/3PN+E 9 1 pcs C363 10
OUTLET BOX UC UMB 5P 63A 6h 2468791 2468791 UC UMB 463-6 S 16 Red 230/400 2.22 5/3PN+E 6 2 pcs C110 1 pcs C363 10
