Outlet boxes 32A IP44

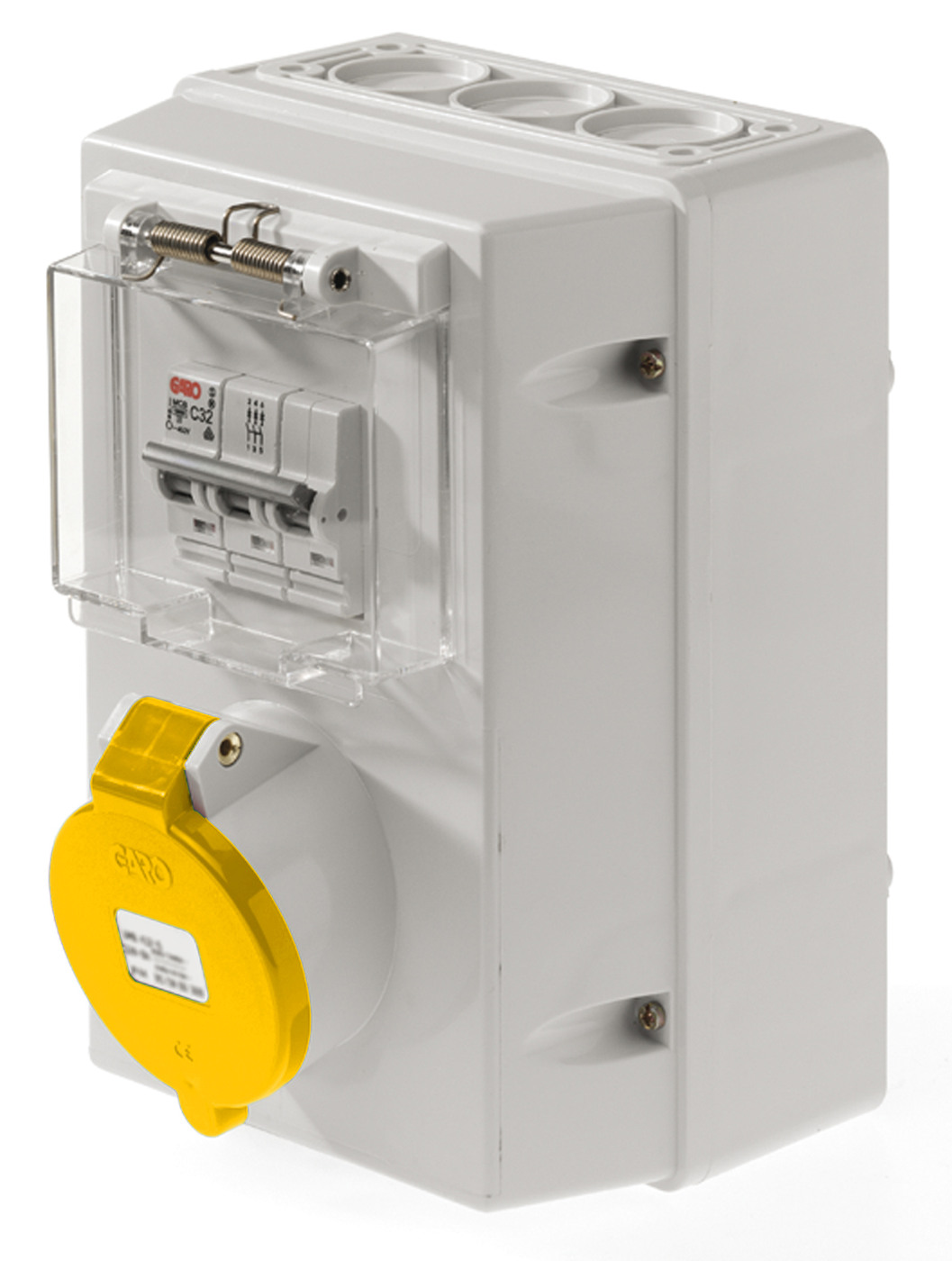

Outlet boxes with one IEC/CEE socket on the front. Ample connection space. FL13 in the top and bottom combined with knockouts. Supplied with glands adapted to each box. Cable entry options from both the top and bottom. Outlet box with MCB UMB 3pole 32A 4h
E-number
2468770
Article number
2468770
Rated current [A] 32
Degree of protection [IP] 44
Frequency [Hz] 50/60
Standard EN 61439-4
Materials Plastic
Name OUTLET BOX UMB 3P 32A 4h
E-number 2468770
Article number 2468770
Type designation UMB 232-4 S
Wire flexible [mm²] Max Cu 10
Colour Yellow
Rated voltage [V AC] 100-130
Netweight [kg] 1.40
Width [mm] 160
Height [mm] 220
Depth [mm] 153
No.of Poles [pcs] 3/2P+E
Position of earth [h] 4
MCB 1 pcs C232
Earth terminal [mm²] 10
Knockouts Down[Ø/pcs] 3x32
Knockouts up[Ø/pcs] 3x32
RCBO 1

More variants of Outlet boxes 32A IP44

E-number Article number Type designation Wire flexible [mm²] Colour Rated voltage [V AC] Netweight [kg] Width [mm] Height [mm] Depth [mm] No.of Poles [pcs] Position of earth [h] RCCB MCB MCB Earth terminal [mm²] Knockouts Down[Ø/pcs] Knockouts up[Ø/pcs] RCBO RCBO
OUTLET BOX URB 3P 32A 4h 2468707 2468707 URB 232-4 S 25 Yellow 100-130 1.40 160 220 143 3/2P+E 4 1 pcs 40A/2P 10 3x32 3x32 1
OUTLET BOX URB 3P 32A 6h 2468708 2468708 URB 232-6 S 25 Blue 200-250 1.40 160 220 143 3/2P+E 6 1 pcs 40A/2P 10 3x32 3x32 1
OUTLET BOX URB 4P 32A 6h 2468710 2468710 URB 332-6 S 25 Red 400 1.50 160 220 143 4/3P+E 6 1 pcs 40A/4P 10 3x32 3x32 1
OUTLET BOX URB 4P 32A 9h 2468711 2468711 URB 332-9 S 25 Blue 230 1.50 160 220 143 4/3P+E 9 1 pcs 40A/4P 10 3x32 3x32 1
OUTLET BOX URB 5P 32A 6h 2468712 2468712 URB 432-6 S 25 Red 230/400 1.50 160 220 143 5/3PN+E 6 1 pcs 40A/4P 10 3x32 3x32 1
OUTLET BOX URB 5P 32A 9h 2468713 2468713 URB 432-9 S 25 Blue 208-250 1.50 160 220 143 5/3PN+E 9 1 pcs 40A/4P 10 3x32 3x32 1
OUTLET BOX URBSS 5P 32A 6h 2468762 2468762 URBSS 432-6 S 25 Red 230/400 1.68 160 220 155 5/3PN+E 6 1 pcs 40A/4P 1 pcs C113 Max 16 3x32 3x32 0
OUTLET BOX UMB 3P 32A 4h 2468770 2468770 UMB 232-4 S Max Cu 10 Yellow 100-130 1.40 160 220 153 3/2P+E 4 1 pcs C232 10 3x32 3x32 1
OUTLET BOX UMB 3P 32A 6h 2468771 2468771 UMB 232-6 S Max Cu 10 Blue 200-250 1.40 160 220 153 3/2P+E 6 1 pcs C232 10 3x32 3x32 1
OUTLET BOX UMB 3P 32A 9h 2468772 2468772 UMB 232-9 S Max Cu 10 Red 380-415 1.40 160 220 153 3/2P+E 9 1 pcs C232 10 3x32 3x32 1
OUTLET BOX UMB 4P 32A 6h 2468773 2468773 UMB 332-6 S Max Cu 10 Red 400 1.41 160 220 153 4/3P+E 6 1 pcs C332 10 3x32 3x32 1
OUTLET BOX UMB 4P 32A 9h 2468774 2468774 UMB 332-9 S Max Cu 10 Blue 400 1.41 160 220 153 4/3P+E 9 1 pcs C332 10 3x32 3x32 1
OUTLET BOX UMB 5P 32A 6h 2468775 2468775 UMB 432-6 S Max Cu 10 Red 230/400 1.41 160 220 155 5/3PN+E 6 1 pcs C332 10 3x32 3x32 1
OUTLET BOX UMB 5P 32A 9h 2468776 2468776 UMB 432-9 S Max Cu 10 Blue 208-250 1.41 160 220 155 5/3PN+E 9 1 pcs C332 10 3x32 3x32 1
OUTLET BOX UMS 5P 32A 6h 2468784 2468784 UMS 432-6 S Max Cu 16 Red 230/400 1.32 160 220 155 5/3PN+E 6 1 pcs C110 10 3x32 3x32 1
OUTLET BOX ULS 5P 32A 6h 2468786 2468786 ULS 432-6 S Max Cu 16 Red 230/400 1.46 160 220 155 5/3PN+E 6 2 pcs C110 10 3x32 3x32 1
OUTLET BOX UC ULS 5P 32A 6h 2468788 2468788 UC ULS 432-6 S 16 Red 230/400 1.73 160 220 155 5/3PN+E 6 2 pcs C110 1 pcs C332 10 3x32 3x32 1
OUTLET BOX UC UIS 5P 32A 6h 2468790 2468790 UC UIS 432-6 S PE 16 Red 230/400 2.17 160 260 155 5/3PN+E 6 2 pcs C110 1 pcs C332 10 2x40 2x40 1
OUTLETBOX RCBO 5P 32A 6h 2UIF 2466416 352434 URBSP 432-6S Max Cu 16 Red 230/400 1.68 183 220 155 5/3PN+E 6 No 16 3x32 3x32 1pcs 13A/2P 1pcs 32A/4P
