Interlocket sockets 16A IP44

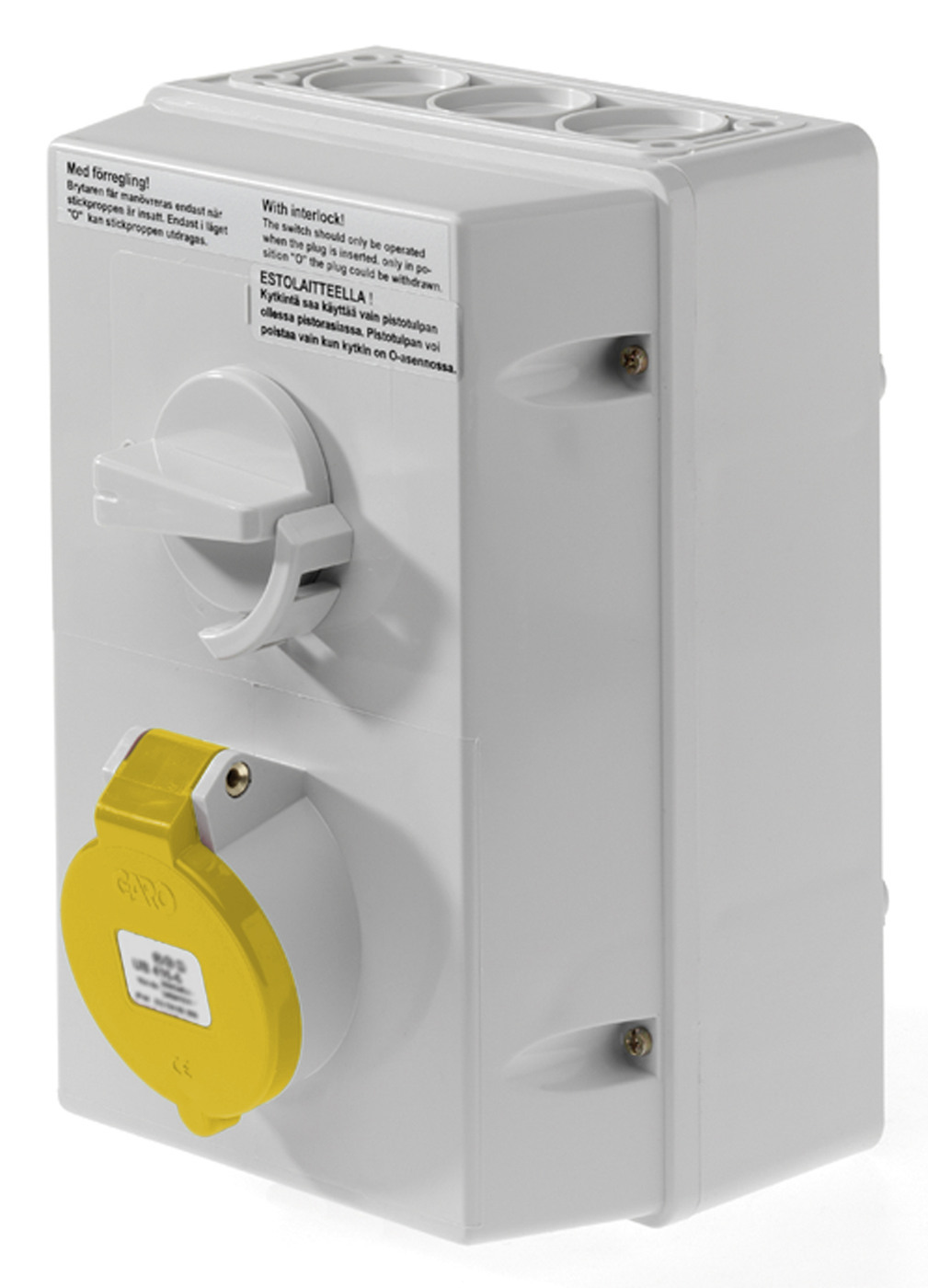

GARO’s interlocked socket for wall mounting with one IEC/CEE socket on the front panel is lockable in open and closed positions, ample connection area with FL13 at the top and bottom combined with knockouts. Supplied with glands adapted to each box. Cable entry options from both the top and bottom. Interblocked socket 5-poles 16A 4h
E-number
2425756
Article number
2425756
Wire flexible [mm²] Max 35
Rated current [A] 16
Degree of protection [IP] 44
Standard EN 61439-4
Width [mm] 160
Depth [mm] 220
Materials Plastic
Earth terminal [mm²] 10
Knockouts Down[Ø/pcs] 3x32
Knockouts up[Ø/pcs] 3x32
Name INTERLOCKED SOCKET 5P 16A 4h
E-number 2425756
Article number 2425756
Type designation UB 416-4 S
Colour Yellow
Frequency [Hz] 50/60
Rated voltage [V AC] 100-130
Netweight [kg] 1.06
Height [mm] 143
No.of Poles [pcs] 5/3PN+E
Position of earth [h] 4

More variants of Interlocket sockets 16A IP44

E-number Article number Type designation Colour Frequency [Hz] Rated voltage [V AC] Netweight [kg] Height [mm] No.of Poles [pcs] Position of earth [h]
INTERLOCKED SOCKET 3P 16A 6h 2425743 2425743 UB 216-6 S Blue 50/60 200-250 1.03 139 3/2P+E 6
INTERLOCKED SOCKET 4P 16A 3h 2425746 2425746 UB 316-3 S Red 50/60 380-440 1.05 143 4/3P+E 3
INTERLOCKED SOCKET 4P 16A 6h 2425749 2425749 UB 316-6 S Red 50/60 400 1.05 143 4/3P+E 6
INTERLOCKED SOCKET 4P 16A 10h 2425752 2425752 UB 316-10 S Green 100-300 >50 1.05 143 4/3P+E 10
INTERLOCKED SOCKET 4P 16A 11h 2425753 2425753 UB 316-11 S Red 60 440-460 1.05 143 4/3P+E 11
INTERLOCKED SOCKET 5P 16A 6h 2425757 2425757 UB 416-6 S Red 50/60 230/400 1.06 143 5/3PN+E 6
INTERLOCKED SOCKET 5P 16A 11h 2425760 2425760 UB 416-11 S Red 60 440-460 1.06 143 5/3PN+E 11

Accessories for Interlocket sockets 16A IP44

Name E-number Article number Type designation Description
AUX SWITCH FOR UB AUX SWITCH FOR UB 3155360 3155360 HLPK KU/KUE Auxiliary switches
