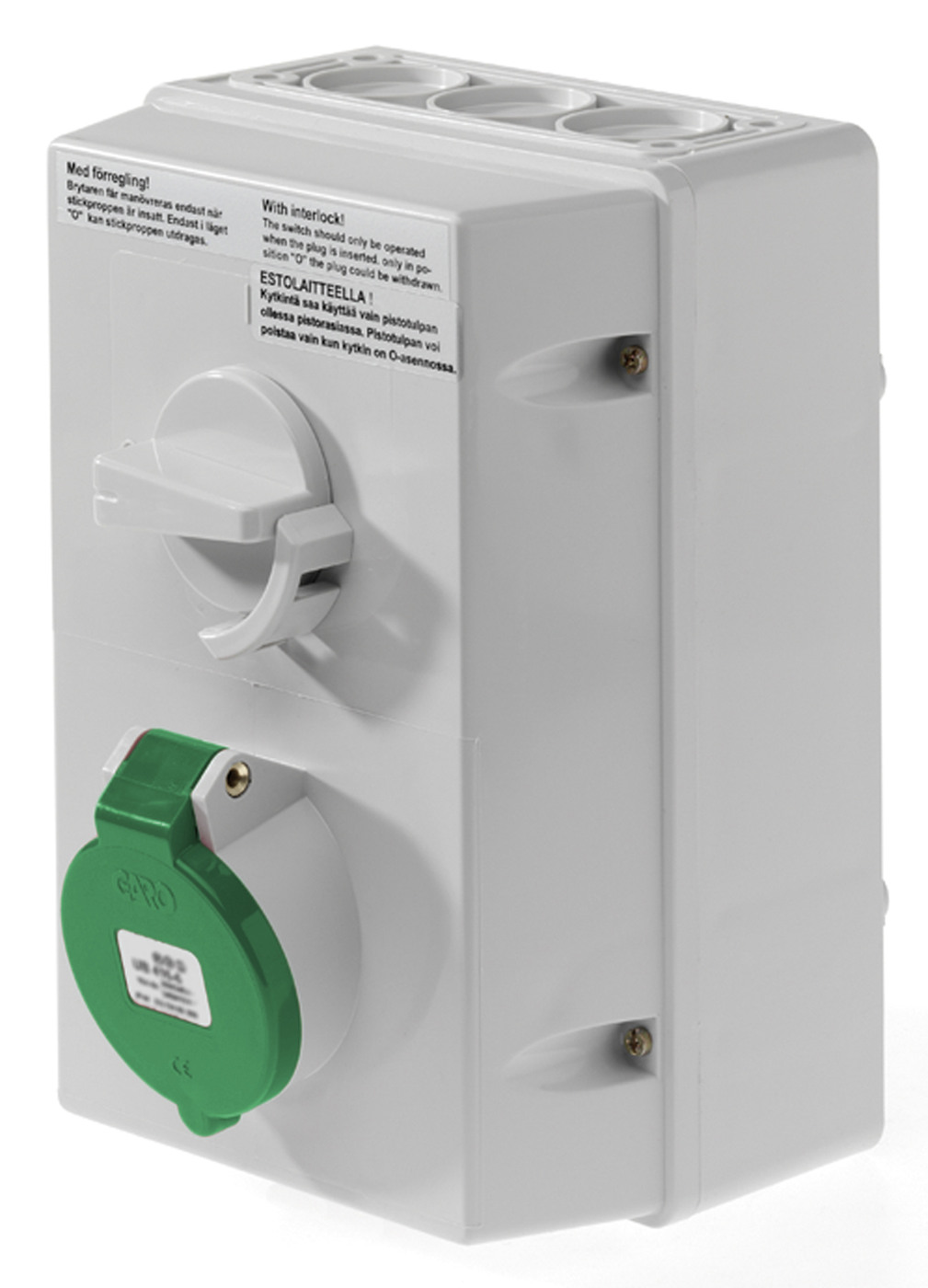

INTERLOCKED SOCKET 4P 32A 2h

Interlocked sockets 32A IP44

GARO’s interlocked socket for wall mounting with one IEC/CEE socket on the front panel is lockable in open and closed positions, ample connection area with FL13 at the top and bottom combined with knockouts. Supplied with glands adapted to each box. Cable entry options from both the top and bottom. Interblocked socket 4-poles 32A 2h
E-number
2425766
Article number
2425766
Support
Wire flexible [mm²] Max 35
Rated current [A] 32
Degree of protection [IP] 44
Standard EN 61439-4
Width [mm] 160
Depth [mm] 220
Materials Plastic
Earth terminal [mm²] 10
Knockouts Down[Ø/pcs] 3x32
Knockouts up[Ø/pcs] 3x32
Name INTERLOCKED SOCKET 4P 32A 2h
E-number 2425766
Article number 2425766
Type designation UB 332-2 S
Colour Green
Frequency [Hz] >300-500
Rated voltage [V AC] >50
Netweight [kg] 1.12
Height [mm] 151
No.of Poles [pcs] 4/3P+E
Position of earth [h] 2

More variants of Interlocked sockets 32A IP44

E-number Article number Type designation Colour Frequency [Hz] Rated voltage [V AC] Netweight [kg] Height [mm] No.of Poles [pcs] Position of earth [h]
INTERLOCKED SOCKET 3P 32A 2h 2425761 2425761 UB 232-2 S Green >300-500 >50 1.10 151 3/2P+E 2
INTERLOCKED SOCKET 3P 32A 4h 2425762 2425762 UB 232-4 S Yellow 50/60 100-130 1.10 151 3/2P+E 4
INTERLOCKED SOCKET 3P 32A 6h 2425763 2425763 UB 232-6 S Blue 50/60 200-250 1.10 151 3/2P+E 6
INTERLOCKED SOCKET 3P 32A 9h 2425764 2425764 UB 232-9 S Red 50/60 380-415 1.10 151 3/2P+E 9
INTERLOCKED SOCKET 3P 32A 12h 2425765 2425765 UB 232-12 S Grey 50/60 Matning fr.isolertransf. 1.10 151 3/2P+E 12
INTERLOCKED SOCKET 4P 32A 2h 2425766 2425766 UB 332-2 S Green >300-500 >50 1.12 151 4/3P+E 2
INTERLOCKED SOCKET 4P 32A 3h 2425767 2425767 UB 332-3 S Red 50/60 380-440 1.12 151 4/3P+E 3
INTERLOCKED SOCKET 4P 32A 4h 2425768 2425768 UB 332-4 S Yellow 50/60 100-130 1.12 151 4/3P+E 4
INTERLOCKED SOCKET 4P 32A 5h 2425769 2425769 UB 332-5 S Black 50/60 600-690 1.12 151 4/3P+E 5
INTERLOCKED SOCKET 4P 32A 6h 2425770 2425770 UB 332-6 S Red 50/60 400 1.12 151 4/3P+E 6
INTERLOCKED SOCKET 4P 32A 7h 2425771 2425771 UB 332-7 S Black 50/60 480-500 1.12 151 4/3P+E 7
INTERLOCKED SOCKET 4P 32A 9h 2425772 2425772 UB 332-9 S Blue 50/60 230 1.12 151 4/3P+E 9
INTERLOCKED SOCKET 4P 32A 11h 2425773 2425773 UB 332-11 S Red 100-300 >50 1.12 151 4/3P+E 11
INTERLOCKED SOCKET 5P 32A 2h 2425774 2425774 UB 432-2 S Green >300-500 >50 1.15 153 5/3PN+E 2
INTERLOCKED SOCKET 5P 32A 3h 2425775 2425775 UB 432-3 S Red 50/60 380-440 1.15 153 5/3PN+E 3
INTERLOCKED SOCKET 5P 32A 4h 2425776 2425776 UB 432-4 S Yellow 50/60 100-130 1.15 153 5/3PN+E 4
INTERLOCKED SOCKET 5P 32A 6h 2425777 2425777 UB 432-6 S Red 50/60 230/400 1.15 153 5/3PN+E 6
INTERLOCKED SOCKET 5P 32A 7h 2425778 2425778 UB 432-7 S Black 50/60 480-500 1.15 153 5/3PN+E 7
INTERLOCKED SOCKET 5P 32A 9h 2425779 2425779 UB 432-9 S Blue 50/60 208-250 1.15 153 5/3PN+E 9
INTERLOCKED SOCKET 5P 32A 11h 2425780 2425780 UB 432-11 S Red 60 440-460 1.15 153 5/3PN+E 11

Accessories for Interlocked sockets 32A IP44

Name E-number Article number Type designation Description
AUX SWITCH FOR UB AUX SWITCH FOR UB 3155360 3155360 HLPK KU/KUE Auxiliary switches
