Device boards

Device panels have type M2 meter areas and MCM 300 and also have space for short-circuit terminal blocks for current transformer metering. Unit board size M2.
E-number
2270837
Article number
2270837

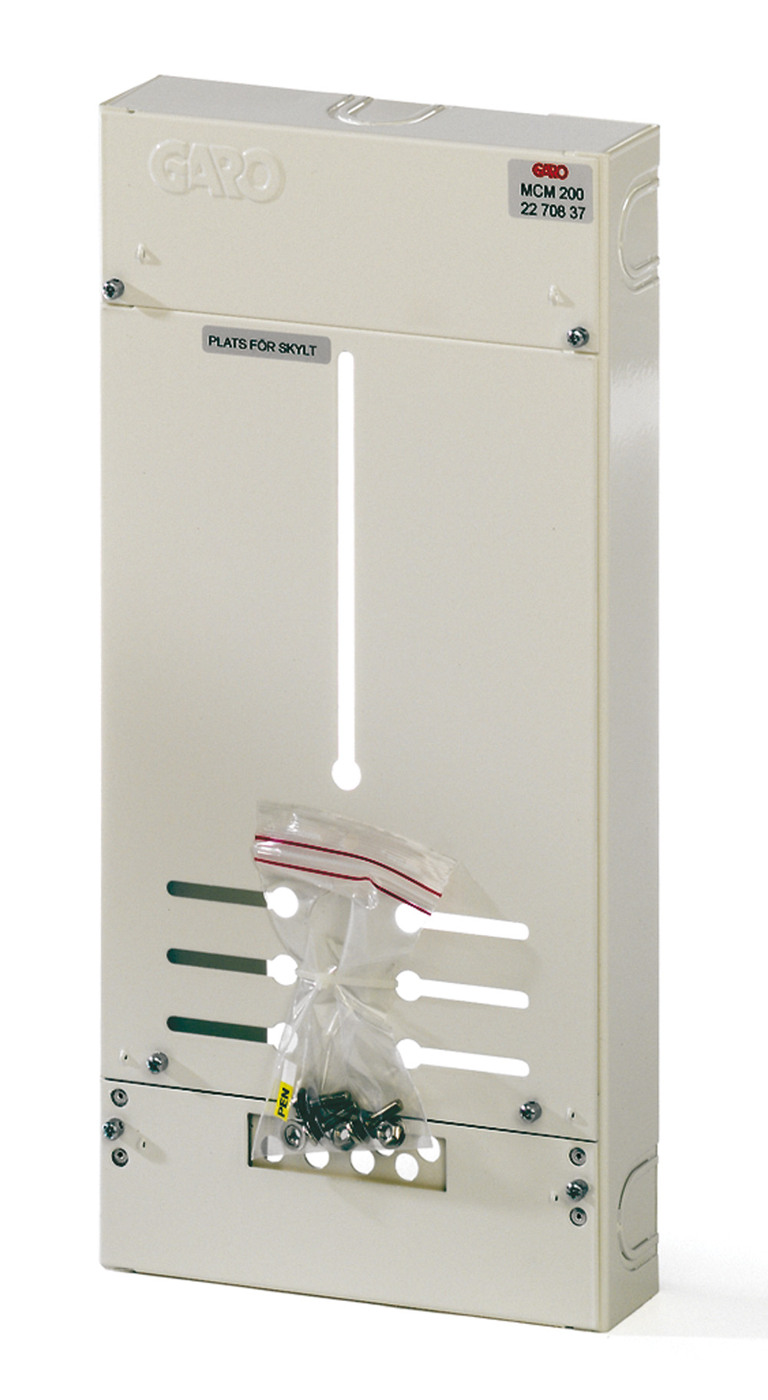

Type designation MCM 200
Degree of protection [IP] 30C
Colour RAL9010 White
Standard SS 430 01 01
Package size [pcs] 1
Width [mm] 205
Height [mm] 430
Depth [mm] 60
Netweight [kg] 1.90
Materials Sheet steel
Outgoing connection Cu 10
Size for meter 2
Name UNIT BOARD M2
E-number 2270837
Article number 2270837

Accessories for Device boards

Name E-number Article number Type designation Description
MFM1 SCREW-KIT MFM1 SCREW-KIT 2270899 2270899 MFMI Screwkit MFM1
