METERBOARD SW FUSE 1PL2 25A 3P

Meter boards with switch and fuse

The meter board is equipped with the customer’s power switches and meter fuses that are positioned on the meter board. Flexible and complete products for energy measurement. Meter board with switch and fuse 1place meterplace size2 25A 3-poles.
E-number
2272205
Article number
354644
Support
Degree of protection [IP] 30C
Colour RAL9010 White
Standard SS 430 01 01
Package size [pcs] 1
Materials Sheet steel

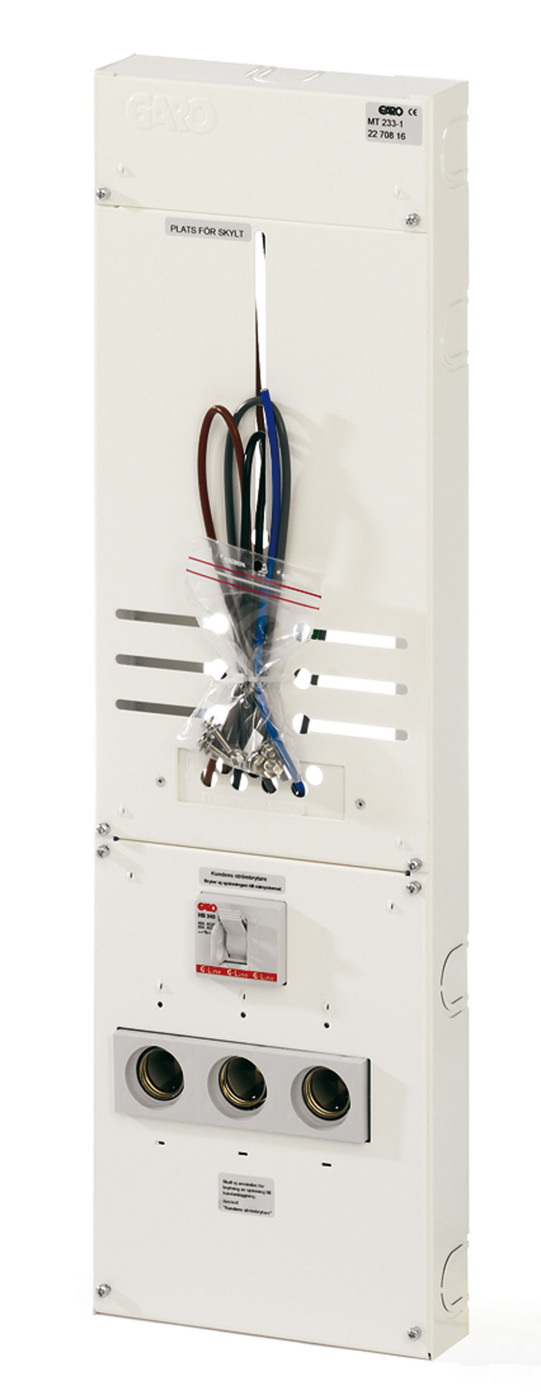

Name METERBOARD SW FUSE 1PL2 25A 3P
E-number 2272205
Article number 354644
Type designation GMT 233-1
Width [mm] 205
Height [mm] 690
Depth [mm] 60
Netweight [kg] 4
Switch [A] 40
Outgoing connection Al/Cu 16
Size for meter 2
Measurement fuse [A] 25
Incoming terminal Cu [mm²] CU 5x35

More variants of Meter boards with switch and fuse

E-number Article number Type designation Width [mm] Height [mm] Depth [mm] Netweight [kg] Switch [A] Outgoing connection Size for meter Measurement fuse [A] Incoming terminal Cu [mm²]
METER B.SW,FUSE 1PL2 80A 2270815 2270815 MT 211-35A-1 205 690 60 4.10 80 Cu 35 2 35 CU 5x35
METER B.SW,FUSE 1PL2 80A 3POL 2270817 2270817 MC 333-63A-1 235 775 60 5.60 80 Cu 35 3 63 CU 5x35
METERBOARD COMBI UNIT 2270835 2270835 MTS 233-1 322 372 75 3.70 40 Cu 10 2 25 CU 5x16
METERBOARD SW FUSE 1PL1 25A 2272204 354643 GMT 111-1 205 390 60 2.30 40 Al/Cu 16 1 25 CU (N+PE) 10
METERBOARD SW FUSE 1PL2 25A 3P 2272205 354644 GMT 233-1 205 690 60 4 40 Al/Cu 16 2 25 CU 5x35

Accessories for Meter boards with switch and fuse

Name E-number Article number Type designation Description
MAIN SW MODULAR 3P 40A MAIN SW MODULAR 3P 40A 2142854 2142854 HB 340 Main switch modular 40A 3-pole
MAIN SW MODULAR 4P 40A MAIN SW MODULAR 4P 40A 2142855 2142855 HB 440 Main switch modular 40A 4-pole
MAIN SW MODULAR 3P 80A MAIN SW MODULAR 3P 80A 2142856 2142856 HB 380 Main switch modular 80A 3-pole
MAIN SW MODULAR 4P 80A MAIN SW MODULAR 4P 80A 2142857 2142857 HB 480 Main switch modular 80A 4-pole
FUSE BASE Dll 1P FUSE BASE Dll 1P 2260420 2260420 DII Fuse base DII 1 poles 25A 50mm
FUSE BASE DIII 1P FUSE BASE DIII 1P 2260422 2260422 DIII Fuse base DIII 1 poles 63A 52,5mm
TERMINAL BLOCK 595 TERMINAL BLOCK 595 2270622 2270622 KACL 595 Terminal block 595
TBS AL/CU CONNECTION SET TBS AL/CU CONNECTION SET 2270628 2270628 TBS Connectionset TBS Al/Cu
FUSE SEALING II FUSE SEALING II 2270888 2270888 SH II Fuse sealing II
FUSE SEALING III FUSE SEALING III 2270889 2270889 SH III Fuse sealing III
MFM1 SCREW-KIT MFM1 SCREW-KIT 2270899 2270899 MFMI Screwkit MFM1
KKP 416 CONNECTION CLAMP KKP 416 CONNECTION CLAMP 2394700 2394700 KKP 416 Connection clamp 416
KKP 435 L CONNECTION CLAMP KKP 435 L CONNECTION CLAMP 2394701 2394701 KKP 435L Connection clamp 435L
