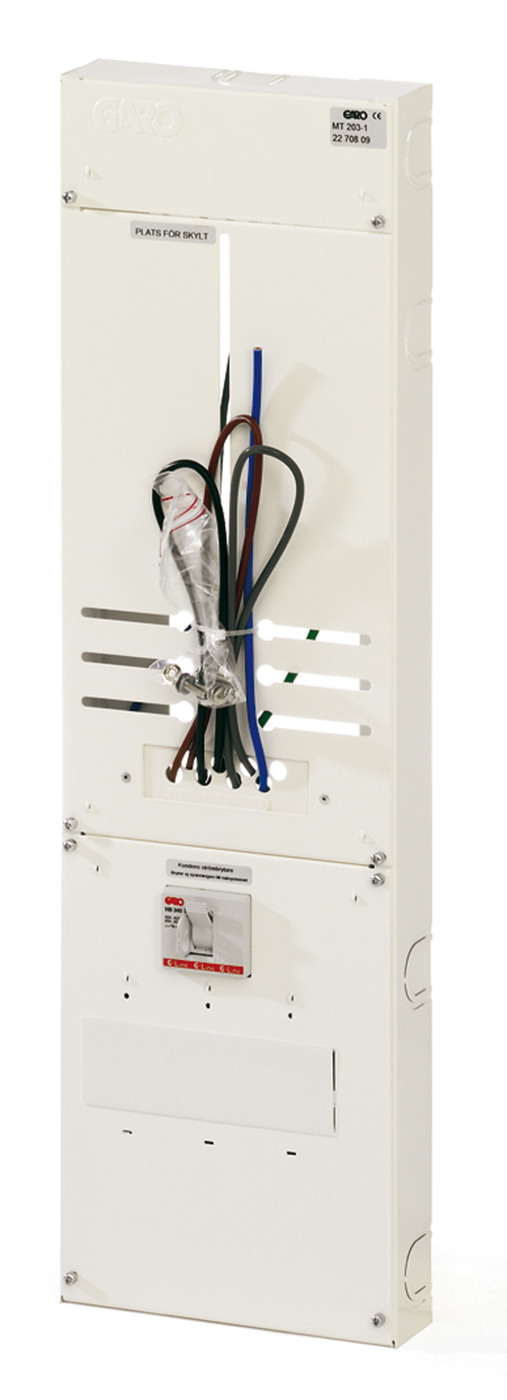

METER BOARD W.SW 1PL2 40A

Meter boards with switch

The meter board is equipped with the customer’s power switches that are positioned on the meter board. When using these meter boards the meter fuses are usually located in the adjacent switchgear under sealable contact protection. Meter panel with switch 1-place 2 40A 3pole.
E-number
2270809
Article number
2270809
Support
Degree of protection [IP] 30C
Colour RAL9010 White
Standard SS 430 01 01
Package size [pcs] 1
Depth [mm] 60
Materials Sheet steel
Name METER BOARD W.SW 1PL2 40A
E-number 2270809
Article number 2270809
Type designation MT 203-1
No.of Poles [pcs] 3
Width [mm] 205
Height [mm] 690
Netweight [kg] 3.70
Switch [A] 40
Incoming terminal Cu/Al [mm²] 5x35
Outgoing connection Cu 10
Size for meter 2
Measurement fuse [A] 25

More variants of Meter boards with switch

E-number Article number Type designation No.of Poles [pcs] Width [mm] Height [mm] Netweight [kg] Switch [A] Incoming terminal Cu/Al [mm²] Outgoing connection Size for meter Measurement fuse [A]
METER BOARD W.SW 1PL2 40A 2270809 2270809 MT 203-1 3 205 690 3.70 40 5x35 Cu 10 2 25
METER BOARD W.SW 1PL2 80A 2270811 2270811 MT 303-1 3 235 775 5.20 80 5x35 Cu 35 3 63
METER BOARD W.SW 1PL1 40A 2270812 2270812 MT 101-1 1 205 390 2.20 40 (L+N+PE) 10 Cu 10 1 25

Accessories for Meter boards with switch

Name E-number Article number Type designation Description
MAIN SW MODULAR 3P 40A MAIN SW MODULAR 3P 40A 2142854 2142854 HB 340 Main switch modular 40A 3-pole
MAIN SW MODULAR 4P 40A MAIN SW MODULAR 4P 40A 2142855 2142855 HB 440 Main switch modular 40A 4-pole
MAIN SW MODULAR 3P 80A MAIN SW MODULAR 3P 80A 2142856 2142856 HB 380 Main switch modular 80A 3-pole
MAIN SW MODULAR 4P 80A MAIN SW MODULAR 4P 80A 2142857 2142857 HB 480 Main switch modular 80A 4-pole
FUSE BASE Dll 1P FUSE BASE Dll 1P 2260420 2260420 DII Fuse base DII 1 poles 25A 50mm
FUSE BASE DIII 1P FUSE BASE DIII 1P 2260422 2260422 DIII Fuse base DIII 1 poles 63A 52,5mm
TERMINAL BLOCK 595 TERMINAL BLOCK 595 2270622 2270622 KACL 595 Terminal block 595
TBS AL/CU CONNECTION SET TBS AL/CU CONNECTION SET 2270628 2270628 TBS Connectionset TBS Al/Cu
FUSE SEALING II FUSE SEALING II 2270888 2270888 SH II Fuse sealing II
FUSE SEALING III FUSE SEALING III 2270889 2270889 SH III Fuse sealing III
MFM1 SCREW-KIT MFM1 SCREW-KIT 2270899 2270899 MFMI Screwkit MFM1
KKP 416 CONNECTION CLAMP KKP 416 CONNECTION CLAMP 2394700 2394700 KKP 416 Connection clamp 416
KKP 435 L CONNECTION CLAMP KKP 435 L CONNECTION CLAMP 2394701 2394701 KKP 435L Connection clamp 435L
