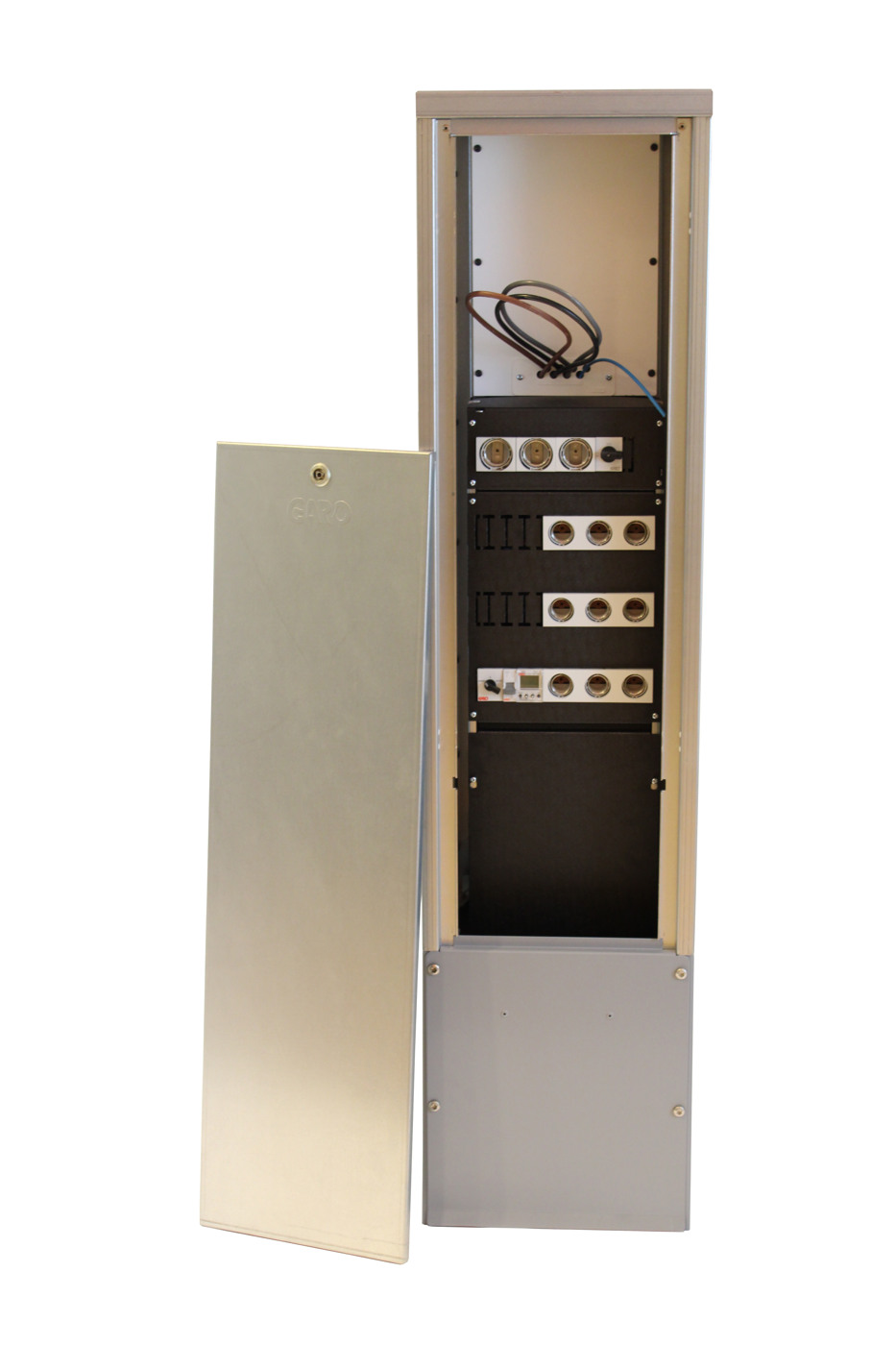

Lighting cabinet time switch 3 groups

Complete lighting cabinet equipped with a wooden board for meters of consumption. The lighting is activated via internal control with astrour where setting of location / coordinates automatically adjusts and controls according to the rising and setting of the sun. (The Astro function can be switched off.) Possibility of annual calendar and weekly program by programming from the watch's digital display. QR code provides access to wiring diagram with E-number for all included components. Lighting cabinet with time switch, 3 outgoing Dll groups.
E-number
0736028
Article number
353768
Type designation GBS-3DAU
Rated current [A] 63
Degree of protection [IP] 34D
Colour Grey
Frequency [Hz] 50
Rated voltage [V AC] 400
Standard IEC 61439-5
Package size [pcs] 1
Netweight [kg] 56
Width [mm] 372
Height [mm] 1140
Depth [mm] 250
Materials Magnelis
Short-circuit current [kA] 25
Fuse size 3XDll
Incoming terminal Cu [mm²] 50 Al/Cu
Impact strength IK10
Outgoing terminal [mm²] 16 Cu
Light relay No
Time switch Yes
Measurement Yes
Contactor [A] 65
Name CABINET LIGHT 3 ROW T SWITCH
E-number 0736028
Article number 353768
