CABINET LIGHT 3 ROW L RELAY

Lighting cabinet light relay 3 groups

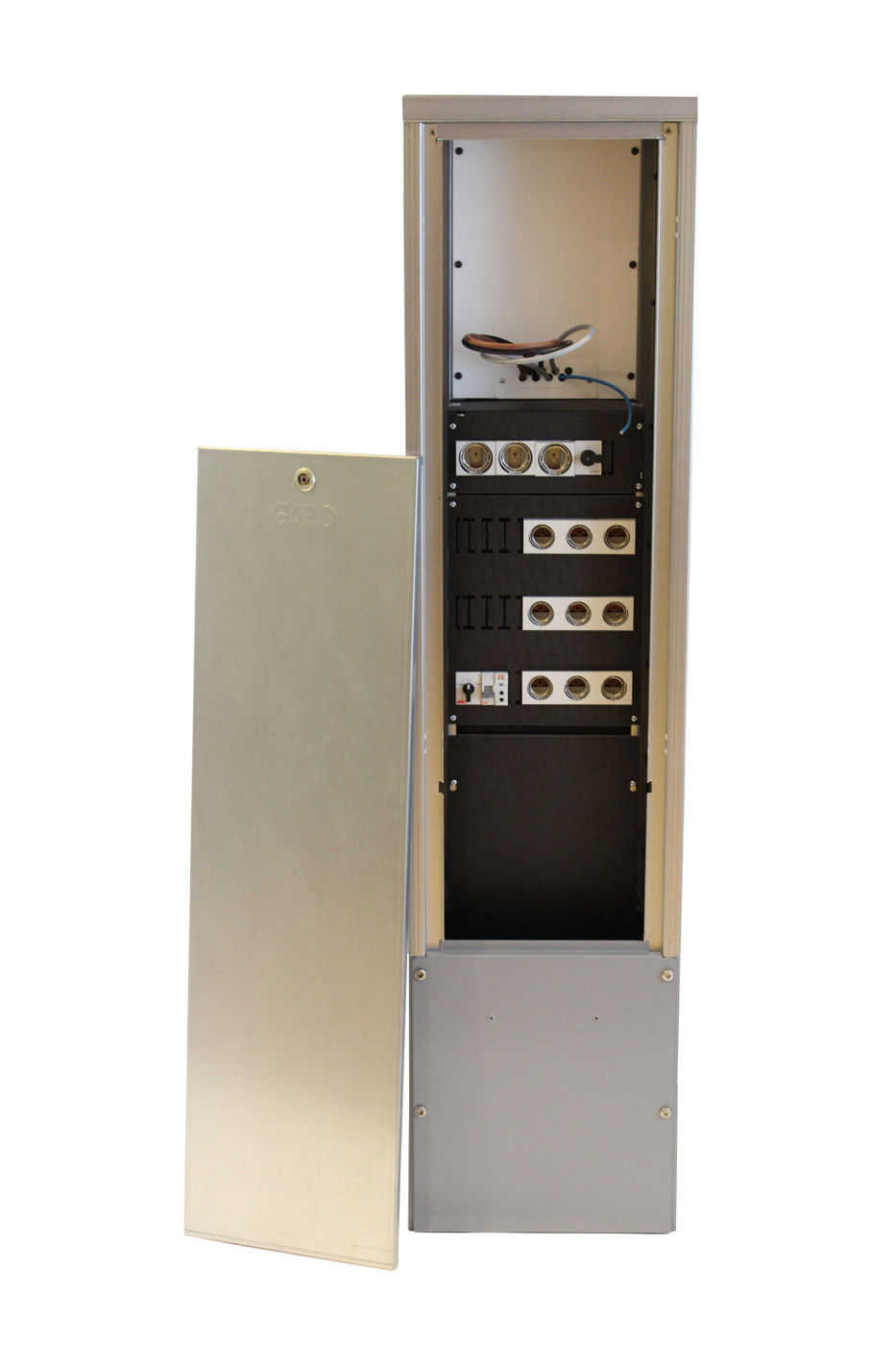

Complete lighting cabinet equipped with a wooden board for meters of consumption. The lighting is activated via internal control with a light relay, where the sensor is delivered separately for installation in a suitable place. The sensitivity of the light sensor is adjustable in two ranges, 1-100 Lx and 100-50000 Lx, with adjustable time delay. QR code provides access to wiring diagram with E-number for all included components. All cabinets with light relay control have space for incoming fuse up to 63A. Lighting cabinet with light relay and extern sensor, 3 outgoing Dll groups.
E-number
0736025
Article number
353765
Support
Rated current [A] 63
Rated voltage [V AC] 400
Frequency [Hz] 50
Degree of protection [IP] 34D
Colour Grey
Standard EN 61439-5
Package size [pcs] 1
Width [mm] 372
Height [mm] 1140
Depth [mm] 250
Netweight [kg] 56
Materials Magnelis
Short-circuit current [kA] 25
Fuse size 3XDll
Incoming terminal Cu/Al [mm²] 50 Al/Cu
Impact strength IK10
Outgoing terminal [mm²] 16 Cu
Light relay Yes
Time switch No
Measurement Yes
Contactor [A] 65
Name CABINET LIGHT 3 ROW L RELAY
E-number 0736025
Article number 353765

Accessories for Lighting cabinet light relay 3 groups

Name E-number Article number Type designation Description
SNOWMARKER BAR 1250MM SNOWMARKER BAR 1250MM 0731403 353850 Snow marker bar 1250mm complete with screw for attachment
LID TEMPORARY POWER 2 522MM LID TEMPORARY POWER 2 522MM 0731404 353851 Door for withdrawal of temporary electricity
GROUNDPLATE 2 522MM GROUNDPLATE 2 522MM 0731405 353860 Ground plate for leg support 522mm
ROCKMOUNT ROCKMOUNT 0731407 353864 Mounting bracket for mounting cabinets in rock
WALLSUPPORT 250MM WALLSUPPORT 250MM 0731408 353866 Wall support 250mm for support against the facade with attachment to the side of the cabinet
GROUNDPLATE 372MM GROUNDPLATE 372MM 0731406 353894 Ground plate for leg support 372mm
