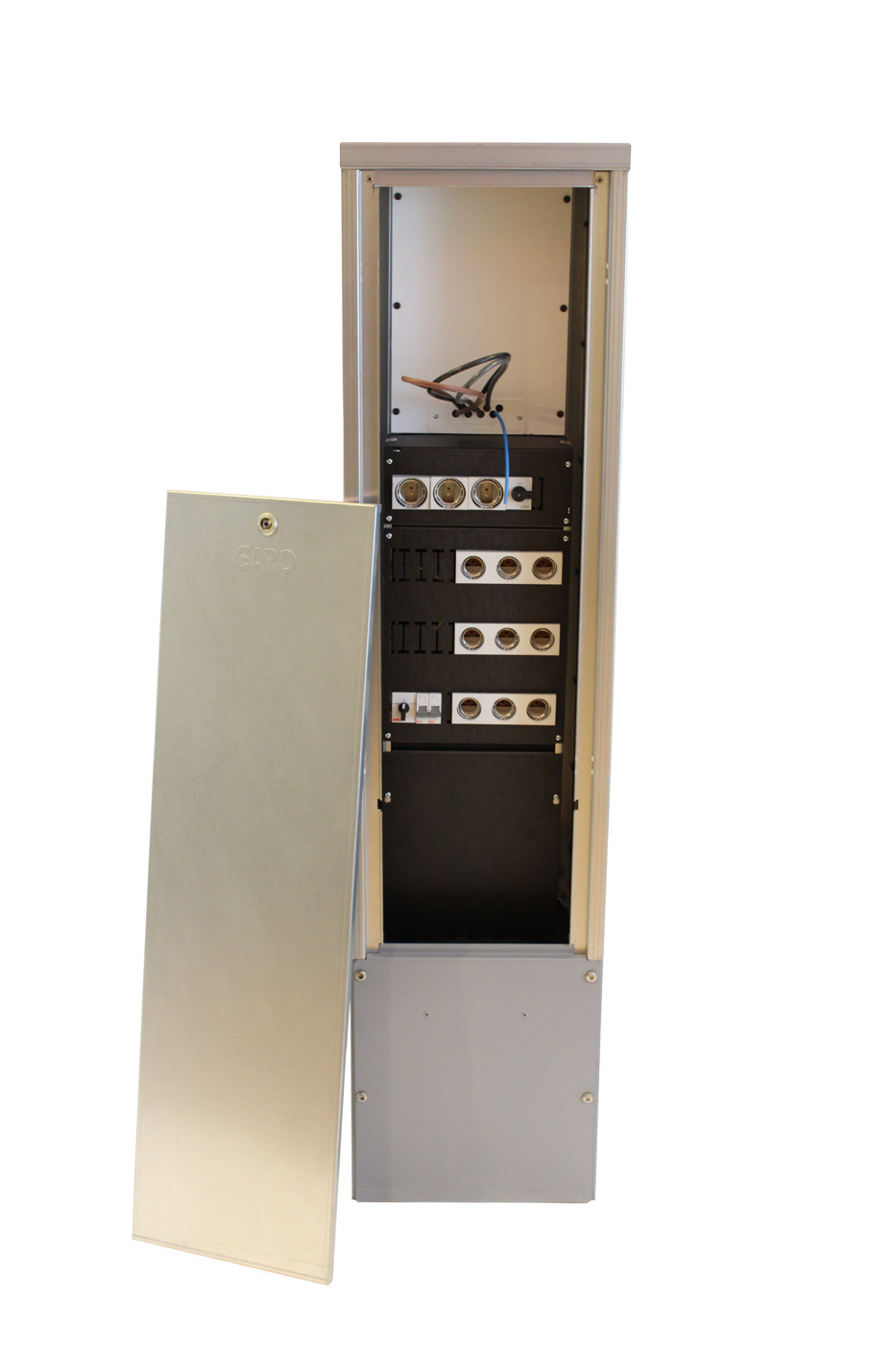

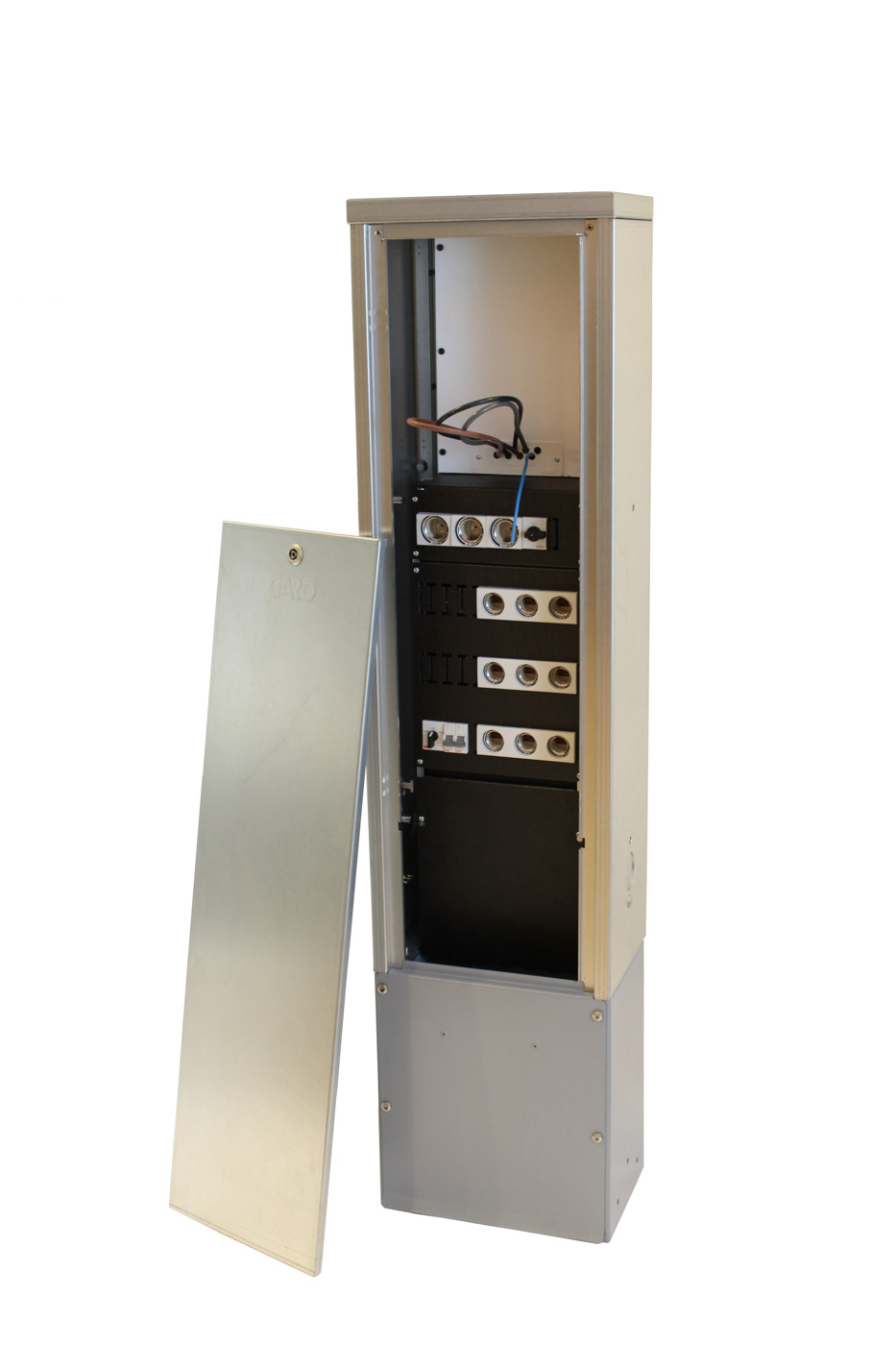

Lighting cabinet external control 3 groups

Complete lighting cabinet equipped with a wooden board for meters of consumption. The lighting is activated either via external control from the light relay or via external supply. The QR code on the label provides access to the wiring diagram with E-number for all components. All cabinets with external control have space for incoming fuse up to 63A. Lighting cabinet external control with 3 outgoing DII groups.
E-number
0736021
Article number
353761
Type designation GBS-3D
Rated current [A] 63
Degree of protection [IP] 34D
Colour Grey
Frequency [Hz] 50
Rated voltage [V AC] 400
Standard EN 61439-5
Package size [pcs] 1
Netweight [kg] 56
Width [mm] 372
Height [mm] 1140
Depth [mm] 250
Materials Magnelis
Short-circuit current [kA] 25
Fuse size 3XDll
Incoming terminal Cu/Al [mm²] 50 Al/Cu
Impact strength IK10
Outgoing terminal [mm²] 16 Cu
Light relay No
Time switch Yes
Measurement Yes
Contactor [A] 65
Name CABINET LIGHT 3 ROW
E-number 0736021
Article number 353761
