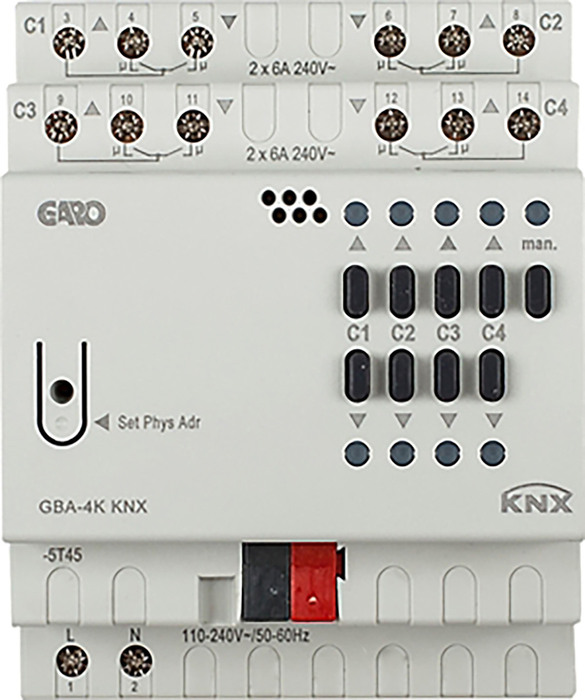

BLIND ACTUATOR 4-W

Jalusiaktor

Jalusiaktor Blind actuator 4-way
Article number
108398
Support
Frequency [Hz] 50-60
Degree of protection [IP] 20
Temperature range [C] -5...+45
Package size [pcs] 1
Height [mm] 90
Connection type Screwterminal|Busconnection:Busclamp
Supply voltage [VAC] 110-240
Installation DIN-rail
Max cable connection [mm²] Enkel ledare:0.5 mm² (Ø 0.8) to 4 mm²|Mångledare med ändhylsa:0.5 mm² (Ø 0.8) to 2.5 mm²
Brytutgång Potentialfri
Name BLIND ACTUATOR 4-W
Article number 108398
Type designation GBA-4K KNX
Modules [pcs] 4
Standard EN 60669
Width [mm] 72
Depth [mm] 70
Netweight [kg] 0.23
Channels [pcs] 4
Contact type NO contacts, 6A
Stand by [W] ~ 0,3
Operating voltage KNX [mA] ≤4

Manual

More variants of Jalusiaktor

E-number Article number Type designation Modules [pcs] Standard Width [mm] Depth [mm] Netweight [kg] Channels [pcs] Contact type Stand by [W] Operating voltage KNX [mA] Kopplingseffekt
BLIND ACTUATOR 4-W 108398 GBA-4K KNX 4 EN 60669 72 70 0.23 4 NO contacts, 6A ~ 0,3 ≤4
BLIND ACTUATOR 8-W 108399 GBA-8K KNX 8 EN 60669 144 64 0.43 8 NO contacts, 6A ~ 0,5 ≤4
BLIND ACTUATOR 4-W 24V 108400 GBA-4K24 KNX 4 EN 60730-1 72 70 0.29 4 Change-over contacts, 6A ~ 0,5 ~4 6 A (vid 24 V DC)
