Junction boxes PR 22,5

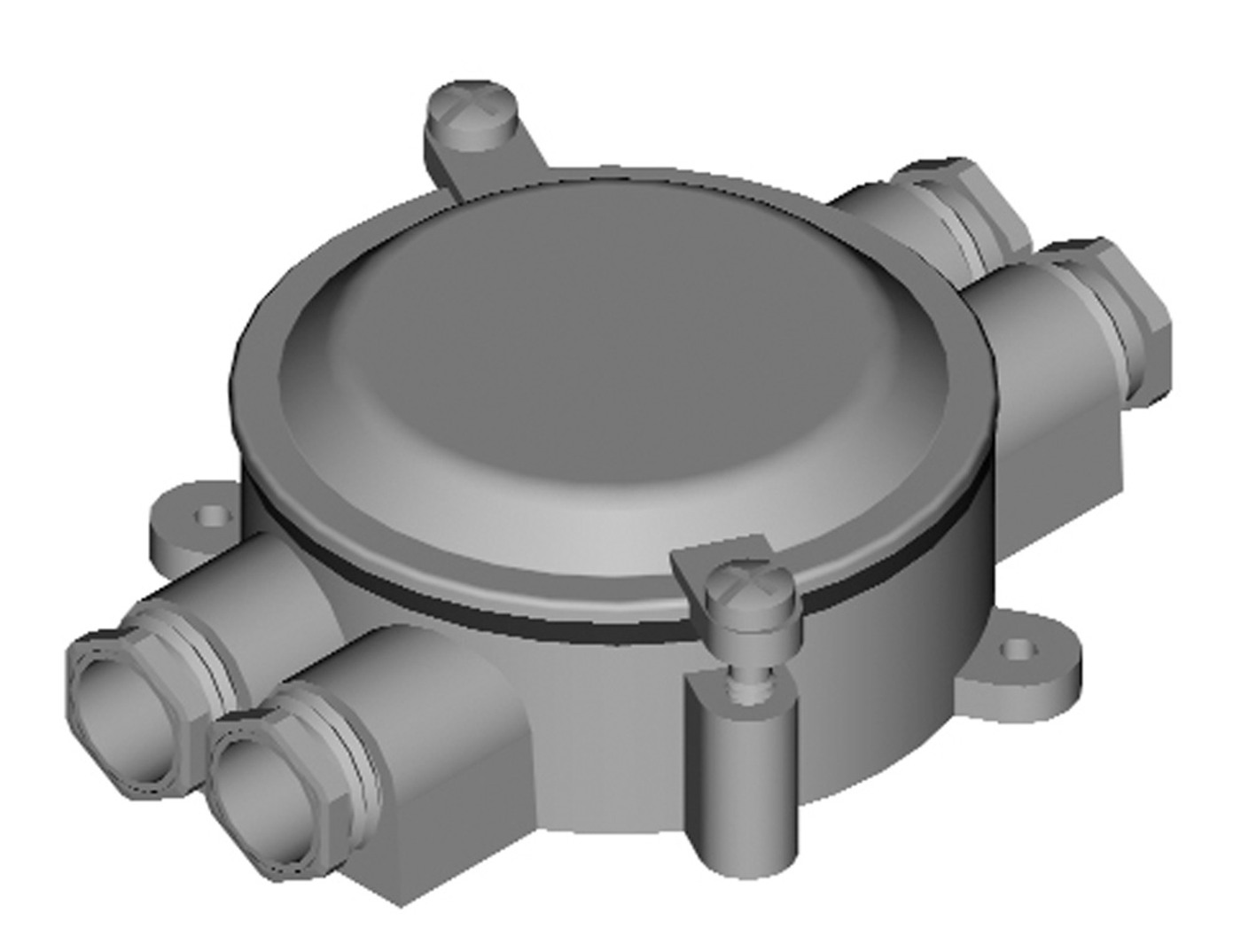

GARO’s junction boxes with thread 22.5 are made of die-cast light alloy and are supplied with cover, rubber seal, terminal block with 4 sheath terminals, earth screw and complete cable glands. Junction box diecast light alloy 10/22,5
Degree of protection [IP] | 67 |
---|---|
Wire flexible [mm²] | Max 3x4 |
Colour | RAL7000 Grey |
Standard | EN 60998-1-2, EN 60670-1 |
Package size [pcs] | 5 |
Width [mm] | 104 |
Height [mm] | 112 |
Depth [mm] | 42 |
Materials | Light metal die-cast |
Isolation voltage [V] | 500 |
Wire solid [mm²] | Max 3x4 |
Thread size | 22,5 |
Inner diameter Ø [mm] | 76 |
Inner depth [mm] | 28 |
Name | JUNC BOX ALLOY 10/22,5 |
---|---|
Article number | 1439610 |
Netweight [kg] | 0.29 |
