• CONNECT BOX W SOCKET 10A - 1
  • CONNECT BOX W SOCKET 10A - 2

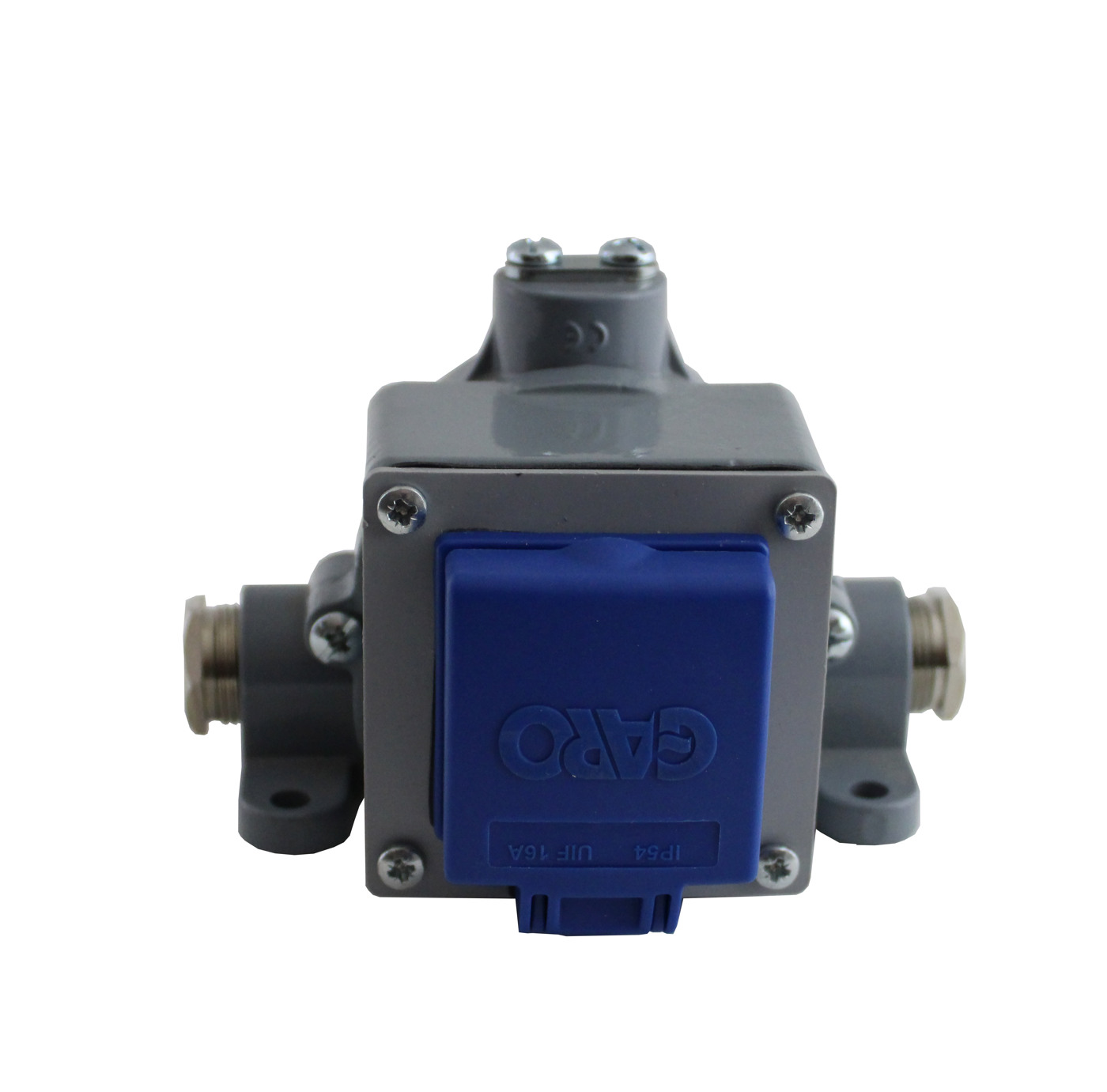

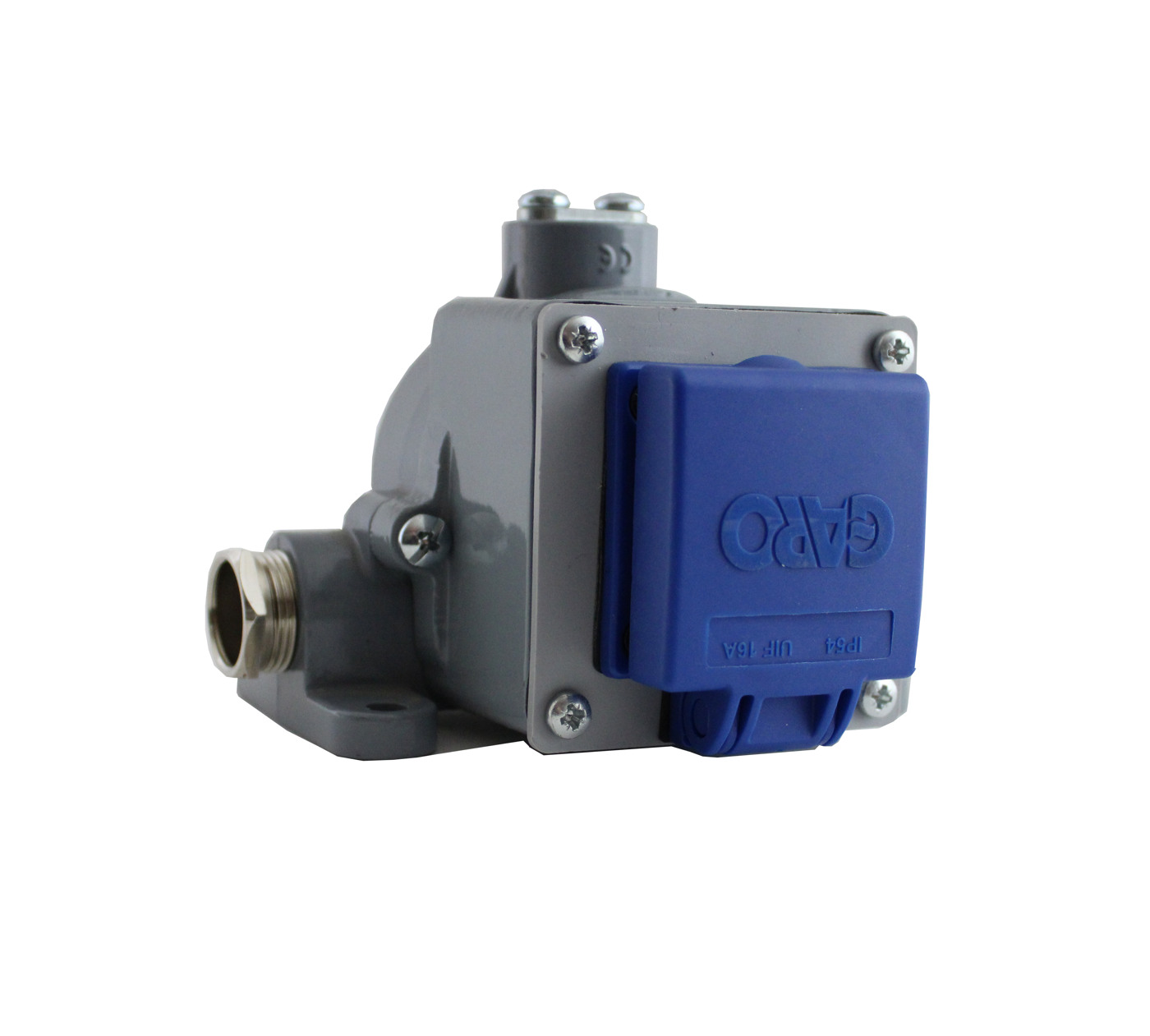

Connection boxes with socket

GARO’s junction boxes are made of die cast aluminium. Supplied with 2-pin wall sockets with earth connection, terminal block with 4 sheath clamps for max 3x4mm² cable cross-section per terminal clamp, and earth screw and 2 complete cable glands PR22.5. Connetion box with socket 10A
E-number
1440080
Article number
1440080
Support
Wire flexible [mm²] 3x4
Colour RAL7000 Grey
Standard EN 60998-1-2, EN 60670-1
Width [mm] 100
Netweight [kg] 0.55
Materials Light metal
Wire solid [mm²] 3x4
Thread size 22,5
Name CONNECT BOX W SOCKET 10A
E-number 1440080
Article number 1440080
Type designation VUJ 210
Rated current [A] 10
Degree of protection [IP] 54
Height [mm] 120
Depth [mm] 110

More variants of Connection boxes with socket

E-number Article number Type designation Rated current [A] Degree of protection [IP] Height [mm] Depth [mm]
CONNECT BOX W SOCKET 10A 1440080 1440080 VUJ 210 10 54 120 110
CONNECT BOX W SOCKET 16A 1440084 1440084 VUJ 216 16 44 145 145

Accessories for Connection boxes with socket

Name E-number Article number Type designation Description
MOUNTING PLATE JUNCTION BOXES MOUNTING PLATE JUNCTION BOXES 1440090 1440090 VDFA Mountig plate for VDA, VUJ and anglebracket LOCUS.
