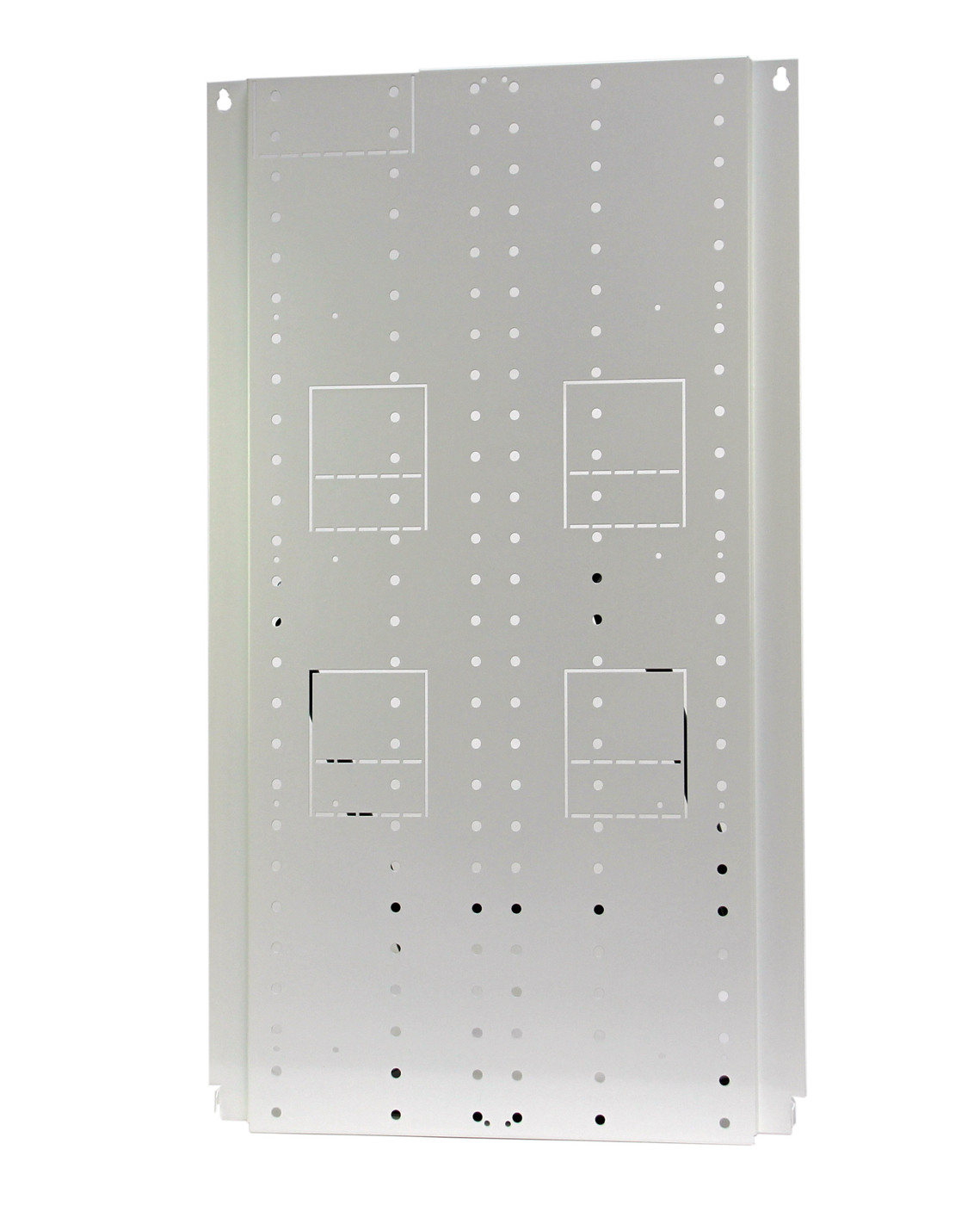

MOUNT PLATE 4R 80M

Mounting plates

The mounting plates are suitable for frontchassie, used for equipment assemblies. Mounting plate 4rows 80modules
E-number
2290060
Article number
356065
Support
Degree of protection [IP] 20
Colour RAL9010 White
Standard EN 61439-3
Depth [mm] 3
Netweight [kg] 1.75
Materials Sheet metal
Name MOUNT PLATE 4R 80M
E-number 2290060
Article number 356065
Type designation MPM 80-4
Modules [pcs] 80
Width [mm] 376
Height [mm] 587

More variants of Mounting plates

E-number Article number Type designation Modules [pcs] Width [mm] Height [mm]
MOUNT PLATE 3R 60M 2290059 356064 MPM 60-3 60 376 453
MOUNT PLATE 4R 80M 2290060 356065 MPM 80-4 80 376 587
MOUNT PLATE 5R 100M 2290061 356066 MPM 100-5 100 376 712
MOUNT PLATE 3R 75M 2290080 356088 MPM 75-3 75 436 453

Accessories for Mounting plates

Name E-number Article number Type designation Description
MOUNTING PLATE TRAFO MOUNTING PLATE TRAFO 2260586 2260586 MP-T Mounting plate transformer bracket,fits media mouting plate.
DINRAIL MEDIA DINRAIL MEDIA 2260587 2260587 M-D Dinrail media for DIN-mounted components
MOUNTING PLATE RJ24 MOUNTING PLATE RJ24 2270720 2270720 MP RJ-24 Mounting plate RJ45 contacts, 24 outlets á 20x14mm,L10xW290xH77.
DISTRIB BOXES DISTRIB BOXES 2270868 2270868 MPGM Distribution boxes with 5 schukooutlets,fits media mounting plate .
MOUNTING PLATE RJ45 MOUNTING PLATE RJ45 2270881 2270881 MPRM Mounting plate for RJ45 contacts, 12 outlets á 15x20mm,L58XW166XH166,fits media mounting plates.
MOUNTING PLATE SHELVES MOUNTING PLATE SHELVES 2270882 2270882 MPHM Mounting plate shelves,fits media mounting plate.
MOUNTING PLATE 136X166 MOUNTING PLATE 136X166 2270883 2270883 MPMM Mounting plate for self-armament size 136x166,fits media mounting plate.
MOUNTING PLATE 307X156 MOUNTING PLATE 307X156 2270884 2270884 MPMS Mounting plate for self-armament size 307x156,fits media mounting plate.
MOUNTING PLATE LEX12 MOUNTING PLATE LEX12 2271017 2271017 MP-LEX-12 Mounting plate Lex Com Office 12 outlets á 18,5x17,L58XW166XH166,fits media mounting plates.
MOUNTING PLATE LEX 6 MOUNTING PLATE LEX 6 2271018 2271018 MP-LEX-6 Mounting plate Lex Com Office 6 outlets á 18,5x17,L58XW166XH90,fits media mounting plates.
MOUN PLAT ELKO MOUN PLAT ELKO 2271019 2271019 MP-ELKO Mounting plate Elko slimline 12 outlets á 17,5x44 fits media mounting plate,L58XW166XH166
MOUNTING PLATE KEYS RJ45 MOUNTING PLATE KEYS RJ45 2271020 2271020 MPRM-6 Mounting plate keystone RJ45,6 hole á 14x20mm fits media mounting plate, L58XW499xH90.
