FRONTCHASSI 3R 75M

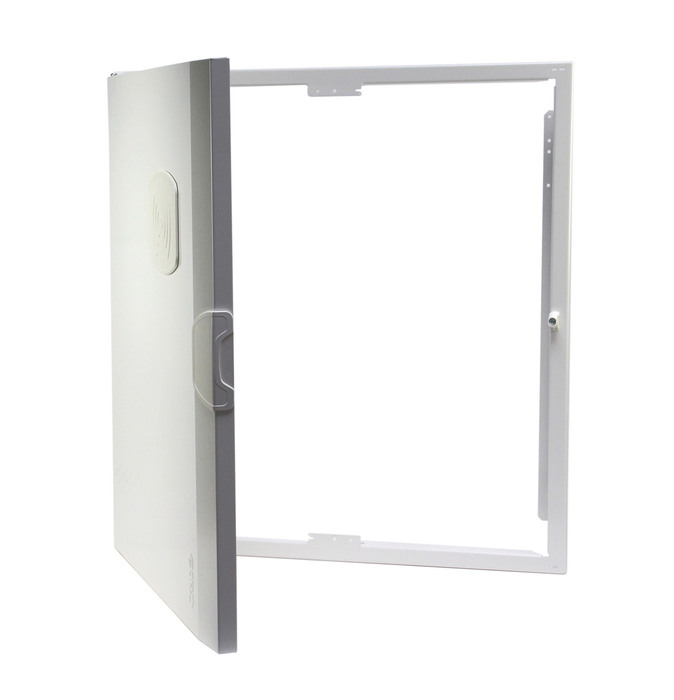

Front chassis

Front chassis for flexible media enclosure. Select the mounting plate and the bottom tray or frame. Frontchassi 3row 75modules
E-number
2290073
Article number
356032
Support
Degree of protection [IP] 20
Colour RAL9010 White
Standard EN 61439-3
Materials Sheet metal
Name FRONTCHASSI 3R 75M
E-number 2290073
Article number 356032
Type designation NIM 75-3T
Modules [pcs] 75
Width [mm] 515
Height [mm] 547
Depth [mm] 115
Netweight [kg] 3.40
Location Surface/Recessed

More variants of Front chassis

E-number Article number Type designation Modules [pcs] Width [mm] Height [mm] Depth [mm] Netweight [kg] Location
FRONTCHASSI 3R 42M 2290065 356027 NIM 42-3T 42 Recessed
FRONTCHASSI 3R 60M 2290068 356030 NIM 60-3T 60 418 547 120 4.20 Surface/Recessed
FRONTCHASSI 4R 80M 2290057 356031 NIM 80-4T 80 418 747 120 5 Surface/Recessed
FRONTCHASSI 3R 75M 2290073 356032 NIM 75-3T 75 515 547 115 3.40 Surface/Recessed
FRONTCHASSI 5R 100M 2290058 356045 NIM 100-5T 100 418 872 120 4.80 Surface/Recessed
FRONTCHASSI 6R 120M 2290069 356071 NIM 120-6T 120 Recessed
