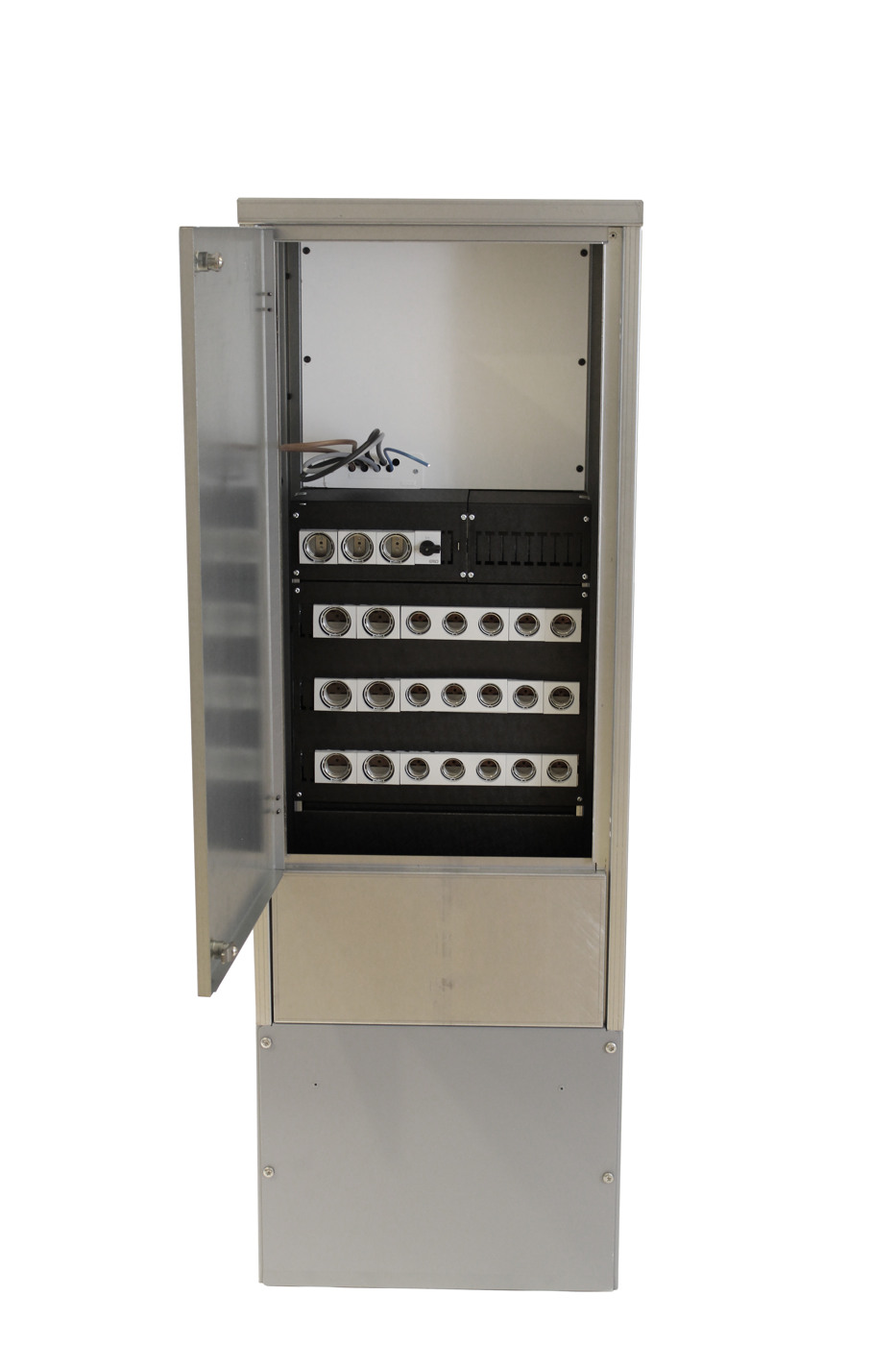

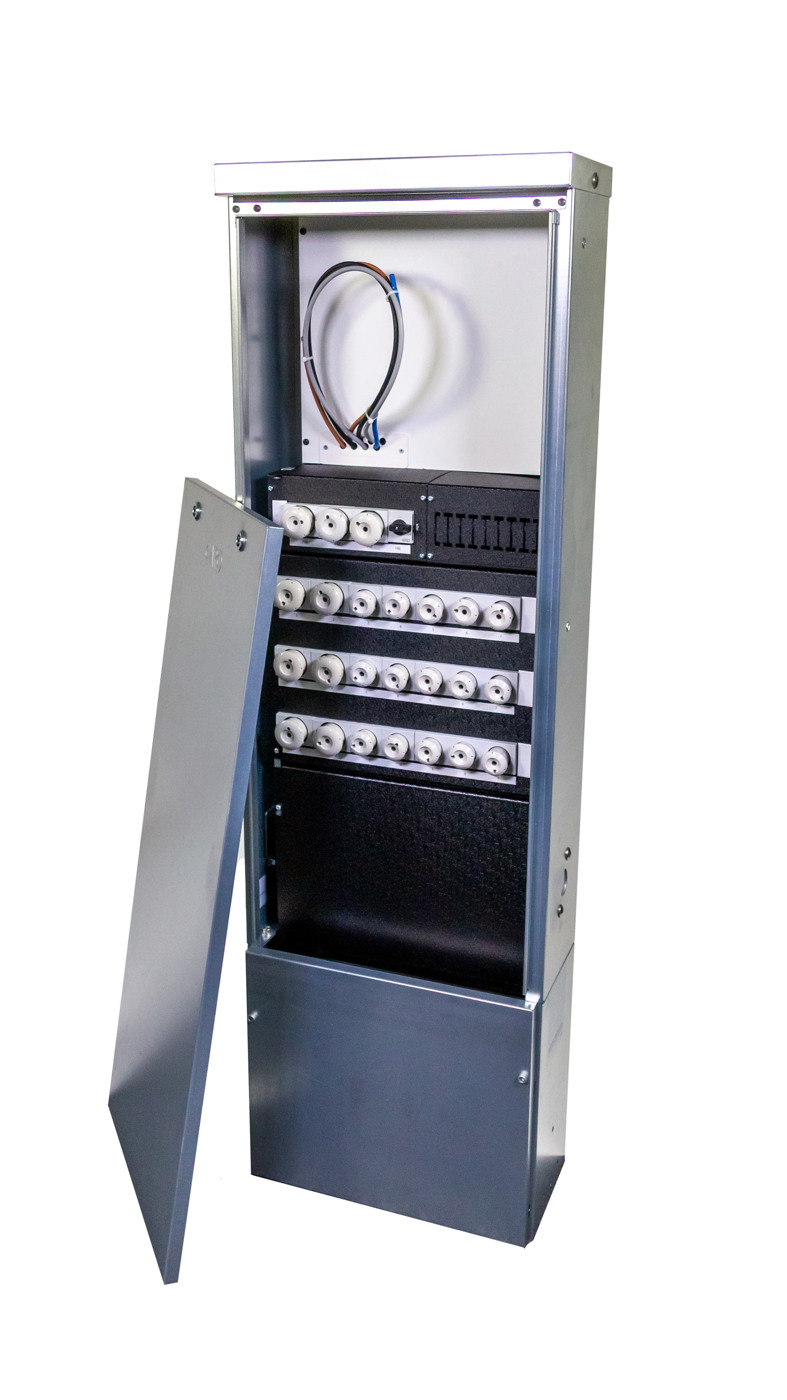

Distribution cabinet meter 5 groups
Distribution cabinet with Diazed fuses for 1 outgoing DII group. Incoming terminal 50 mm2 Al / Cu and output terminal is 16 mm2 Cu. The cabinet insert is equipped with a wooden board for mounting meters, meter fuse holders and main switches for outgoing groups. Intended for Meter fuse max 25A. Distribution cabinets 5 groups 63A meter
E-number
0731665
0731665
Article number
354599
354599
| Type designation | GDCM-5D63 |
|---|---|
| Rated current [A] | 25 |
| Rated voltage [V AC] | 400 |
| Frequency [Hz] | 50 |
| Degree of protection [IP] | 34D |
| Colour | Grey |
| Standard | IEC 61439-1, -5 |
| Package size [pcs] | 1 |
| Materials | Stål |
| Short-circuit current [kA] | 25 |
| Fuse size | DII |
| Incoming terminal Cu [mm²] | 50 Al/Cu |
| Mounting method | Ground mounted |
| Impact strength | IK10 |
| Outgoing terminal [mm²] | 16 Cu |
| Measurement | Yes |
| Name | DISTRIBUTION CABINETS 5GR 63A MET |
|---|---|
| E-number | 0731665 |
| Article number | 354599 |
