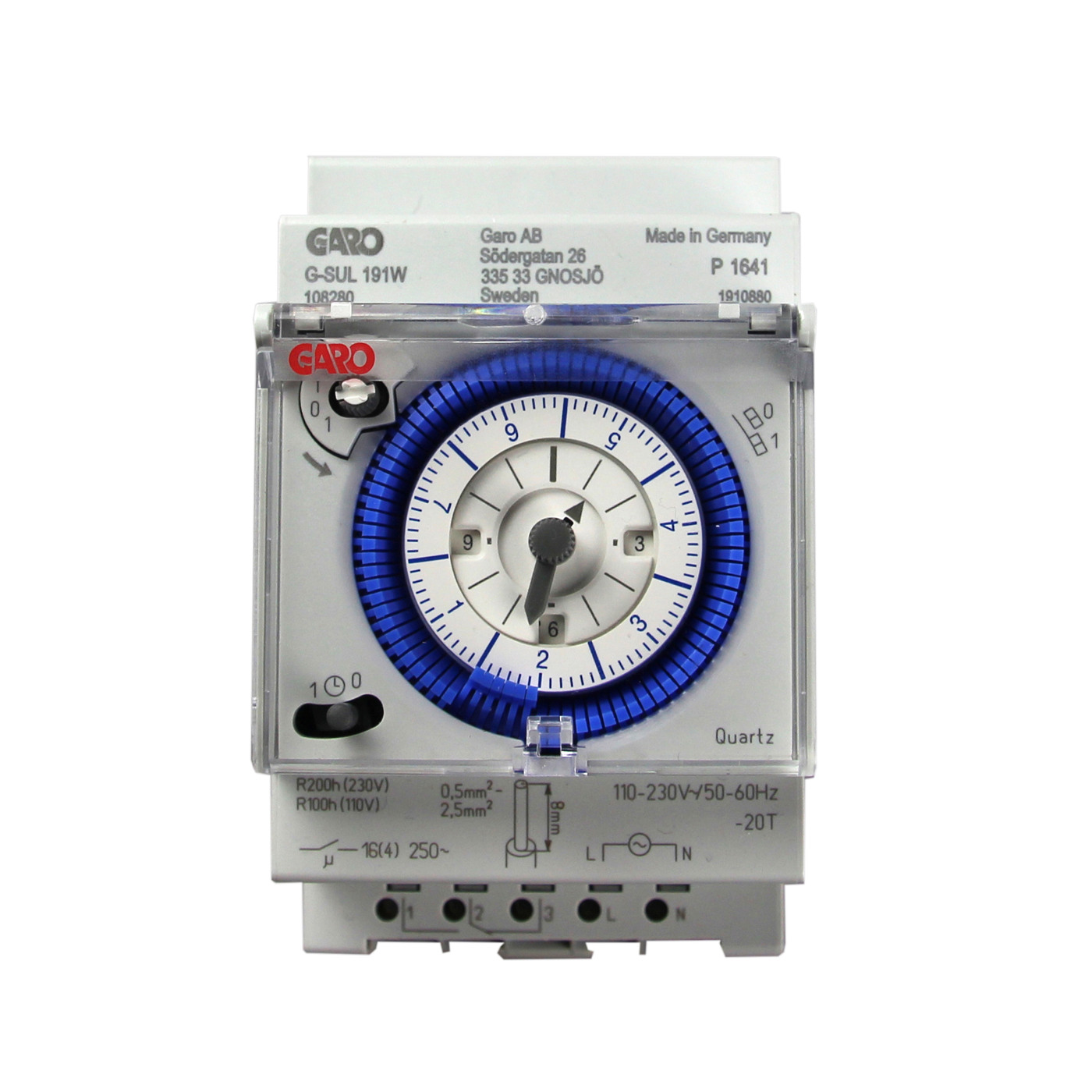

Timer mechanical

GARO mechanical timers are very simple to set and are available in both daily and weekly versions. Time switch 1 channel 3 module weekly
E-number
1330400
Article number
108280
Wire flexible [mm²] 0,5-2,5
Rated current [A] 16(4)
Degree of protection [IP] 20
Colour Grey
Standard EN 60730-1
Package size [pcs] 1
Height [mm] 90
Connection type Quick connection
Channels [pcs] 1
Operation time meter No
External input No
Manual control Yes
Mounting method DIN-rail
Name TIME SWITCH 1CH 3MOD WEEKLY
E-number 1330400
Article number 108280
Type designation V3MMEK
Frequency [Hz] 50-60
Rated voltage [V AC] 110-230
Temperature range [C] -20...+55
Modules [pcs] 3
Power loss [W] 1,3
Netweight [kg] 0.12
Width [mm] 54
Depth [mm] 60
Function Week clock
Contact type Change-over contacts
Battery [h] 200

More variants of Timer mechanical

E-number Article number Type designation Frequency [Hz] Rated voltage [V AC] Temperature range [C] Modules [pcs] Power loss [W] Netweight [kg] Width [mm] Depth [mm] Function Contact type Battery [h]
TIME SWITCH 1CH 1MOD DAILY 1330398 108278 D1MMEK 50 230 -25...+50 1 0,7 0.07 18 60 Day clock Closing contact
TIME SWITCH 1CH 3MOD WEEKLY 1330400 108280 V3MMEK 50-60 110-230 -20...+55 3 1,3 0.12 54 60 Week clock Change-over contacts 200
