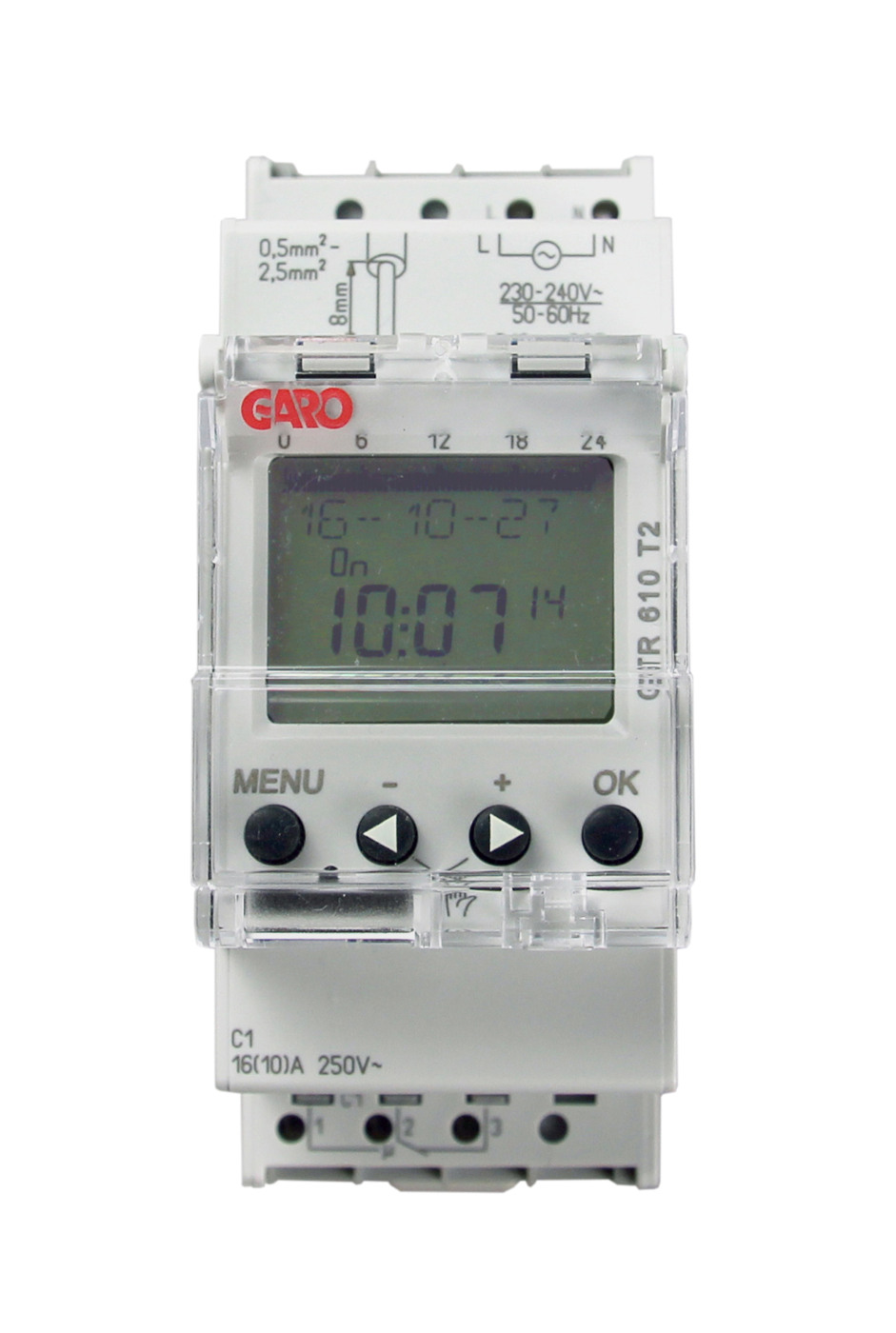

Disc.TIME SWITCH 1CH WEEKLY

Timer day/week

GARO day/week is easy to set. Switching on and off is then repeated daily or weekly, depending on how the timer has been programmed. The timers is available in 1-channel or 2-channel variants. Time switch 1-chanel weekly

Article number
108272

Frequency [Hz]	50-60
Degree of protection [IP]	20
Wire flexible [mm²]	0,5-2,5
Colour	Grey
Standard	EN 60730-1
Package size [pcs]	1
Height [mm]	90
Connection type	Quick connection
Function	Week clock
Manual control	Yes
Mounting method	DIN-rail

Name	Disc.TIME SWITCH 1CH WEEKLY
Article number	108272
Type designation	DV1K
Rated current [A]	16(10)
Rated voltage [V AC]	230-240
Temperature range [C]	-30...+55
Modules [pcs]	2
Power loss [W]	1,3
Width [mm]	36
Depth [mm]	64
Netweight [kg]	0.11
Channels [pcs]	1
Contact type	Change-over contacts
Power reserve [year]	10
Operation time meter	Yes
External input	No
Expiredate	2018-08-06
Replacementarticle	Disc.TIME SWITCH 1CH WEEKLY (108751)
Replacementarticle	108751

More variants of Timer day/week

	E-number	Article number	Type designation	Rated current [A]	Rated voltage [V AC]	Tightening torque [Nm]	Temperature range [C]	Modules [pcs]	Power loss [W]	Width [mm]	Depth [mm]	Netweight [kg]	Channels [pcs]	Contact type	Power reserve [year]	Operation time meter	External input
	1330396	108276	DV1K1M	16(4)	230-240		-25...+55	1	1,3	18	60	0.08	1	Change-over contacts	10	Yes	No
	1330550	108751	DV1KT3	10	230	1,2	-20...+40	2	0,4	36	64	0.10	1		3
	1330551	108752	DV2KT3	10	230	1,2	-20...+40	2	0,4	36	64	0.12	2		3

Accessories for Timer day/week

	Name	E-number	Article number	Type designation	Description
	SOFTWARE KIT AND CARD READER	1330401	108281	G-OB PC	Software kit and card reader
	MEMORY STICK T2 TIME SWITCH	1330554	108755	G-OB-BT	Memory stick T2 time switch bluetooth
