Combi protections

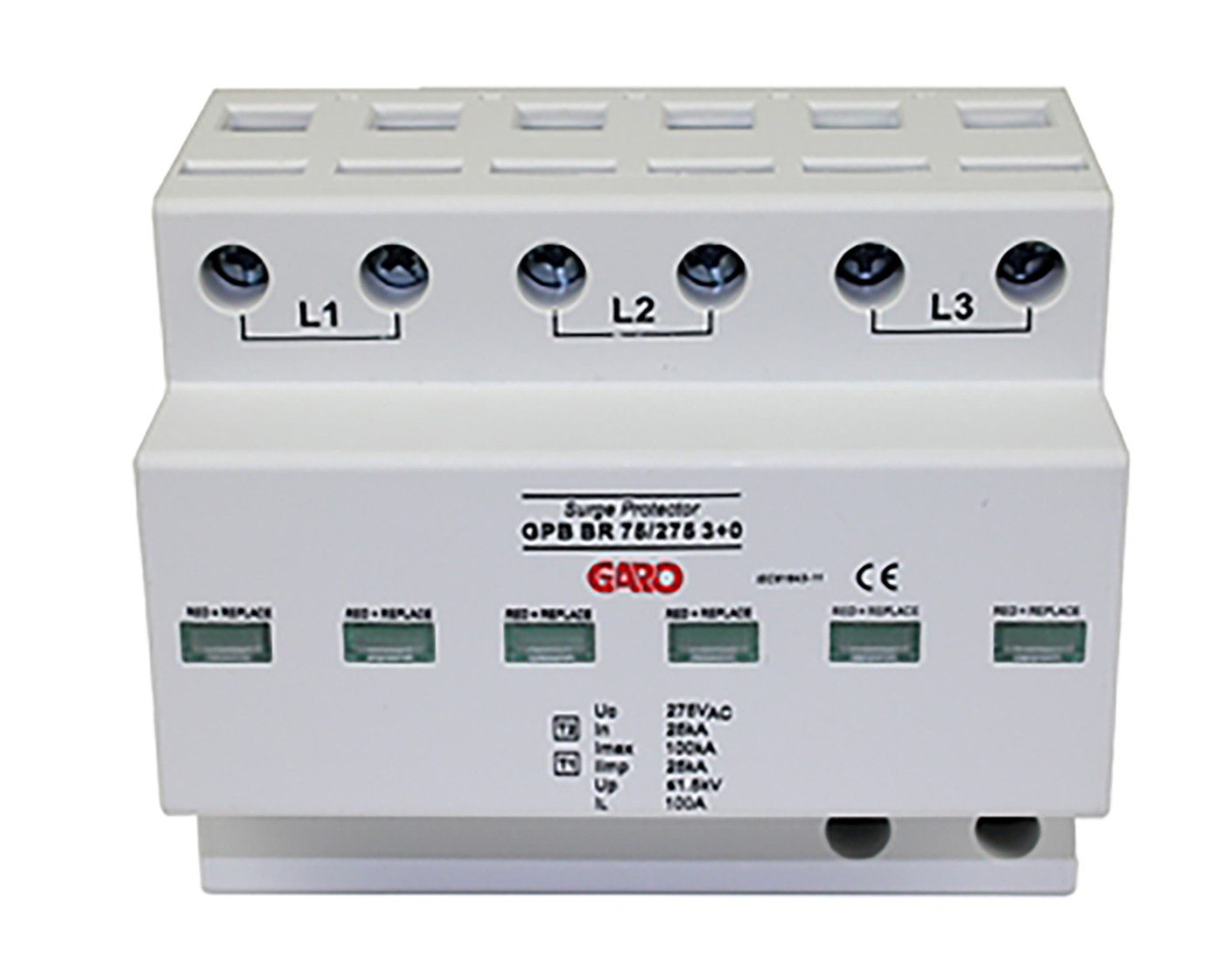

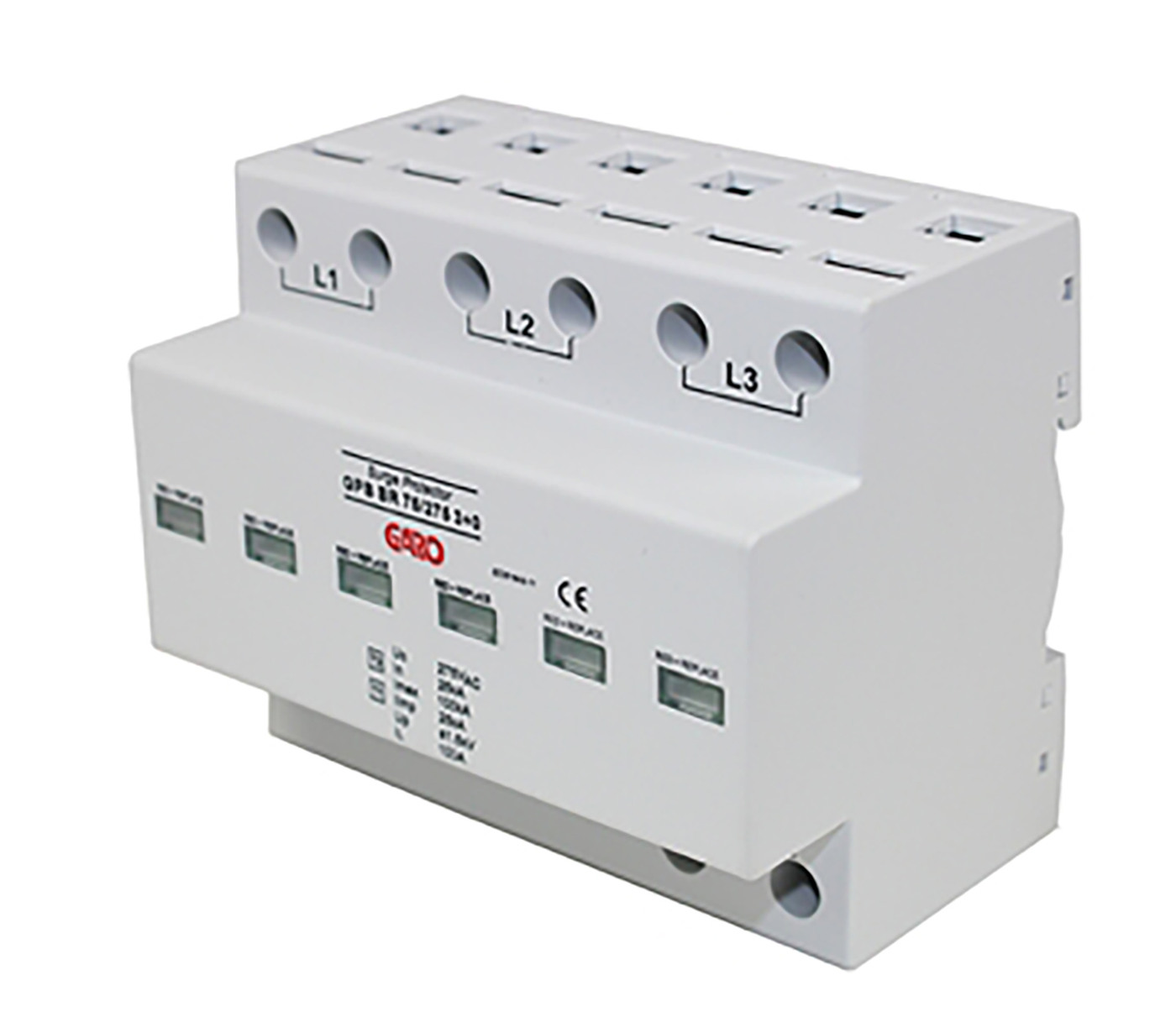

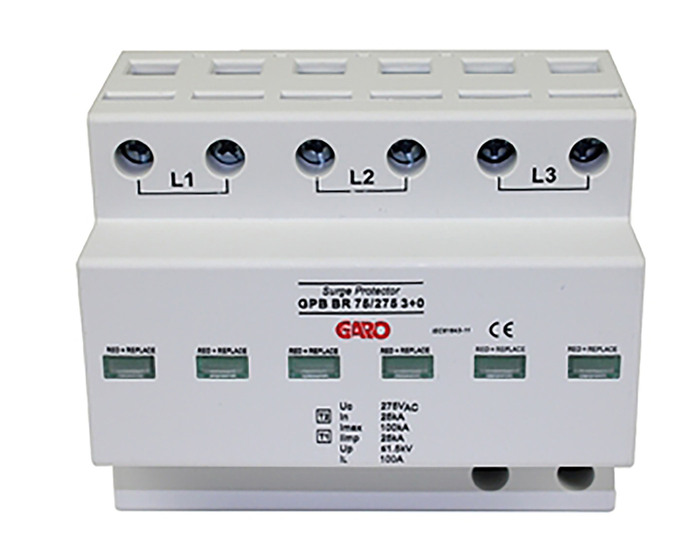

Garo Combination protection provides complete protection to your system as it is a Class I and II protection in a single product. It is also extremely durable, which means that it very rarely triggers and needs to be replaced. Rouch/fine protection 230V 3-pole alarm
E-number
5275000
Article number
109140
Support
Rated voltage [V AC] 230
Degree of protection [IP] 20
Colour Grey
Standard EN 61643-11
Package size [pcs] 1
Materials Plastic
Connection type Screw
Wire solid [mm²] 35
Max rated voltage [V] 275
Alarm contact [pcs] 1 vx
Name ROUGH,-FINE PROT 3P 230V ALARM
E-number 5275000
Article number 109140
Type designation GPB BR 75/275 3+0
Poles 3
Wire flexible [mm²] 25
Temperature range [C] -40...+80
Modules [pcs] 6
Width [mm] 108
Height [mm] 99
Depth [mm] 71
Netweight [kg] 0.86
Claim prefuse [A] 250
Residual stress15kA,8/20u [kV] <0,9
Max shock current(8/20us) [kA] 25
Class/type l, ll

More variants of Combi protections

E-number Article number Type designation Poles Wire flexible [mm²] Temperature range [C] Modules [pcs] Width [mm] Height [mm] Depth [mm] Netweight [kg] Claim prefuse [A] Residual stress15kA,8/20u [kV] Max shock current(8/20us) [kA] Class/type
ROUGH,-FINE PROT 3P 230V ALARM 5275000 109140 GPB BR 75/275 3+0 3 25 -40...+80 6 108 99 71 0.86 250 <0,9 25 l, ll
SURGEPROTECTION CL. I+II 4P 230V ALARM 5275001 109141 GPB BR 1000/275 4+0 4 25 -40...+80 8 144 99 71 1.15 250 <0,9 25 l, ll
