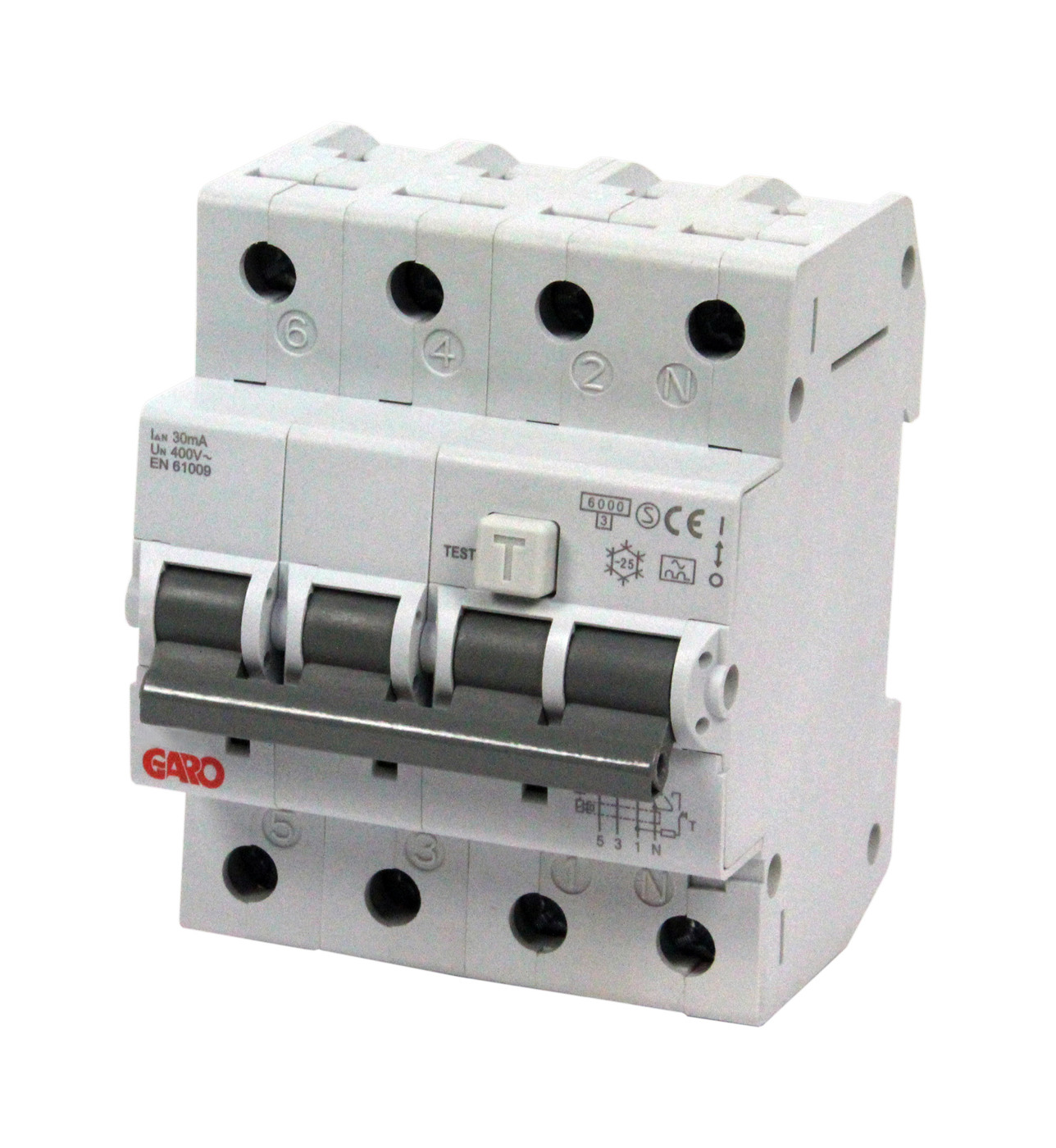

RCBO 6kA 4-pole C-characteristics

RCBOs are used as personal injury and product protection for 3-phase loads and have all-pole breaking. It is possible to connect from both the bottom and top. RCBO GS C-Characteristic 16A 6kA 4-pole
E-number
2163272
Article number
2163272
Wire flexible [mm²] 1,5-25
Degree of protection [IP] 20
Colour Grey
Frequency [Hz] 50/60
Rated voltage [V AC] 230/400
Tightening torque [Nm] 2,5
Temperature range [C] -25...+55
Storage temperature [C] -35...+55
Modules [pcs] 4
Standard EN 61009-1
Package size [pcs] 1
Netweight [kg] 0.50
Width [mm] 72
Poles 4
Materials Plastic
Rated short-circuit cap. [kA] 6
Connection type Screw
Claim prefuse [A] 125
Tripping characteristics C
Leakage current A
Name RCBO GS C-CHAR 16A 4P
E-number 2163272
Article number 2163272
Type designation RCBO GS C16A 4P
Rated current [A] 16
Height [mm] 90
Depth [mm] 75
Sensitivity [mA] 30

More variants of RCBO 6kA 4-pole C-characteristics

E-number Article number Type designation Rated current [A] Height [mm] Depth [mm] Sensitivity [mA]
RCBO GS C16A 300mA 4P 2163188 108334 RCBO GS C16A 300mA 4P 16 45 300
RCBO GS C20A 300mA 4P 2163189 108335 RCBO GS C20A 300mA 4P 20 90 75 300
RCBO GS C-CHAR 6A 4P 2163269 2163269 RCBO GS C6A 4P 6 90 75 30
RCBO GS C-CHAR 10A 4P 2163270 2163270 RCBO GS C10A 4P 10 90 75 30
RCBO GS C-CHAR 13A 4P 2163271 2163271 RCBO GS C13A 4P 13 90 75 30
RCBO GS C-CHAR 16A 4P 2163272 2163272 RCBO GS C16A 4P 16 90 75 30
RCBO GS C-CHAR 20A 4P 2163273 2163273 RCBO GS C20A 4P 20 90 75 30
RCBO GS C-CHAR 25A 4P 2163274 2163274 RCBO GS C25A 4P 25 90 75 30
RCBO GS C-CHAR 32A 4P 2163275 2163275 RCBO GS C32A 4P 32 90 75 30
