RCBO GC B 2P 6A 6kA U

RCBO 6kA 2-pole B-characteristics 1-mod

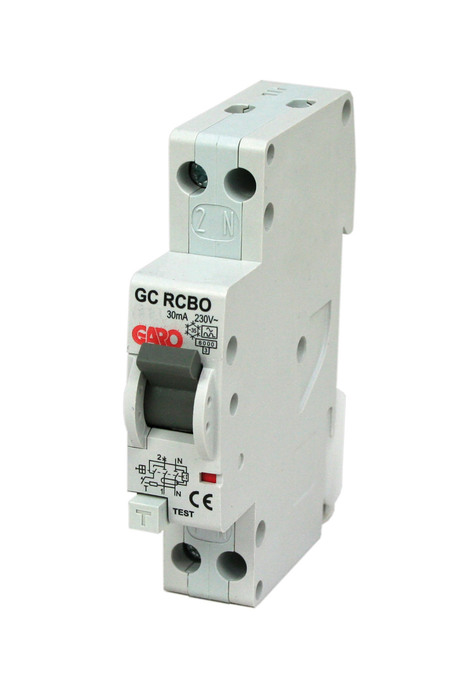

Garo 1-module RCBO is an electronic version that is ideal when space is limited as it is only 1 module wide. The design is suitable for the Swedish outdoor climate as it is tested and approved for -35 degrees. Earth leakage circuit breaker (RCBO) GC B-characteristic 2-poles 6A 6kA 1-module
E-number
2163331
Article number
111366
Support
Poles 2
Rated voltage [V AC] 230/400
Frequency [Hz] 50/60
Degree of protection [IP] 20
Colour Grey
Storage temperature [C] -35...+55
Modules [pcs] 1
Standard EN 61009-1
Package size [pcs] 1
Width [mm] 18
Height [mm] 89
Depth [mm] 77
Netweight [kg] 0.11
Materials Plastic
Rated short-circuit cap. [kA] 6
Connection type Screw
Tripping characteristics B
Sensitivity [mA] 30
Leakage current A
Name RCBO GC B 2P 6A 6kA U
E-number 2163331
Article number 111366
Type designation RCBO B2P 6A 6kA U GC
Rated current [A] 6
Wire flexible [mm²] 1,5-2,5
Tightening torque [Nm] 2,5
Temperature range [C] -25...+55
Claim prefuse [A] 100

More variants of RCBO 6kA 2-pole B-characteristics 1-mod

E-number Article number Type designation Rated current [A] Wire flexible [mm²] Tightening torque [Nm] Temperature range [C] Claim prefuse [A]
RCBO GC B 2P 6A 6kA U 2163331 111366 RCBO B2P 6A 6kA U GC 6 1,5-2,5 2,5 -25...+55 100
RCBO B 2P 10A 6kA U 2163332 111367 RCBO B2P 10A 6kA U GC 6 1,5-2,5 2,5 -25...+55 100
RCBO B 2P 13A 6kA U 2163333 111368 RCBO B2P 13A 6kA U GC 6 1,5-2,5 2,5 -25...+55 100
RCBO B 2P 16A 6kA U 2163334 111369 RCBO B2P 16A 6kA U GC 6 1,5-2,5 2,5 -25...+55 100
RCBO B 2P 20A 6kA U 2163335 111370 RCBO B2P 20A 6kA U GC 6 1,5-2,5 2,5 -25...+55 100
RCCB B 2P 25A 6kA U 2163336 111371 RCBO B2P 25A 6kA U GC 6 1,5-2,5 2,5 -25...+55 100
