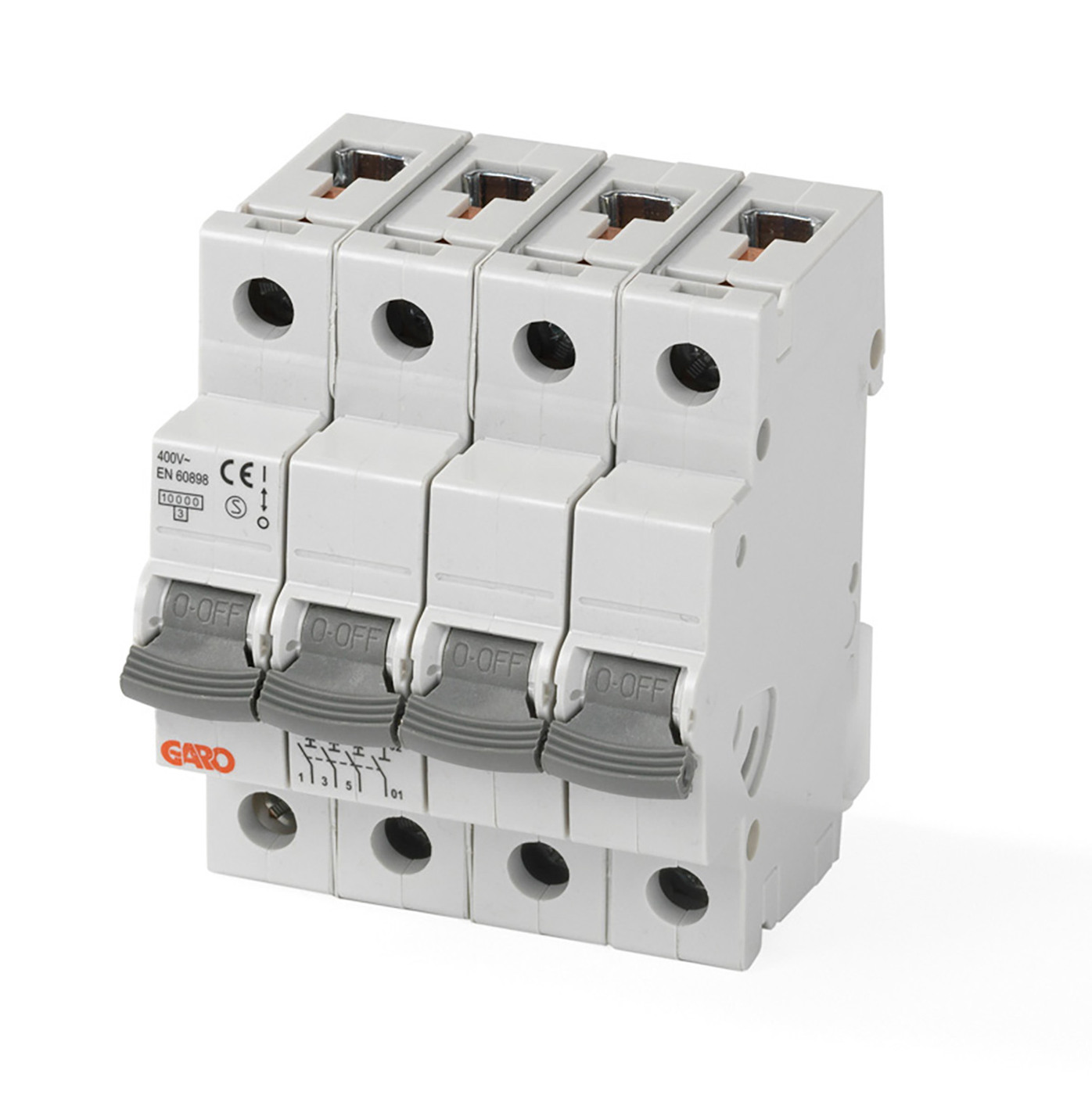

MCB 10kA 4-pole B-characteristics

Miniature circuit breaker 10kA ideal for industrial and residential applications. It is capable of protecting the system against short-circuit currents up to 10kA. It is equipped with a mounting bracket that allows you to remove or install a miniature circuit-breaker even when the phase busbar is installed and is compatible with all GARO busbars for miniature circuit-breakers. MCB GS B-Characteristic 16A 10kA 4-pole
Article number
Wire flexible [mm²] 1-25
Degree of protection [IP] 20
Colour Grey
Frequency [Hz] 50/60
Rated voltage [V AC] 230/400
Tightening torque [Nm] 3,5
Temperature range [C] -25...+55
Storage temperature [C] -35...+55
Modules [pcs] 4
Standard EN 60898-1
Package size [pcs] 3
Width [mm] 68
Height [mm] 90
Depth [mm] 75
Poles 4
Materials Plastic
Rated short-circuit cap. [kA] 10
Connection type Screw
Claim prefuse [A] 125
Tripping characteristics B
Name MCB GS B-KAR 16A 10kA 4P
E-number 2142203
Article number 2142203
Type designation MCB GS B416
Rated current [A] 16
Netweight [kg] 0.42

More variants of MCB 10kA 4-pole B-characteristics

E-number Article number Type designation Rated current [A] Netweight [kg]
MCB GS B-KAR  6A 10kA 4P 2142200 2142200 MCB GS B406 6 0.42
MCB GS B-KAR 10A 10kA 4P 2142201 2142201 MCB GS B410 10 0.42
MCB GS B-KAR 13A 10kA 4P 2142202 2142202 MCB GS B413 13 0.42
MCB GS B-KAR 16A 10kA 4P 2142203 2142203 MCB GS B416 16 0.42
MCB GS B-KAR 20A 10kA 4P 2142204 2142204 MCB GS B420 20 0.42
MCB GS B-KAR 25A 10kA 4P 2142205 2142205 MCB GS B425 25 0.42
MCB GS B-KAR 32A 10kA 4P 2142206 2142206 MCB GS B432 32 0.42
MCB GS B-KAR 40A 10kA 4P 2142207 2142207 MCB GS B440 40 0.46
MCB GS B-KAR 50A 4P 2142208 2142208 MCB GS B450 50 0.46
MCB GS B-KAR 63A 10kA 4P 2142209 2142209 MCB GS B463 63 0.46
