Energymeter 3-phase transformers

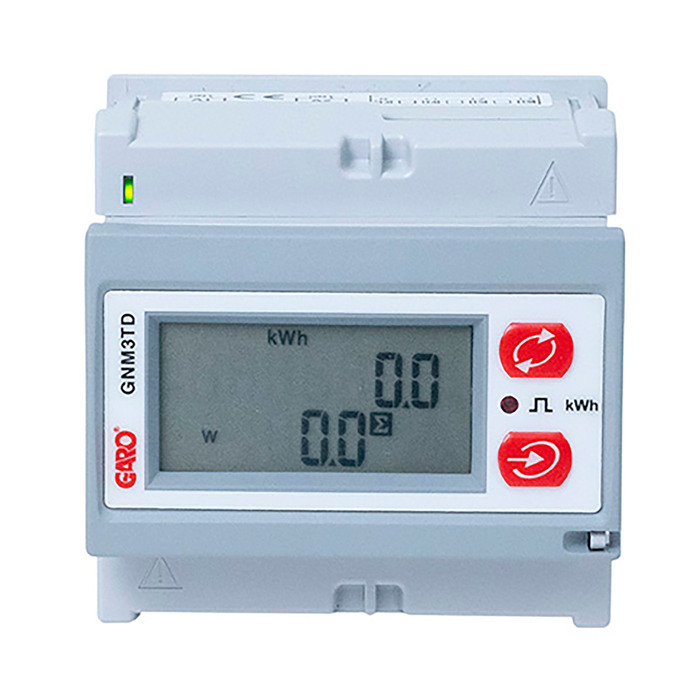

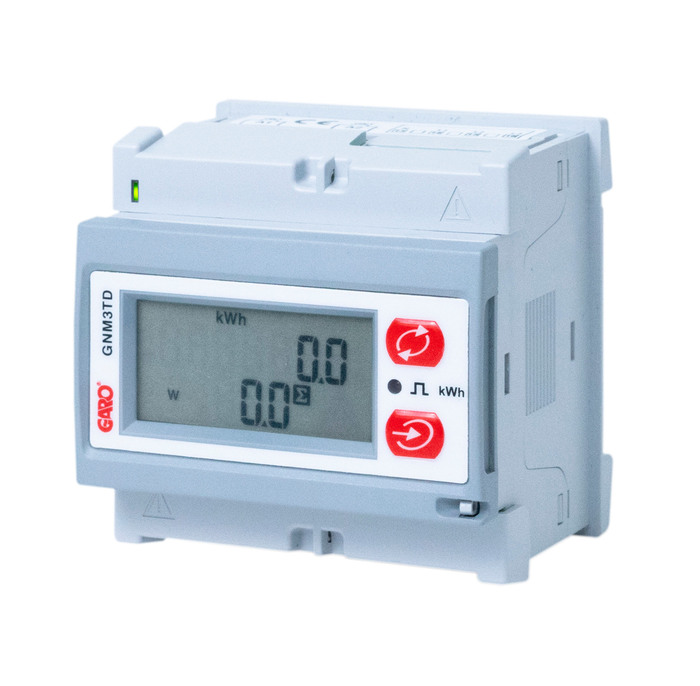

GNM3TD energy meter for 3-phase system when using power transformers is compact, only 4 modules wide and has the possibility to be mounted directly in the cabinet door. The current direction must be correct on the transformers for kWh to count up. The diode on the front of the meter will NOT flash if the current direction is wrong. The blocks are easily connected to the meter by quick couplings. Energymeter 2x3-phase trafo
E-number
0900175
Article number
108480
Type designation GNM3TD
Rated voltage [V AC] 230/400
Frequency [Hz] 50/60
Degree of protection [IP] 20
Wire flexible [mm²] 2,5-16
Colour Grey
Tightening torque [Nm] 0,5
Temperature range [C] -25...+55
Storage temperature [C] -5...+55
Modules [pcs] 4
Interface Modbus RS485
Accuracy class 1
Power loss [W] <1
Phases 3
Package size [pcs] 1
Width [mm] 72
Height [mm] 72
Depth [mm] 58
Netweight [kg] 0.16
Mounting method DIN
Name ENERGYMETER 2X3P TRAFO
E-number 0900175
Article number 108480
