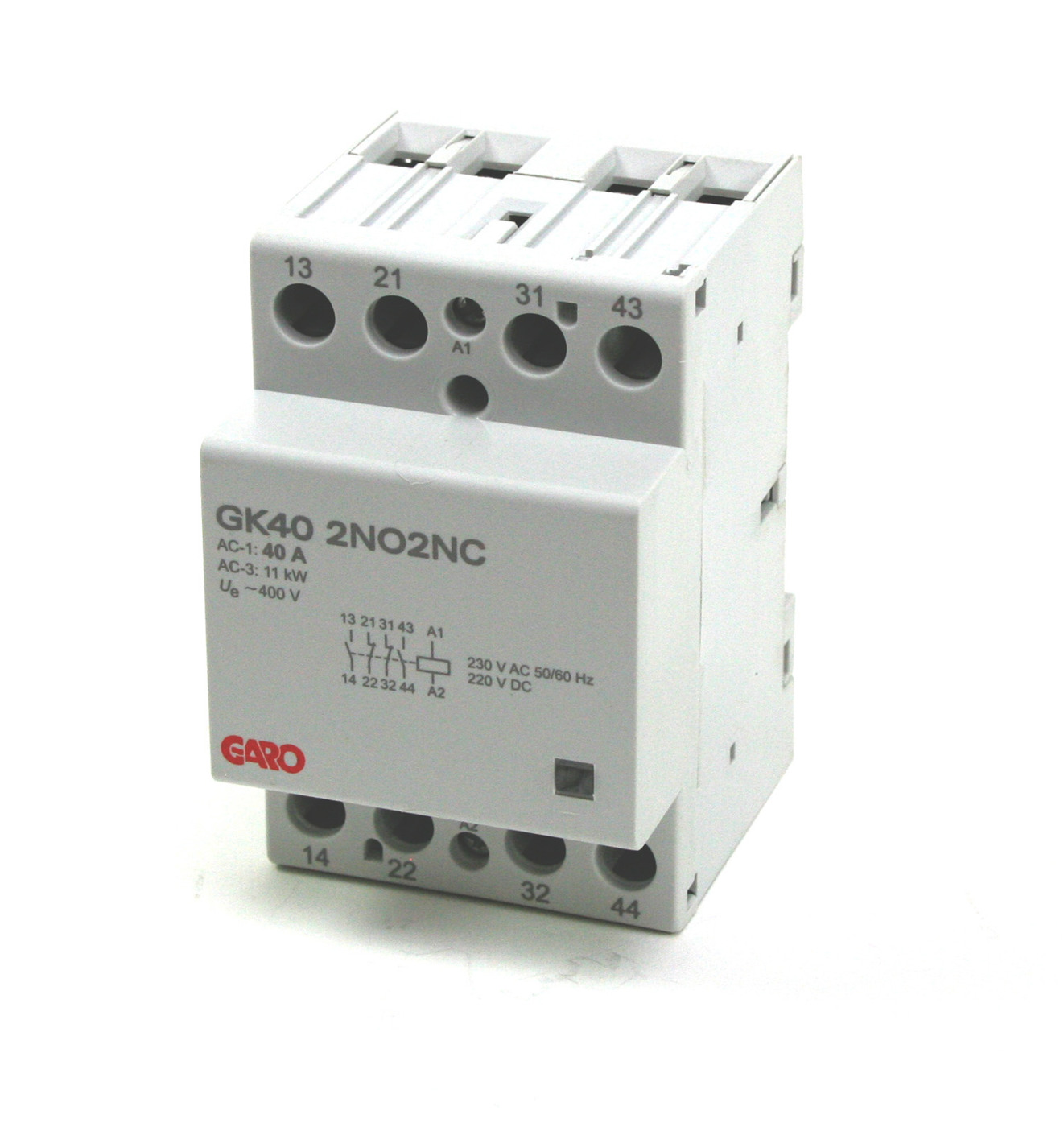

CONTACTOR 40 2NO2NC 230V 3M

Contactors 4-pol

The range includes both the closing, opening and switching contactors. Contactor 40A 2NO 2NC 230V 3 modules
E-number
3290501
Article number
351968
Support
Rated voltage [V AC] 400
Frequency [Hz] 50/60
Degree of protection [IP] 20
Colour Grey
Temperature range [C] -25...+55
Storage temperature [C] -30...+80
Package size [pcs] 1
Height [mm] 85
Depth [mm] 66
Name CONTACTOR 40 2NO2NC 230V 3M
E-number 3290501
Article number 351968
Type designation GK40 2NO2NC 230V ACDC
Rated current [A] 40
Wire flexible [mm²] 1-16
Tightening torque [Nm] 3,5
Modules [pcs] 3
Power loss [W] 4
Width [mm] 54
Netweight [kg] 0.41
Wire solid [mm²] 1-25
Power AC1 230V [kW] 8,7
Power AC1 400V [kW] 26
Power AC3 230V [kW] 2,7
Power AC3 400V [kW] 11
Contacts [pcs] 2NO2NC
Control line voltage [V] 230V ACDC

More variants of Contactors 4-pol

E-number Article number Type designation Rated current [A] Wire flexible [mm²] Tightening torque [Nm] Modules [pcs] Power loss [W] Width [mm] Netweight [kg] Wire solid [mm²] Power AC1 230V [kW] Power AC1 400V [kW] Power AC3 230V [kW] Power AC3 400V [kW] Contacts [pcs] Control line voltage [V]
CONTACTOR 32A 4NO 24V 3290773 107785 GK32 4NO 24V ACDC 32 1-6 1,2 2 2,5 36 0.26 1-10 7 21 1,3 4 4NO 24V ACDC
CONTACTOR 32A 4NO 230V 3290775 107786 GK32 4NO 230V ACDC 32 1-6 1,2 2 2,5 36 0.25 1-10 7 21 1,3 4 4NO 230V ACDC
CONTACTOR 40 4NO 12V 3M 3205627 108327 GK40 4NO 12V ACDC 40 1-16 3,5 3 54 0.36 1-25 4NO 12-230V ACDC
CONTAKTOR 24 4NO 230V 2M 3294580 3294580 GK24 4NO 230V ACDC 24 1-6 1,2 2 2,2 36 0.25 1-10 5,4 16 1,3 4 4NO 230V ACDC
CONTAKTOR 24 4NC 230V 2M 3294581 3294581 GK24 4NC 230V ACDC 24 1-6 1,2 2 2,2 36 0.26 1-10 5,4 16 1,3 4 4NC 230V ACDC
CONTAKTOR 40 4NO 230V 3M 3294584 3294584 GK40 4NO 230V ACDC 40 1-16 3,5 3 4 54 0.39 1-25 8,7 26 3,7 11 4NO 230V ACDC
CONTACTOR 63 4NO 230V 3M 3294594 3294594 GK63 4NO 230V ACDC 63 1-16 3,5 3 8 54 0.41 1-25 13,3 120 5 15 4NO 230V ACDC
CONTACTOR 40 2NO2NC 230V 3M 3290501 351968 GK40 2NO2NC 230V ACDC 40 1-16 3,5 3 4 54 0.41 1-25 8,7 26 2,7 11 2NO2NC 230V ACDC
CONTACTOR 40 4NO 24V 3M 3290502 351969 GK40 4NO 24V ACDC 40 1-16 3,5 3 4 54 0.39 1-25 8,7 26 3,7 11 4NO 24V ACDC
CONTAKTOR 24 4NO 24V 2M 3290797 352144 GK24 4NO 24V ACDC 24 1-6 1,2 2 2,2 36 0.26 1-10 5,4 16 1,3 4 4NO 24V ACDC

Accessories for Contactors 4-pol

Name E-number Article number Type designation Description
SPACER 0,5MOD 2142816 2142816 GKD Spacer 0,5 modules
AUX SWITCH CONTACTOR AUX SWITCH CONTACTOR 3290503 351970 GKN11 Auxiliary switch
