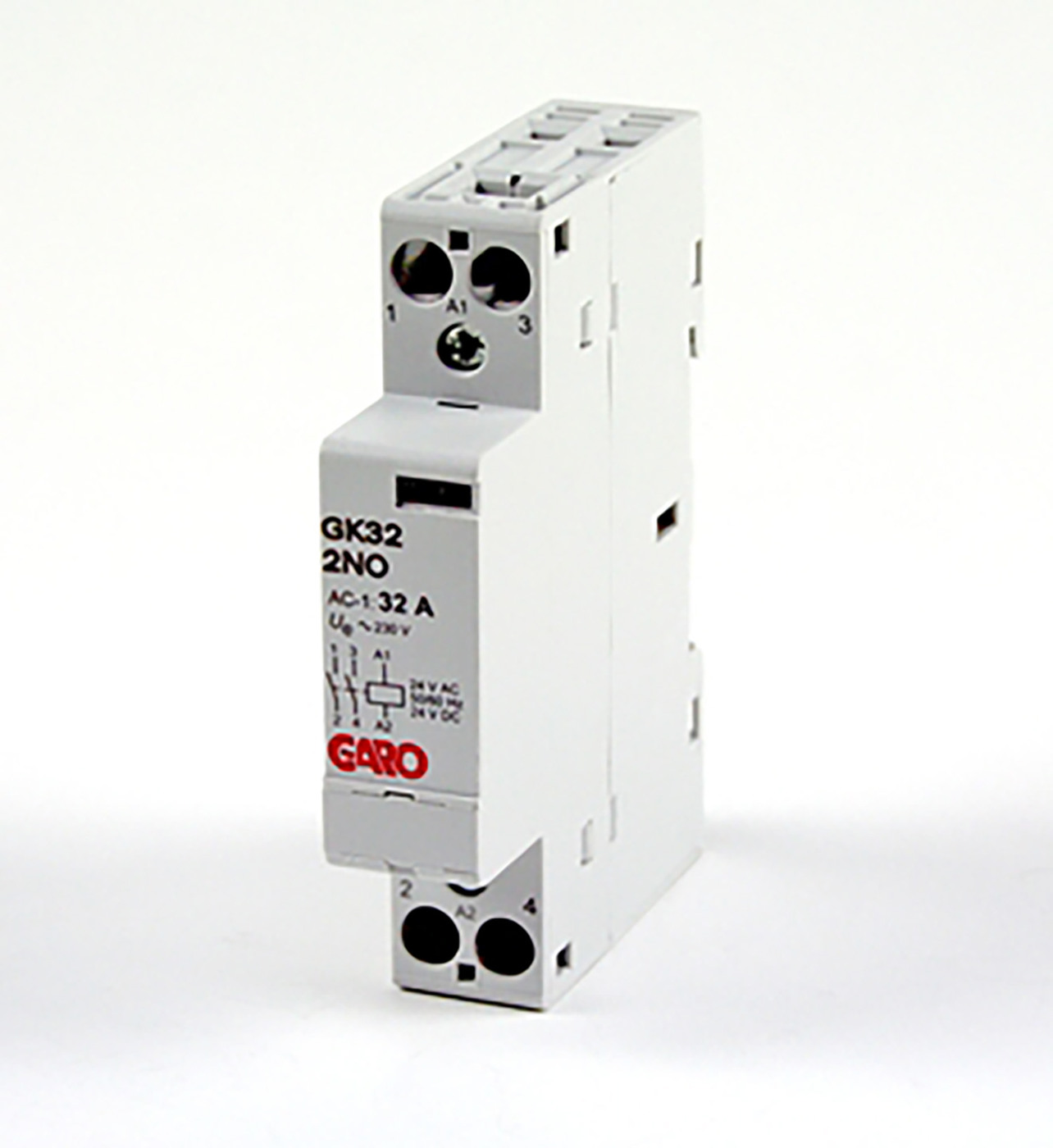

CONTACTOR 32A 2NO 24V

Contactors 2-pole

The range includes both the closing, opening and switching contactors. Contactor 32A 2NO 24V 1 modules
E-number
3290777
Article number
107787
Support
Wire flexible [mm²] 1-6
Degree of protection [IP] 20
Colour Grey
Frequency [Hz] 50/60
Rated voltage [V AC] 230
Tightening torque [Nm] 1,2
Temperature range [C] -25...+55
Storage temperature [C] -30...+80
Modules [pcs] 1
Package size [pcs] 1
Width [mm] 18
Height [mm] 85
Depth [mm] 66
Wire solid [mm²] 1-10
Name CONTACTOR 32A 2NO 24V
E-number 3290777
Article number 107787
Type designation GK32 2NO 24V ACDC
Rated current [A] 32
Power loss [W] 2,5
Netweight [kg] 0.13
Power AC1 230V [kW] 7,4
Power AC1 400V [kW] 16
Power AC3 230V [kW] 1,3
Power AC3 400V [kW] 11
Contacts [pcs] 2NO
Control line voltage [V] 24V ACDC

More variants of Contactors 2-pole

E-number Article number Type designation Rated current [A] Power loss [W] Netweight [kg] Power AC1 230V [kW] Power AC1 400V [kW] Power AC3 230V [kW] Power AC3 400V [kW] Contacts [pcs] Control line voltage [V]
CONTACTOR 32A 2NO 24V 3290777 107787 GK32 2NO 24V ACDC 32 2,5 0.13 7,4 16 1,3 11 2NO 24V ACDC
CONTACTOR 32A 2NO 230V 3290779 107788 GK32 2NO 230V ACDC 32 1,7 0.13 7,4 16 1,3 11 2NO 230V ACDC
CONTACTOR 20 2NO 12V 1M 3205634 108350 GK20 2NO 12V ACDC 20 1,7 0.13 4 1,3 2NO 12V ACDC
CONTACTOR 20 2NO 230V 1M 3294576 3294576 GK20 2NO 230V AC 20 1,7 0.13 4 1,3 2NO 230V AC
CONTACTOR 20 2NC 230V 1M 3294577 3294577 GK20 2NC 230V AC 20 1,7 0.13 4 0,75 2NC 230V AC
CONTACTOR 20 1NO1NC 230V 1M 3290500 351967 GK20 1NO1NC 230V AC 20 1,7 0.12 4 1,3/0,75 1NO1NC 230V AC
CONTACTOR 20 2NO 24V 1M 3290796 352143 GK20 2NO 24V ACDC 20 1,7 0.13 4 1,3 2NO 24V ACDC

Accessories for Contactors 2-pole

Name E-number Article number Type designation Description
SPACER 0,5MOD 2142816 2142816 GKD Spacer 0,5 modules
AUX SWITCH CONTACTOR AUX SWITCH CONTACTOR 3290503 351970 GKN11 Auxiliary switch
