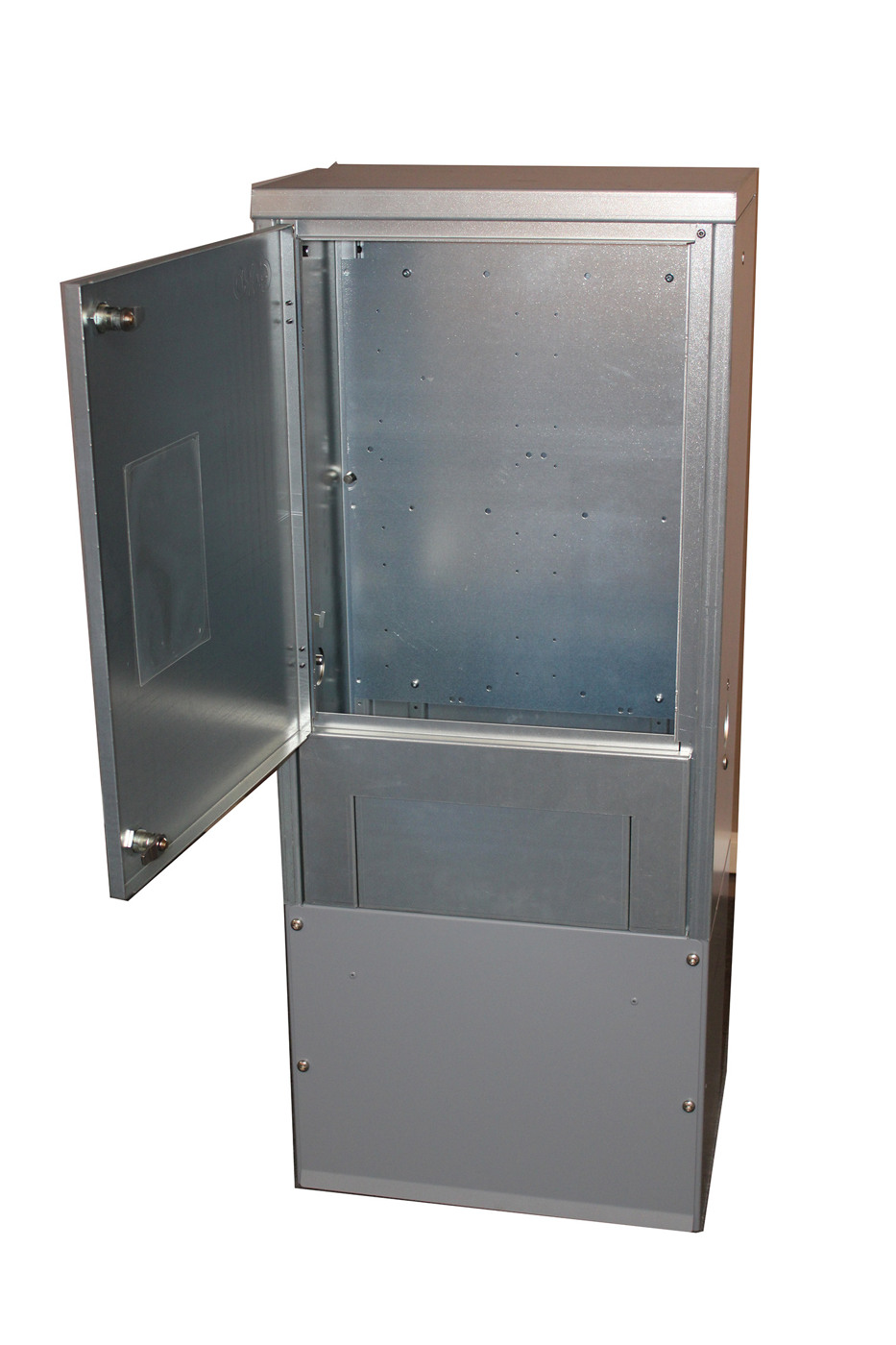

CABLE CABINET TEMP POW 2 MET

Cable cabinet mounting plate

Cable cabinet with mounting plate for own installation of furnishings. Cable cabinet temporary power with mounting plate.
E-number
0736042
Article number
353914
Support
Degree of protection [IP] 34D
Colour Grey
Standard EN 61439-5
Package size [pcs] 1
Materials Magnelis
Impact strength IK10
Mountingplate Yes
Name CABLE CABINET TEMP POW 2 MET
E-number 0736042
Article number 353914
Type designation GKS-2MPT
Width [mm] 522
Height [mm] 970
Depth [mm] 320
Netweight [kg] 61

More variants of Cable cabinet mounting plate

E-number Article number Type designation Width [mm] Height [mm] Depth [mm] Netweight [kg]
CABLE CABINET EMPTY 1 MET 353780 GFS-1MP 372 1140 250 48.50
CABLE CABINET EMPTY 2 MET 353781 GFS-2MP 522 1140 250 57
CABLE CABINET TEMP POW 2 MET 0736042 353914 GKS-2MPT 522 970 320 61

Accessories for Cable cabinet mounting plate

Name E-number Article number Type designation Description
SNOWMARKER BAR 1250MM SNOWMARKER BAR 1250MM 0731403 353850 Snow marker bar 1250mm complete with screw for attachment
LID TEMPORARY POWER 2 522MM LID TEMPORARY POWER 2 522MM 0731404 353851 Door for withdrawal of temporary electricity
GROUNDPLATE 2 522MM GROUNDPLATE 2 522MM 0731405 353860 Ground plate for leg support 522mm
ROCKMOUNT ROCKMOUNT 0731407 353864 Mounting bracket for mounting cabinets in rock
WALLSUPPORT 250MM WALLSUPPORT 250MM 0731408 353866 Wall support 250mm for support against the facade with attachment to the side of the cabinet
GROUNDPLATE 372MM GROUNDPLATE 372MM 0731406 353894 Ground plate for leg support 372mm
