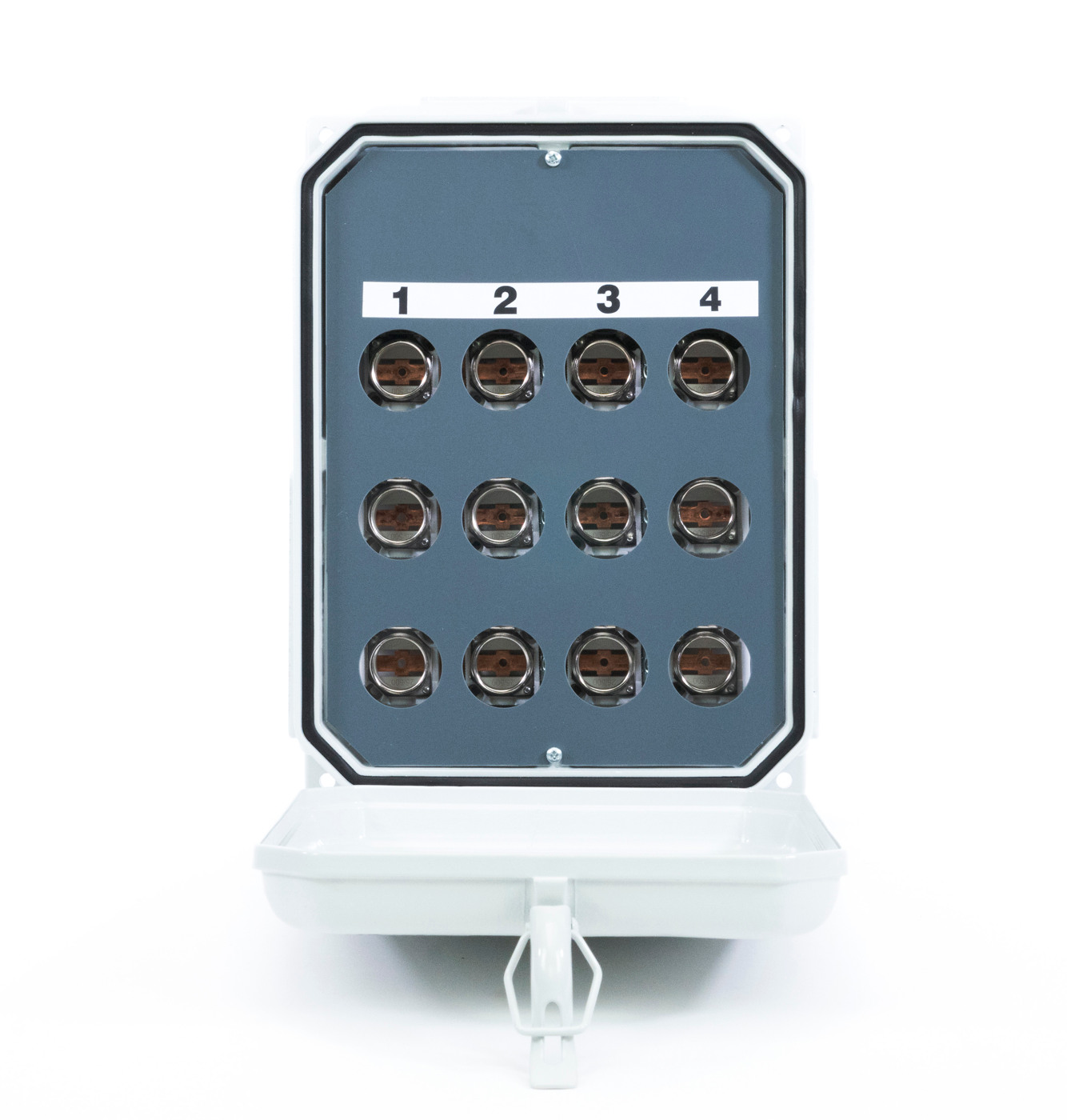

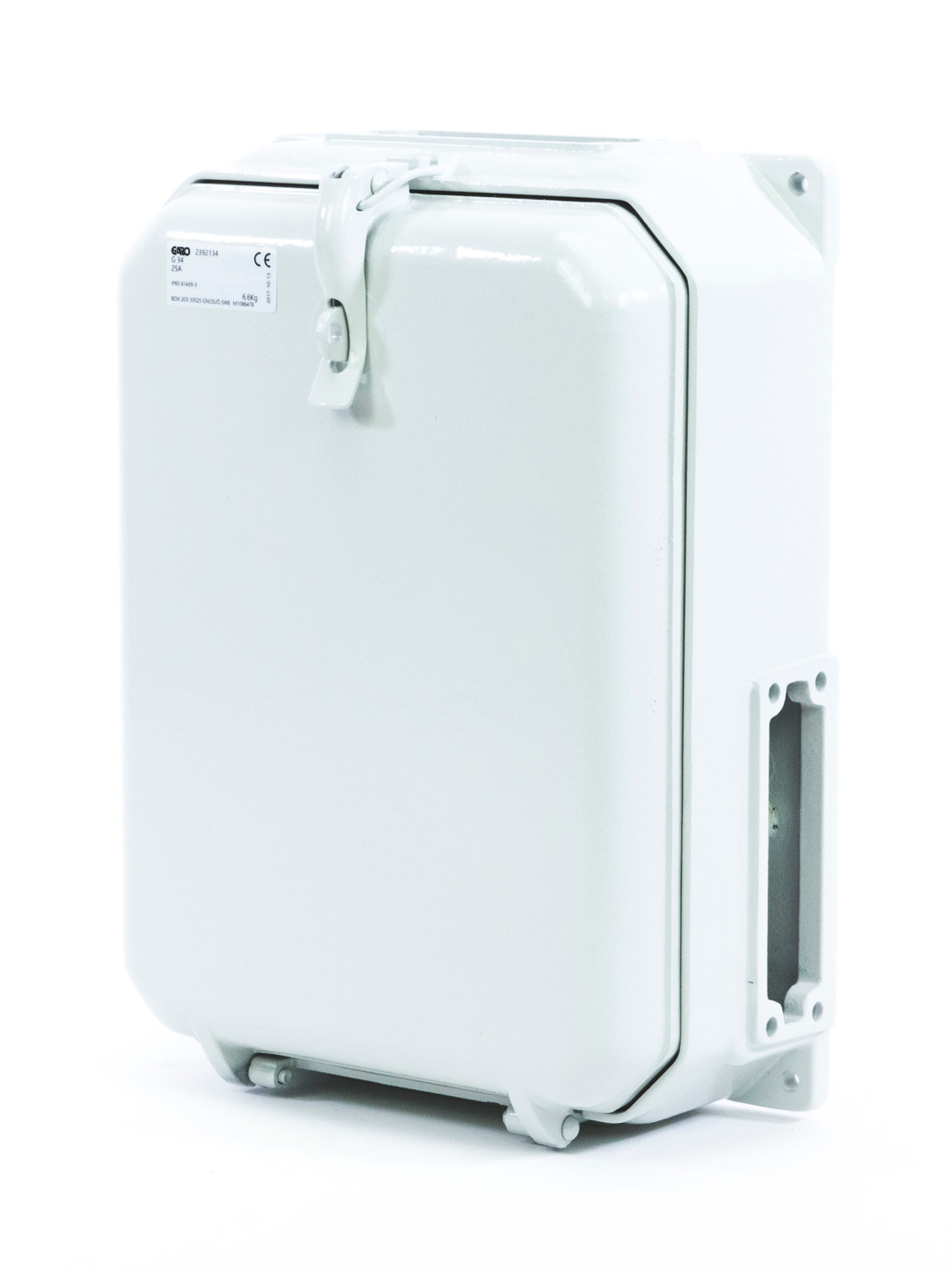

Switchboards for fuse base DZ

1 and 3-pole fuse protected groups positioned on one row for 3-phase connection. Equipped with disconnectable neutral rail and earth conductor rail. Switchboard 25A 4groups 3-pole fuse base alloy
E-number
2392134
Article number
2392134
Support
Degree of protection [IP] 65
Colour RAL7035 Grey
Standard EN 61439-3
Depth [mm] 120
Materials Light metal
Name SWITCHBOARD 25A 4/3 A
E-number 2392134
Article number 2392134
Type designation G 34
Rated current [A] 25
Width [mm] 260
Height [mm] 355
Netweight [kg] 6.20
Fuse size DII
No.of poles [pcs] 4/3

More variants of Switchboards for fuse base DZ

E-number Article number Type designation Rated current [A] Width [mm] Height [mm] Netweight [kg] Fuse size No.of poles [pcs]
SWITCHBOARD 25A 3/1 A 2392013 2392013 G 13-3 25 220 210 3.20 DII 3/1
SWITCHBOARD 25A 3/3 A 2392133 2392133 G 33 25 210 355 5.70 DII 3/3
SWITCHBOARD 25A 4/3 A 2392134 2392134 G 34 25 260 355 6.20 DII 4/3
SWITCHBOARD 25A 6/3 A 2392136 2392136 G 36 25 360 355 9.70 DII 6/3
SWITCHBOARD 63A 2/3 A 2392152 2392152 GK 32 63 210 355 5.60 DIII 2/3
SWITCHBOARD 63A 3/3 A 2392153 2392153 GK 33 63 260 355 6.70 DIII 3/3
SWITCHBOARD 63A 4/3 A 2392154 2392154 GK 34 63 360 355 9.20 DIII 4/3
