Load break enclosures

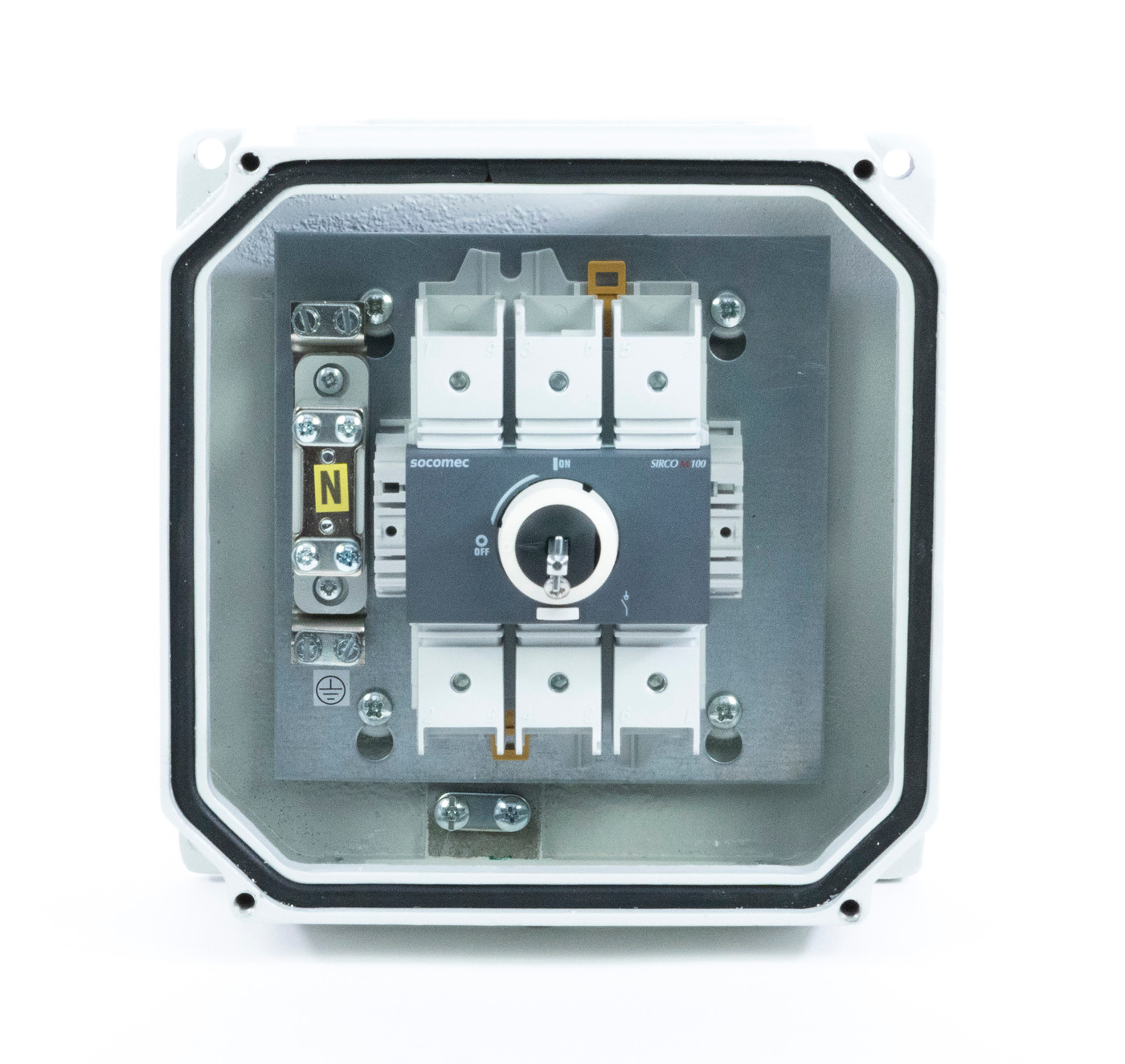

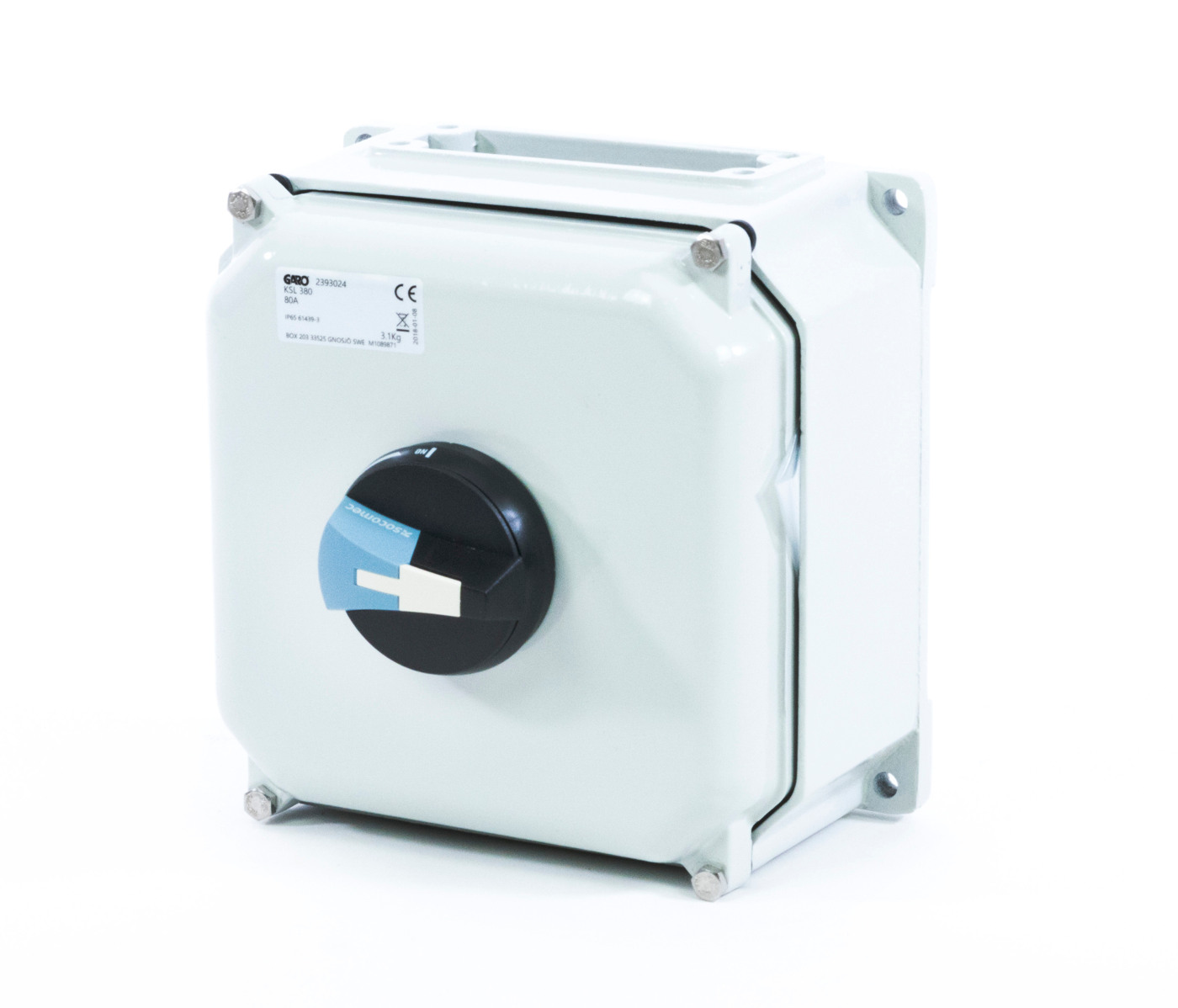

Switches are 3-pole and front-operated. Equipped with neutral terminal and earth conductor terminal. It is also possible to lock the operating mechanism with a padlock in the OFF position. Connectable conductor cross-sections and breaking values. Load breaker box KSL 80A 3phase Aloy
E-number
2393024
Article number
2393024
Degree of protection [IP] 65
Colour RAL7035 Grey
Standard EN 61439-3
Materials Light metal
No.of poles [pcs] 1x3
Name LOAD BREAK ENCL -KSL 80A 1X3 A
E-number 2393024
Article number 2393024
Type designation KSL 380
Rated current [A] 80
Width [mm] 206
Height [mm] 210
Depth [mm] 155
Netweight [kg] 3.10
Switch [A] 3x80

More variants of Load break enclosures

E-number Article number Type designation Rated current [A] Width [mm] Height [mm] Depth [mm] Netweight [kg] Switch [A]
LOAD BREAK ENCL -KS 80A 1X3 A 2393004 2393004 KS 380 80 200 185 120 2.70 3x80
LOAD BREAK ENCL -KSL 80A 1X3 A 2393024 2393024 KSL 380 80 206 210 155 3.10 3x80
LOAD BREAK ENCL -KSL 125A 1X3 A 2393025 2393025 KSL 3125 125 206 330 155 5.60 3x125
LOAD BREAK ENCL -KSL 160A l/l 1X3 A 2393026 2393026 KSL3160 l/l 160 206 330 155 5.60 3x160
LOAD BREAK ENCL -KSL 160A ll/ll 1X3 A 2393027 2393027 KSL 3160ll/ll 160 300 315 180 16.50 3x160

Accessories for Load break enclosures

Name E-number Article number Type designation Description
SWITCH KS380 SWITCH KS380 2394662 2394662 KU 380 Main switch 3-modules 80A 3-poles
