Kapsling tid & tempstyrt med mät bil

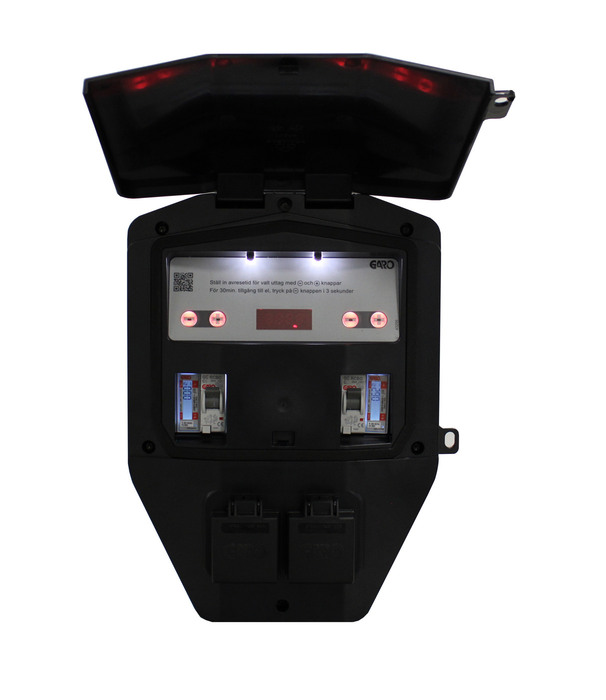

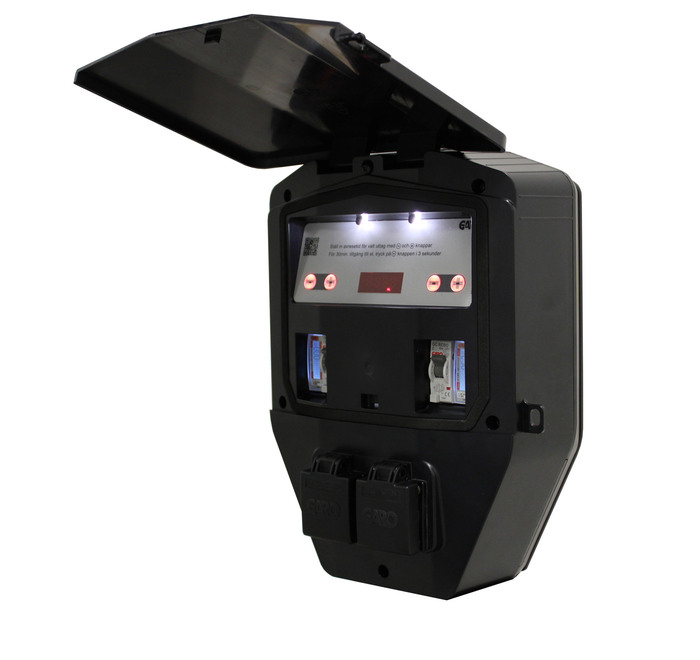

Kapsling tid & tempstyrt med mät bil Engine heater time and temperature control 6A with RCCB and meter
E-number
2445647
Article number
354341
Support
Materials Plastic
Degree of protection [IP] 44
Colour Black
Standard IEC 61439-7
Package size [pcs] 1
Netweight [kg] 2.40
Width [mm] 240
Height [mm] 340
Depth [mm] 150
Rated voltage [V AC] 230/400
Short-circuit current [kA] 6
Schuko [pcs] 2
Frequency [Hz] 50
Mounting method Wall mounting
Impact strength IK10
Temperature range [C] -25C...+40C
Locks Yes
Meter Yes
RAL-nummer RAL9011
Name ENGINE HEATER ENTITY HEAT 6M
E-number 2445647
Article number 354341
Type designation EH 206-2 M
Rated current [A] 6
RCBO 2pcs 6A/2P

More variants of Kapsling tid & tempstyrt med mät bil

E-number Article number Type designation Rated current [A] RCBO
ENGINE HEATER ENTITY HEAT 6M 2445647 354341 EH 206-2 M 6 2pcs 6A/2P
ENGINE HEATER ENTITY HEAT 10M 2445648 354438 EH 210-2 M 10 2pcs 10A/2P
