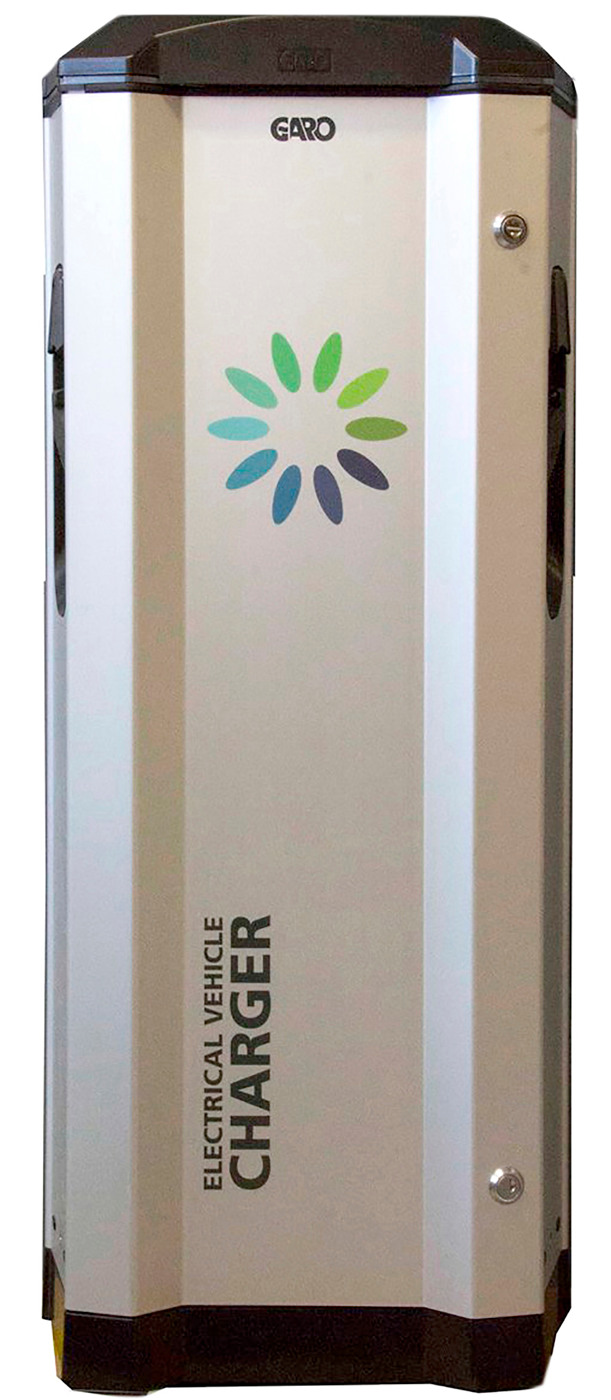

Not connecable compact- LS4
Public charging station compact for several different mounting methods with integrated fuses and RCCB for each socket. Light strip indication is located at the top of the station so it is possible to see charge status on distance. Designed for operation without being connected to operator services. According to current international standard IEC 60364-7-722 when charging electric cars, there are requirements for Type B RCCB or Type A RCCB in combination with DC monitoring that breaks at 6mA. Chargestation compact 2EV-outlet 3,7kW without measuring RCCB-B.
| Materials | Aluminium |
|---|---|
| Colour | Grey |
| Rated voltage [V AC] | 230/400 |
| Package size [pcs] | 1 |
| Standard | EN 61851-1 IEC 61439-7 AEVCS |
| Netweight [kg] | 22.50 |
| Width [mm] | 375 |
| Height [mm] | 900 |
| Depth [mm] | 208 |
| Frequency [Hz] | 50 |
| Temperature range [C] | -25...+40 |
| Mounting method | Wall mounting |
| Degree of protection [IP] | 44 |
| Storage temperature [C] | -40...+50 |
| RFID | No |
| Impact strength | IK10 |
| Communication | No |
| RCCB/RCBO | RCCB type B |
| Name | CHARGER 2EV 3,7 WO MET RCCB-B C |
|---|---|
| Article number | 353586 |
| Rated current [A] | 16 |
| AC/DC output | Type2 outlet |
| AC/DC output | Type2 outlet |
| Phases | 1 |
| Meter | No |
| Power outlet [kW] | 3,7 |
