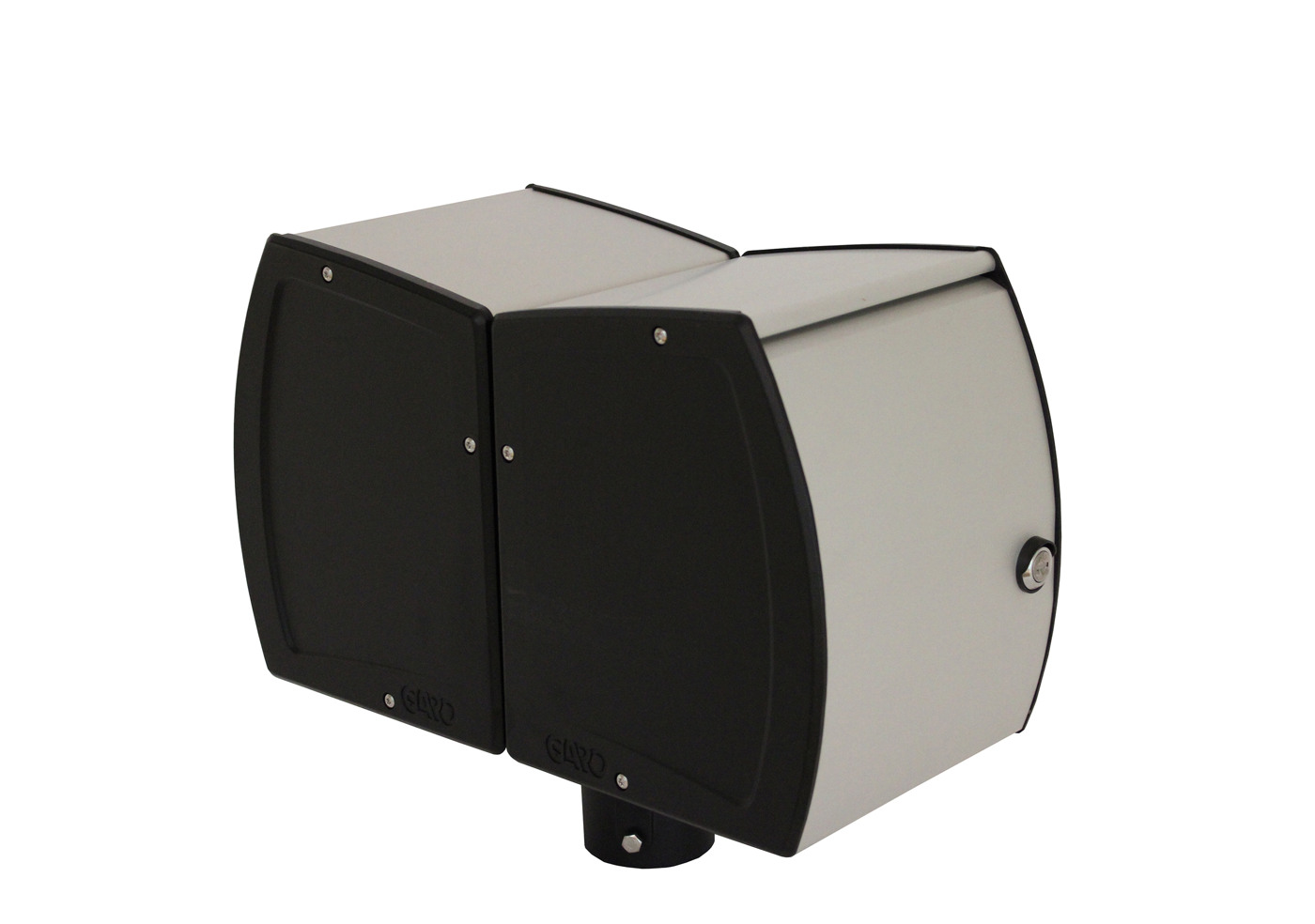

Complete enclosure double
Complete enclosure with insert for temporary connection of camping vehicles supplied from 32A socket with the possibility of continuation. Camping outlet for a temporary position 3x10A
E-number
2445610
2445610
Article number
353945
353945
| Type designation | CTP 310 |
|---|---|
| Materials | Aluminium |
| Colour | Grey |
| Standard | EN 61439-3 |
| Netweight [kg] | 6.50 |
| Width [mm] | 205 |
| Height [mm] | 255 |
| Depth [mm] | 400 |
| Rated current [A] | 32 |
| Degree of protection [IP] | 44 |
| Frequency [Hz] | 50 |
| Flanged socket outlet | 3 pcs 16A 2P+E 230V |
| Rated voltage [V AC] | 230/400 |
| Short-circuit current [kA] | 10 |
| RCBO | 3pcs 10A |
| Response time [min] | Continuous |
| Flanged socket outlet | 1 pcs 32A 3P+N+E 230/400V |
| Type of lock | Equal locks |
| Meter | No |
| Flanged plug | 1 pcs 32A 3P+N+E 230/400V |
| Name | CAMPING TEMPORARY 32A 3OUT |
|---|---|
| E-number | 2445610 |
| Article number | 353945 |
