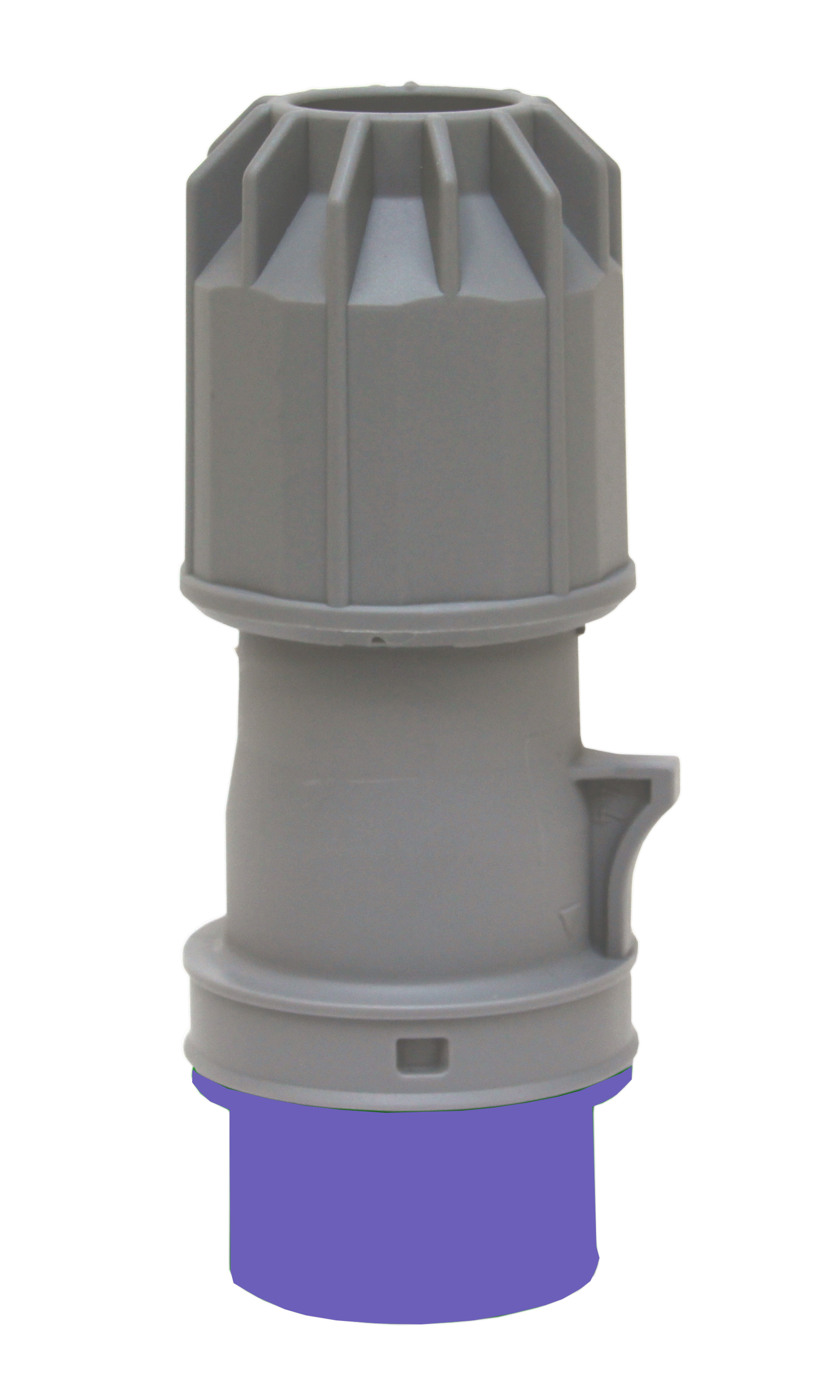

PLUGS LOW-VOLTAGE 2P 16A

Plugs low voltage 16A IP44

Plugs and sockets for low voltages of <50V with rated currents of 16A and 32A. The frequency and voltage are determined by the location of the sub-alignment guide on the socket. The main alignment guide/slot width, which is always at the 6 o'clock position, is determined by the current: 16A (wide version) and 32A (narrow version) respectively. This is to prevent a 32A plug with a narrow guide from being connected to a 16A socket with a wide slot. Plugs low-voltage 2-poles 16A
E-number
2425680
Article number
2425680
Support
Wire flexible [mm²] 4-10
Rated current [A] 16
Degree of protection [IP] 44
Standard Class 1 EN 60044-8
Width [mm] 51
Height [mm] 135
Depth [mm] 48
Materials Plastic
Function Low voltage
Name PLUGS LOW-VOLTAGE 2P 16A
E-number 2425680
Article number 2425680
Type designation PK 216 S
Colour Purple
Frequency [Hz] 50/60
Rated voltage [V AC] 20-25
Netweight [kg] 0.14
No.of Poles [pcs] 2P
RAL-nummer RAL4005

More variants of Plugs low voltage 16A IP44

E-number Article number Type designation Colour Frequency [Hz] Rated voltage [V AC] Netweight [kg] No.of Poles [pcs] Position of earth [h] RAL-nummer
PLUGS LOW-VOLTAGE 2P 16A 2425680 2425680 PK 216 S Purple 50/60 20-25 0.14 2P RAL4005
PLUGS LOW-VOLTAGE 2P 16A 10h 2425681 2425681 PK 216-10 S Grey DC 20-25,40-50 0.14 2P 10 RAL7046
PLUGS LOW-VOLTAGE 2P 16A 12h 2425682 2425682 PK 216-12 S White 50/60 40-50 0.14 2P 12 RAL9016
PLUGS LOW-VOLTAGE 3P 16A 2425683 2425683 PK 316 S Purple 50/60 20-25 0.15 3P RAL4005
PLUGS LOW-VOLTAGE 3P 16A 4h 2425684 2425684 PK 316-4 S Green 100/200 40-50 0.15 3P 4 RAL6010
PLUGS LOW-VOLTAGE 3P 16A 12h 2425685 2425685 PK 316-12 S White 50/60 40-50 0.15 3P 12 RAL9016
