INTERLOCKED SOCKET 3P 32A 4h

Interlocked sockets 32A IP44

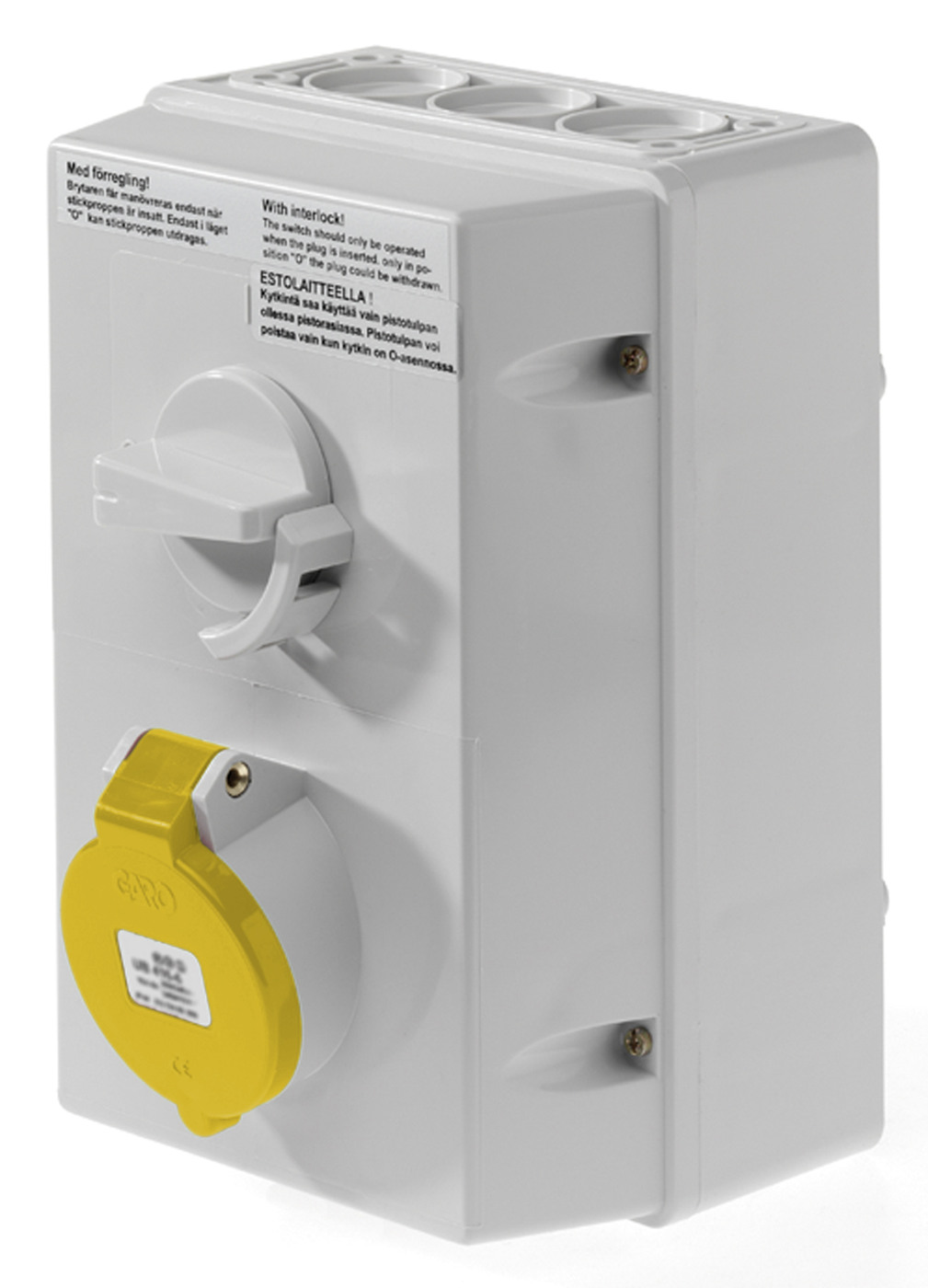

GARO’s interlocked socket for wall mounting with one IEC/CEE socket on the front panel is lockable in open and closed positions, ample connection area with FL13 at the top and bottom combined with knockouts. Supplied with glands adapted to each box. Cable entry options from both the top and bottom. Interblocked socket 3-poles 32A 4h
Article number
2425762
Support
Rated current [A] 32
Degree of protection [IP] 44
Wire flexible [mm²] Max 35
Standard EN 61439-4
Width [mm] 160
Depth [mm] 220
Materials Plastic
Earth terminal [mm²] 10
Knockouts Down[Ø/pcs] 3x32
Knockouts up[Ø/pcs] 3x32
Name INTERLOCKED SOCKET 3P 32A 4h
Article number 2425762
Type designation UB 232-4 S
No.of Poles [pcs] 3/2P+E
Rated voltage [V AC] 100-130
Frequency [Hz] 50/60
Colour Yellow
Height [mm] 151
Netweight [kg] 1.10
Position of earth [h] 4

More variants of Interlocked sockets 32A IP44

E-number Article number Type designation No.of Poles [pcs] Rated voltage [V AC] Frequency [Hz] Colour Height [mm] Netweight [kg] Position of earth [h]
INTERLOCKED SOCKET 3P 32A 6h 2425763 2425763 UB 232-6 S 3/2P+E 200-250 50/60 Blue 151 1.10 6
INTERLOCKED SOCKET 4P 32A 6h 2425770 2425770 UB 332-6 S 4/3P+E 400 50/60 Red 151 1.12 6
INTERLOCKED SOCKET 5P 32A 6h 2425777 2425777 UB 432-6 S 5/3PN+E 230/400 50/60 Red 153 1.15 6

Accessories for Interlocked sockets 32A IP44

Name E-number Article number Type designation Description
AUX SWITCH FOR UB AUX SWITCH FOR UB 3155360 3155360 HLPK KU/KUE Auxiliary switches
