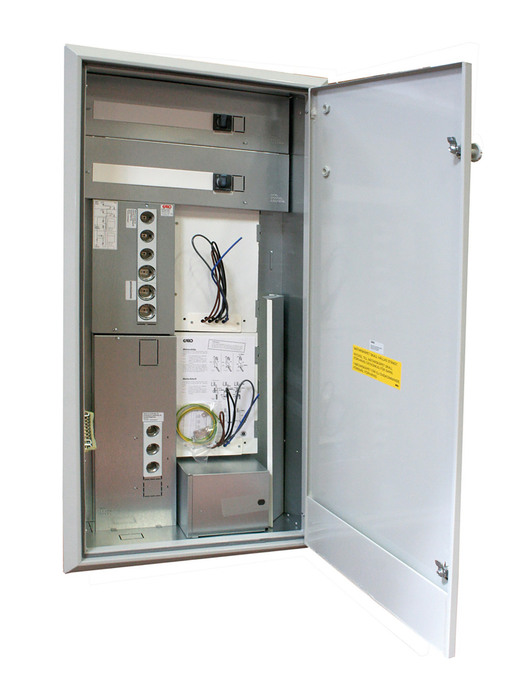

MET CAB W PROT REC 25A 2PL

Meter cabinets weatherprotected

Metal meter cabinets for recess mounting, for extra watertightness. Supplemented with an overhanging strip running water from above. The cabinets are tested and approved to meet watertightness in storm driven rain up to 30m/s, which corresponds to a heavy storm. Tested and approved to meet a rating up to 600 Pa, which corresponds to the classification 9A according to standard EN 1027, Windows and doors. Watertightness. Also tested according Meter cabinet Swedish Standard SS 430 01 10 (where a rating of only 300 Pa is required). The cabinet is fitted with silicone for extra watertightness. Meter cabinet recessed water protected 25A 2places.
E-number
2270093
Article number
2270093
Support
Rated voltage [V AC] 230/400
Frequency [Hz] 50
Colour RAL7035 Grey
Standard SS 430 01 10
Depth [mm] 205
Materials Hot dip galvanized sheet metal
Location Recessed
Short-circuit current [kA] 25
Prepared module space 4
Possibility to lock Yes
Incoming splitter term. [mm²] Al/Cu 50
Outgoing connection Cu 16
Täthetsklass [Pa] 600
Recessed depth [mm] 205
Name MET CAB W PROT REC 25A 2PL
E-number 2270093
Article number 2270093
Type designation GIM 2-25-T
Rated current [A] 63
Width [mm] 632
Height [mm] 1325
Prepared module space 4
Recessed width [mm] 542
Recessed height [mm] 1245

More variants of Meter cabinets weatherprotected

E-number Article number Type designation Rated current [A] Width [mm] Height [mm] Netweight [kg] Prepared module space Recessed width [mm] Recessed height [mm]
MET CAB W PROT REC 25A 1PL 2270091 2270091 GIM 1-25-T 25 632 795 21 4 542 710
MET CAB W PROT REC 63A 1PL 2270092 2270092 GIM 1-63-T 63 632 795 21 4 542 710
MET CAB W PROT REC 25A 2PL 2270093 2270093 GIM 2-25-T 63 632 1325 4 542 1245
MET CAB W PROT REC L25A 1PL 2270094 2270094 GIM-L 25-T 25 500 689 17 4 425 640
MET CAB W PROT REC L63A 1PL 2270095 2270095 GIM-L 63-T 63 500 689 4 425 640
