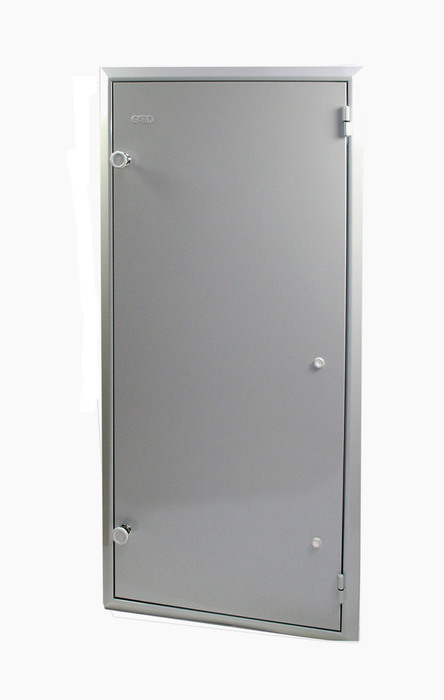

• MET CAB REC W WOOD BOARD T2 - 1

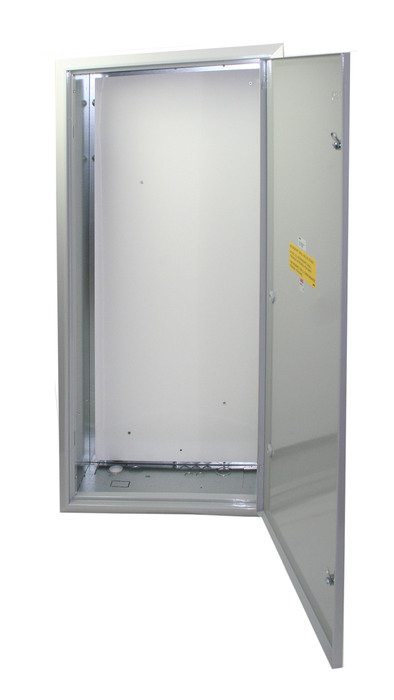

  • MET CAB REC W WOOD BOARD T2 - 2

Meter cabinets empty

Meter cabinets empty Meter cabinet recessed with wood board 500x1200mm.
E-number
2270026
Article number
2270026
Support
Rated current [A] 63
Rated voltage [V AC] 230
Frequency [Hz] 50
Degree of protection [IP] 23
Colour RAL7035 Grey
Standard SS 430 01 10
Depth [mm] 205
Materials Hot dip galvanized sheet metal
Location Recessed
Possibility to lock Yes
Recessed depth [mm] 190
Name MET CAB REC W WOOD BOARD T2
E-number 2270026
Article number 2270026
Type designation GIM-T2
Width [mm] 632
Height [mm] 1325
Netweight [kg] 18
Woodplate WxH [mm] 500x1200
Recessed width [mm] 542
Recessed height [mm] 1245

More variants of Meter cabinets empty

E-number Article number Type designation Width [mm] Height [mm] Netweight [kg] Woodplate WxH [mm] Recessed width [mm] Recessed height [mm]
MET CAB REC W WOOD BOARD T1 2270025 2270025 GIM-T1 632 795 15 500x670 542 710
MET CAB REC W WOOD BOARD T2 2270026 2270026 GIM-T2 632 1325 18 500x1200 542 1245
MET CAB REC W WOOD BOARD LT 2270035 2270035 GIM-L-T 500 689 10 405x595 425 640

Accessories for Meter cabinets empty

Name E-number Article number Type designation Description
N TERMINAL 7 N TERMINAL 7 2178171 108471 NP7 Neutral plint 7 blue for DIN mounting
TERMINAL PE7 G TERMINAL PE7 G 2178172 108472 JP7 Terminal PE7 Green
LOCK INCL SPRING LOCK INCL SPRING 1646610 1646610 RT65 Lock including retainingspring
LOCKER KEY LOCKER KEY 1646612 1646612 RN Locker key.
THREE EDGE KEY THREE EDGE KEY 1646614 1646614 PG 51 Three edge key
MAIN SW MODULAR 3P 40A MAIN SW MODULAR 3P 40A 2142854 2142854 HB 340 Main switch modular 40A 3-pole
MAIN SW MODULAR 3P 80A MAIN SW MODULAR 3P 80A 2142856 2142856 HB 380 Main switch modular 80A 3-pole
CHANGEOVER 80A 4P CHANGEOVER 80A 4P 2142877 2142877 OMK 4P 80A Changeover I-O-II 4poles 80A
FUSE BASE Dll 1P FUSE BASE Dll 1P 2260420 2260420 DII Fuse base DII 1 poles 25A 50mm
TERMINALS N+PE 3X16+6 TERMINALS N+PE 3X16+6 2270618 2270618 NJP4 Terminals N+PE 3X16+6
POTENT TERM MET CAB POTENT TERM MET CAB 2270620 2270620 PUS Potential terminal fits metal cabinet
TERMINAL BLOCK 595 TERMINAL BLOCK 595 2270622 2270622 KACL 595 Terminal block 595
TBS AL/CU CONNECTION SET TBS AL/CU CONNECTION SET 2270628 2270628 TBS Connectionset TBS Al/Cu
SURGE PROTEC PACKAGE SURGE PROTEC PACKAGE 2270637 2270637 PTT1 Overvoltage protection in finished package solution specially designed for urban areas, wiring and installation components are also included in the kit.
SURGE PROTEC PACKAGE SURGE PROTEC PACKAGE 2270638 2270638 PLD1 Overvoltage protection in finished package solution specially designed for urban areas, wiring and installation components are also included in the kit.
CONSTRUCTION KIT CONSTRUCTION KIT 2270641 2270641 BK 416 Build Kits, products adapted for the power supply of equipment during the construction time of a facility, where there is access to meter cabinets.
SEALABLE HOOD PHlll-lll SEALABLE HOOD PHlll-lll 2270644 2270644 PH II-III Sealable hood PHII-III
SURGE PROTEC PACKAGE SURGE PROTEC PACKAGE 2270647 2270647 PEK1 Overvoltage protection in finished package solution specially designed for urban areas, wiring and installation components are also included in the kit.
CONVERSION KIT 25-63A CONVERSION KIT 25-63A 2270649 2270649 OBS 63 Conversion kit 25-63A
BLADE FUSES GIM GUM BLADE FUSES GIM GUM 2270650 2270650 OSK Blade fuses for GIM/GUM
TELE MEDIA BOX TELE MEDIA BOX 2270685 2270685 TELE-M Tele media box
LOCK TELEBOX LLT 1 LOCK TELEBOX LLT 1 2270688 2270688 LLT1 Lock for Telebox.
TELEBOX TELEBOX 2270691 2270691 TELE-D Telebox
FUSE SEALING II FUSE SEALING II 2270888 2270888 SH II Fuse sealing II
WEATHER PROT KIT GIM1 WEATHER PROT KIT GIM1 2270097 351604 DRT-GIM-1 Seal kit for GIM-1.
WEATHER PROT KIT GIM2 WEATHER PROT KIT GIM2 2270098 351605 DRT-GIM-2 Seal kit for GIM-2.
KIT PADLOCK M CAB KIT PADLOCK M CAB 2200473 352150 LS-H Lock set for padlock that fits meter cabinets (padlocks not included).
