Metal cabinets surface mounting NUML

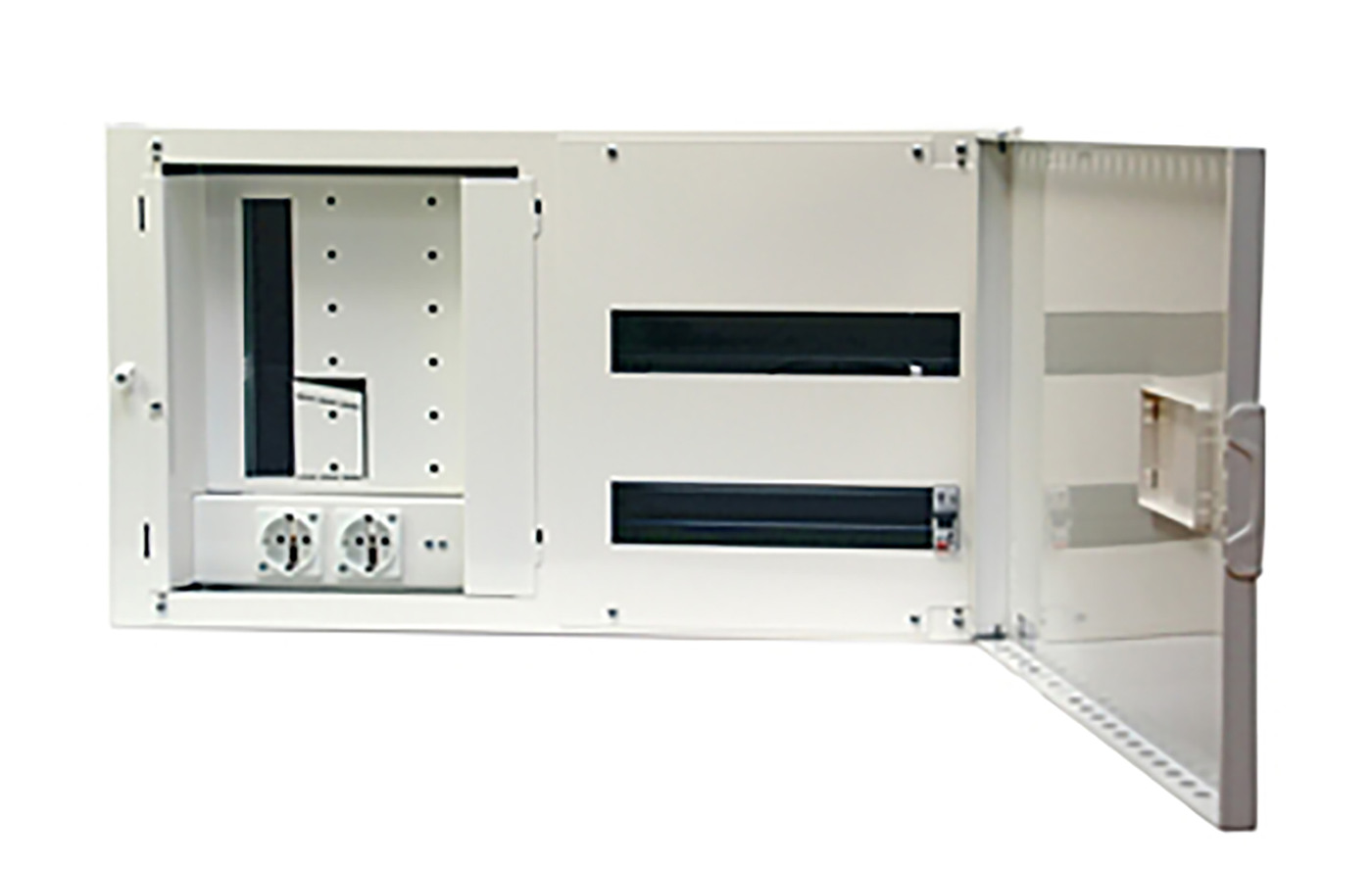

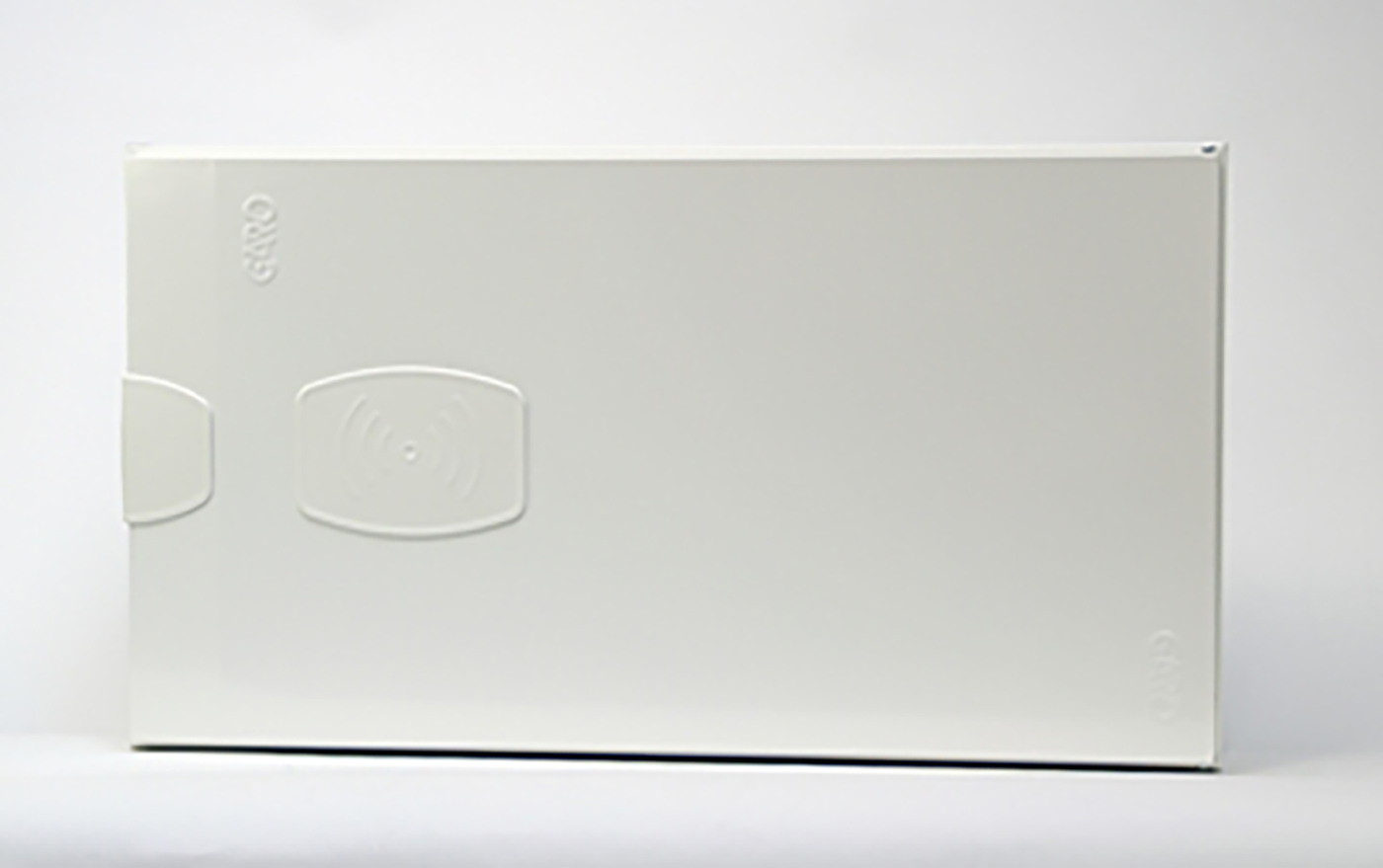

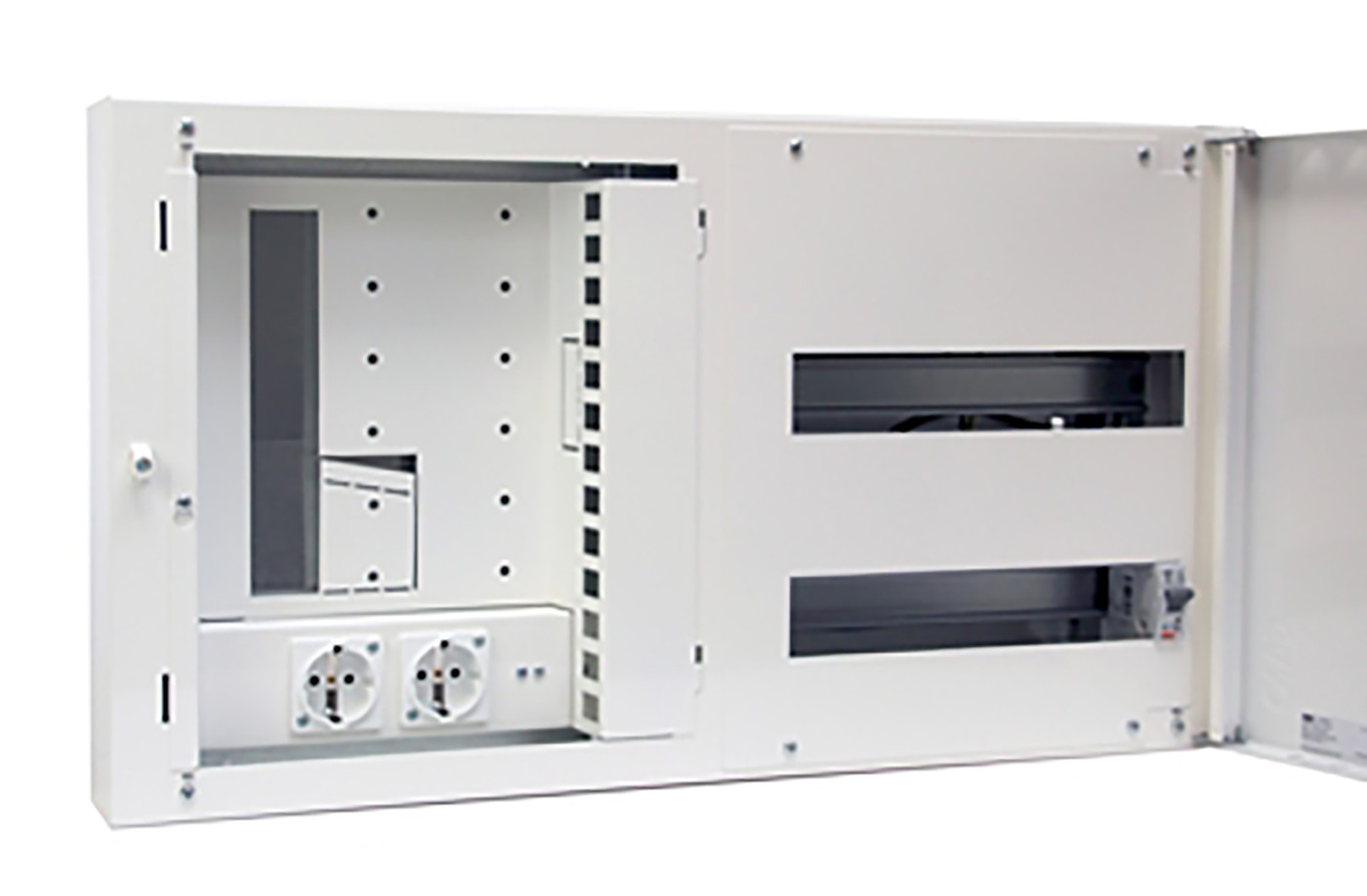

Metal cabinets for surface mounting, which are a combination of DIN and media metal cabinets for surface mounting. The media section is located to the right or left in the cabinet. The cabinet is supplied with a 10A 1-pole miniature circuit breaker to protect the wall sockets. Slots for media boxes. Wifi window to secure that wifisignal comes out. Metal cabinet surfacemounting combi 2rows 28modules mediapart left
E-number
2200516
Article number
356093
Rated current [A] 40
Rated voltage [V AC] 400
Degree of protection [IP] 30
Colour RAL9010 White
Modules [pcs] 28
Standard 61439-3
Width [mm] 665
Height [mm] 370
Depth [mm] 110
Materials Sheet metal
Location Surface
Connection PE [pcs] [mm²] 16
Connection N [pcs] 17
Further feeding [A] Vidarematning 63
Schuko [pcs] 2
RJ45 type Keystone
RJ45 [pcs] 13
Name MET CAB SURF 2R 28M LE
E-number 2200516
Article number 356093
Type designation NUML 28-2 KMV
Netweight [kg] 8.05
Lockation Media Media left

More variants of Metal cabinets surface mounting NUML

E-number Article number Type designation Netweight [kg] Lockation Media
MET CAB SURF 2R 28M RI 2200515 356092 NUML 28-2 KMH 8.30 Media right
MET CAB SURF 2R 28M LE 2200516 356093 NUML 28-2 KMV 8.05 Media left
